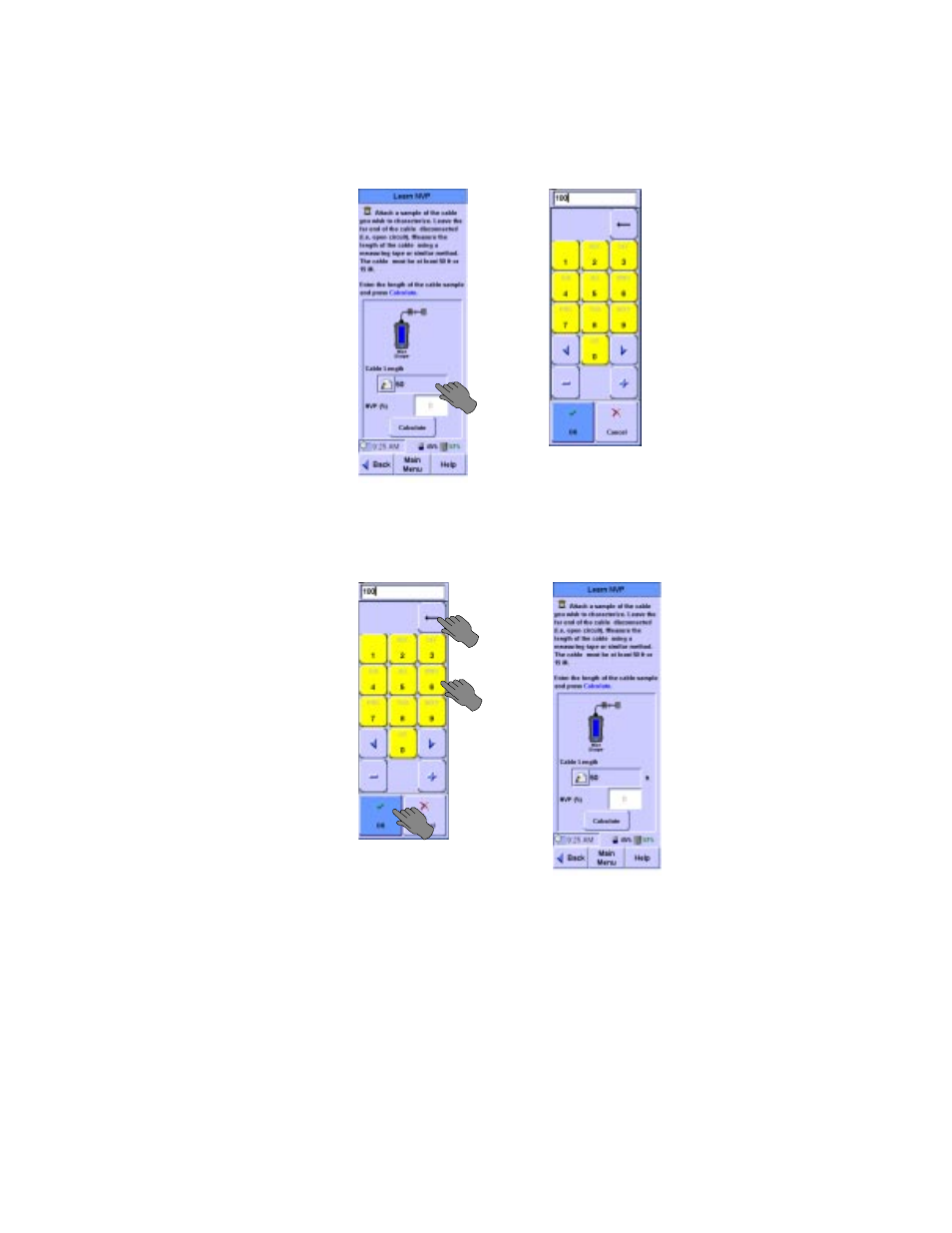

Press the Cable Length field. The numeric keyboard opens.
5
Press the backspace arrow to erase any value in the number field,
then enter the length of the cable sample, in or meters. Press OK. The
keyboard closes, and the Learn NVP screen displays new number in
the Cable Length field.
6
Press Calculate. The FrameScope calculates the NVP of the sample
cable, and displays it in the NVP field.
Measuring the Cable Length
The FrameScope 350 can measure the length of an attached
cable if the cable type is in its database.
To measure the length of a cable:
1
Connect the FrameScope to the cable. Do not attach the DualRemote.
