Network Testing with the FrameScope 350 2
Locating a Hub Port with Blink Port
Agilent FrameScope 350 User’s Manual 45
Locating a Hub Port with Blink Port
You can use the FrameScope to locate a network connection’s
port on a hub or switch. The FrameScope will toggle the port’s
link indicator on and off causing it to blink.
This section describes how to use the Blink Port feature of the
FrameScope 350.
1 Connect the FrameScope to the remote end of the circuit
whose hub you want to locate. For example, connect the unit
at the network wall circuit.

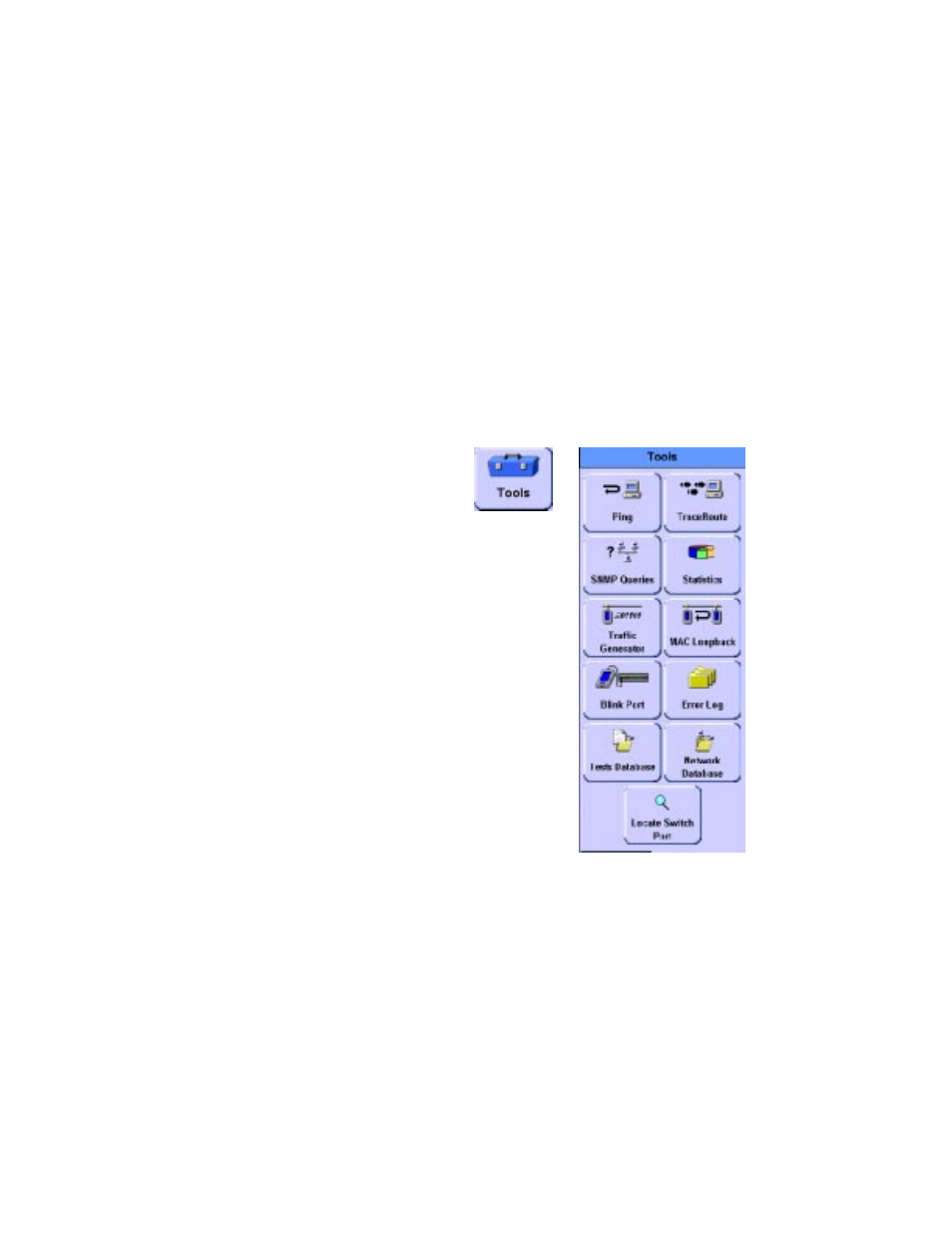

2 Press the Tools button on the main Network tab to display
the Tools menu.
3 Press the Blink Port on the tools menu to call the Blink Port
screen.
