- 31 -
5.2.3 Items to Note
(1) When connecting via Ethernet, the IP address parameter must be set via serial
connection beforehand in accordance with the applicable environment.
(2) If a firewall (including the firewall function of virus protection software) is installed in the
PC, etc., the port block must be canceled or the firewall function disabled before a
connection can be made.
(This is because the very purpose of firewall software is to block external connection to
the protecting device.)

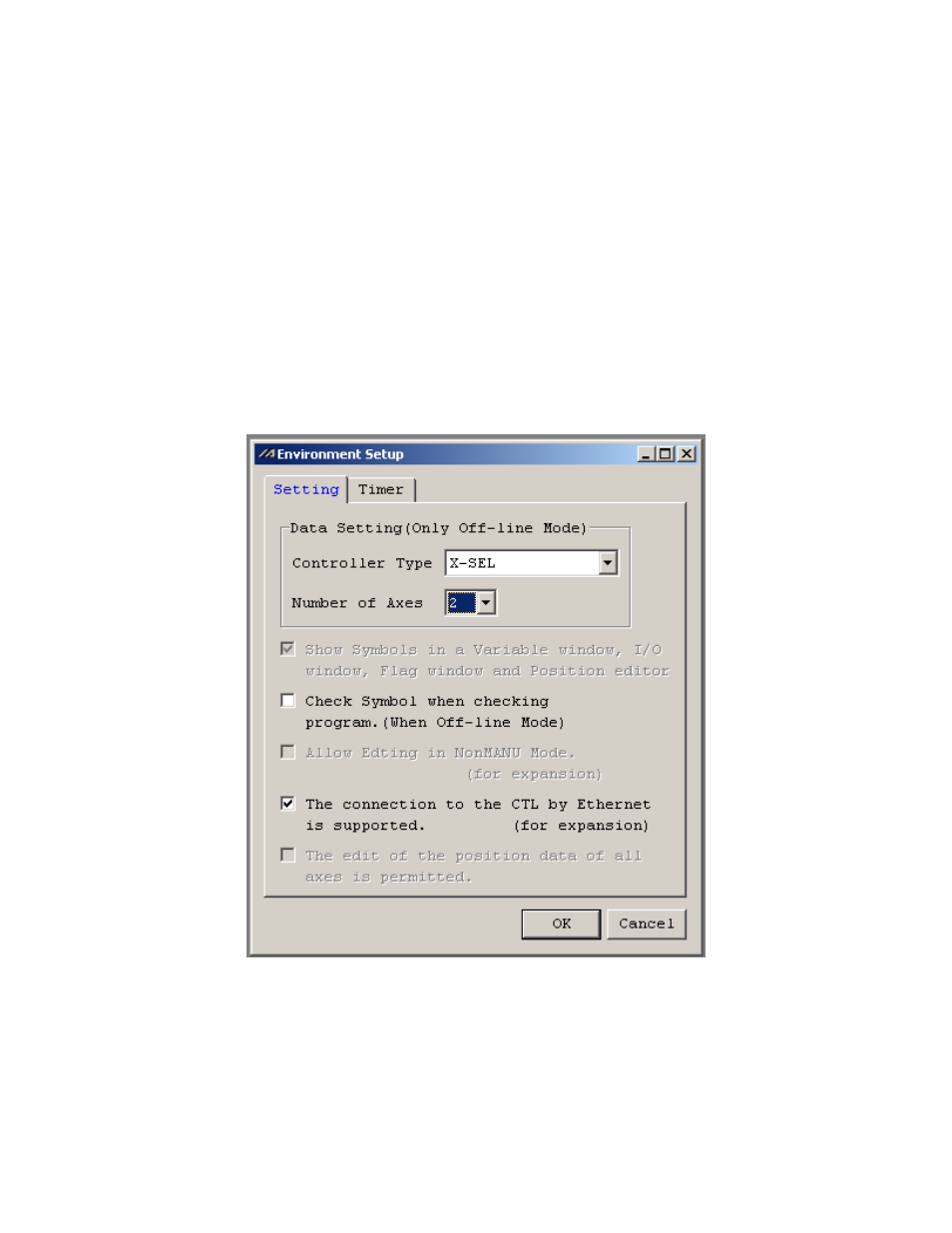

(3) Ethernet connection is enabled only when the checkbox “The connection to the CTL by
Ethernet is supported (for expansion)” (see Fig. 5), as provided on the “Setting” tab
accessed by selecting “Tools”
 “Environment Setup” from the menu, is selected (PC
software V2.1.0.4 or later).
Figure 5
