5.2 Swinging Door

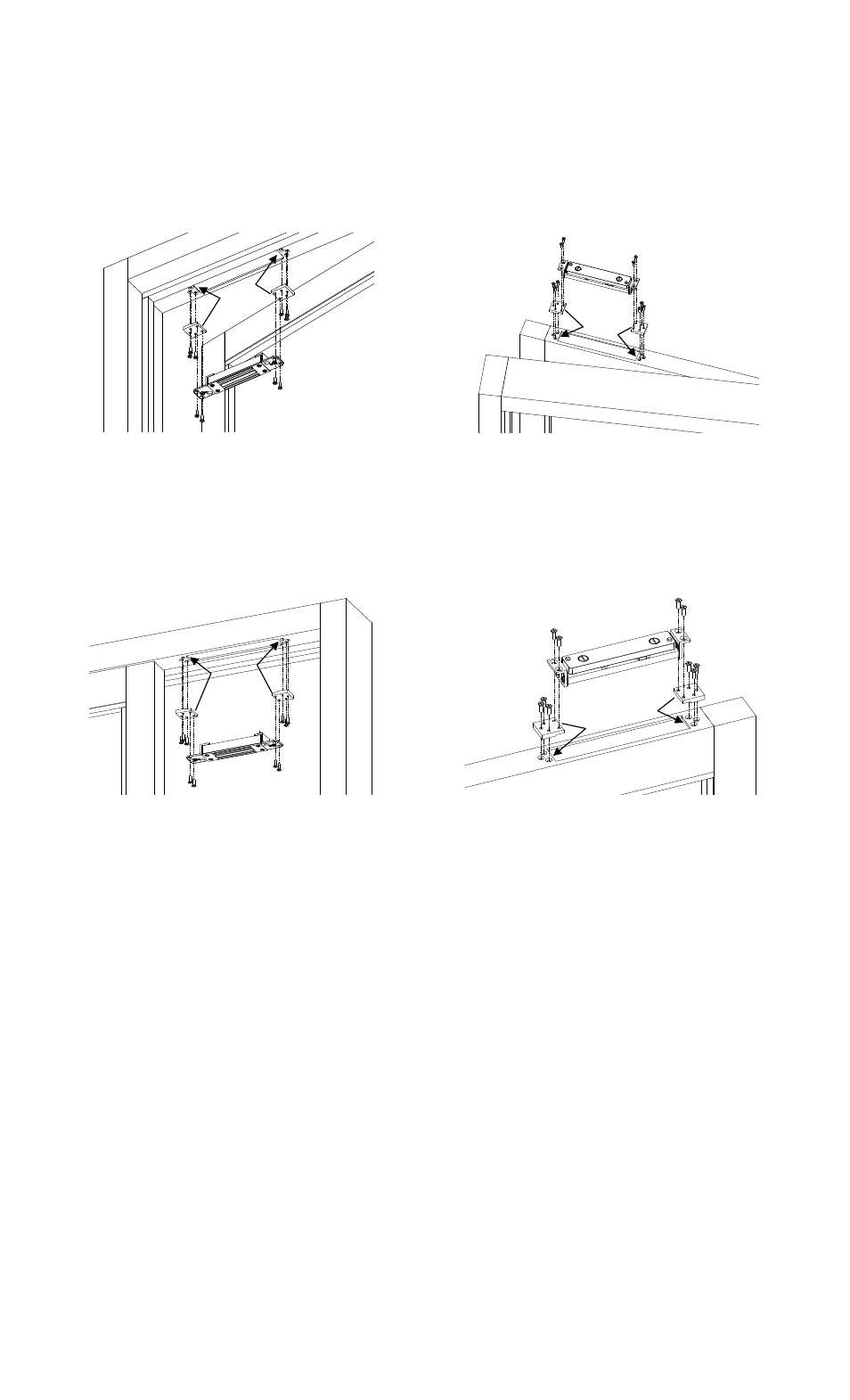

The illustrations in Figure 2 demonstrate a SAM2 installed in a swinging door. This is a
common configuration where the Magnalock is recessed into the door frame header near the
corner opposite the hinge side and the strike assembly is flush mounted into the top edge of the
door. The Magnalock may be mounted horizontally or vertically depending on the installation
required. The flush mount brackets shown are inserted into hollow metal door and frame to
provide a recessed installation.
Magnalock mounted in door frame Strike mounted in edge of hollow metal door
Figure 2 - Swinging door configuration
5.3 Sliding Door
The illustrations in Figure 3 demonstrate a SAM2 installed in a sliding door. The Magnalock
mounts recessed into the door frame header and the strike assembly is mounted into the top
edge of the sliding door.
Magnalock mounted in door frame Strike mounted in edge of door
Figure 3 - Sliding door mounting configuration
5.4 Frame and Door Preparation
5.4.1 Frame Preparation
Select a mounting location for the Magnalock and strike assembly as mentioned in Section 5.1.
The following general guideline should be used for consideration during the installation review:
 Read and follow the directions on the template provided which includes drilling and
mounting instructions.
 An approximated 2” [51mm] clearance distance should be allowed between the Magnalock
(mounting bracket) and the inside corner of the door frame. This will provide adequate
access for the mounting locations and for drilling and tool access.
ALWAYS CHECK THE STRIKE MOUNTING AREA IN THE EDGE OF THE DOOR FOR
OBSTACLES WHEN DETERMINING WHERE TO LOCATE THE MAGNALOCK. MAKE
CERTAIN THAT THE STRIKE MOUNTING AREA DOES NOT HAVE ANY OBSTRUCTIONS
(I.E. DOOR ADJUSTMENT SCREWS OR DOOR CLOSER OPERATORS) THAT MIGHT
HINDER INSTALLATION - BEFORE CUTTING OR DRILLING ANY HOLES.
 Locate and mark the desired lateral centerline position for the Magnalock/strike assembly on
the face of the door. Using this door mark as reference, mark the same lateral center
location of the Magnalock onto the door frame.
