Securitron Magnalock Corp.

Tel 775.355.5625

550 Vista Boulevard

Fax 775.355.5633

Sparks, NV 89434

[email protected]

www.securitron.com


© Copyright, 2007, all rights reserved

PN# 500-21400

Page

1

Rev. B, 8/07

ASSA ABLOY, the global leader

in door opening solutions

INSTALLATION AND OPERATING INSTRUCTIONS

For Model M38 and M68 Magnalocks

(Versions “L”, “S” and “LS” with “D” and “T” Options)

1. INTRODUCTION
Securitron’s Model M38 and M68 Magnalocks are fail safe electromagnetic locks designed for
*interior use in areas which require controlled access or egress. Each unit includes an
interlocking mounting bracket and a power and control wiring access compartment which
provides the added convenience of wiring “at-the-lock”. The sleek, low-profile design provides a

professional looking, unobtrusive integration into a wide range of architectural applications and
can be easily retrofitted to replace existing magnetic lock systems.

*
M38 and M68 Magnalocks are not designed, recommended or approved for exterior (outdoor)
use. Interior use is described as any door installation to the interior of a building (i.e. offices,

work or storage rooms) or to the interior side of any perimeter exterior door.

2. SPECIFICATIONS

M38: M68:
Holding Force: 600 Lbs. [272 Kg]

Holding Force: 1,200 Lbs. [544 Kg]

Dimensions:

Inches: 10-1/2”L X 2-9/16”H X 1-9/16”D
Millimeters: 267 L X 65 H X 40 D

Dimensions:

Inches: 10-1/2”L X 3-5/8”H X 1-13/16”D
Millimeters: 267 L X 92 H X 46 D

Electrical:

12 Volts DC:

Current Requirement: 300 – 325 mA
Power Consumption: 3.6 Watts

24 Volts DC:

Current Requirement: 150 – 175 mA
Power Consumption: 3.6 Watts

Electrical:

12 Volts DC:
Current Requirement: 250 – 275 mA
Power Consumption: 3.0 Watts
24 Volts DC:

Current Requirement: 125 -150 mA

Power Consumption: 3.0 Watts


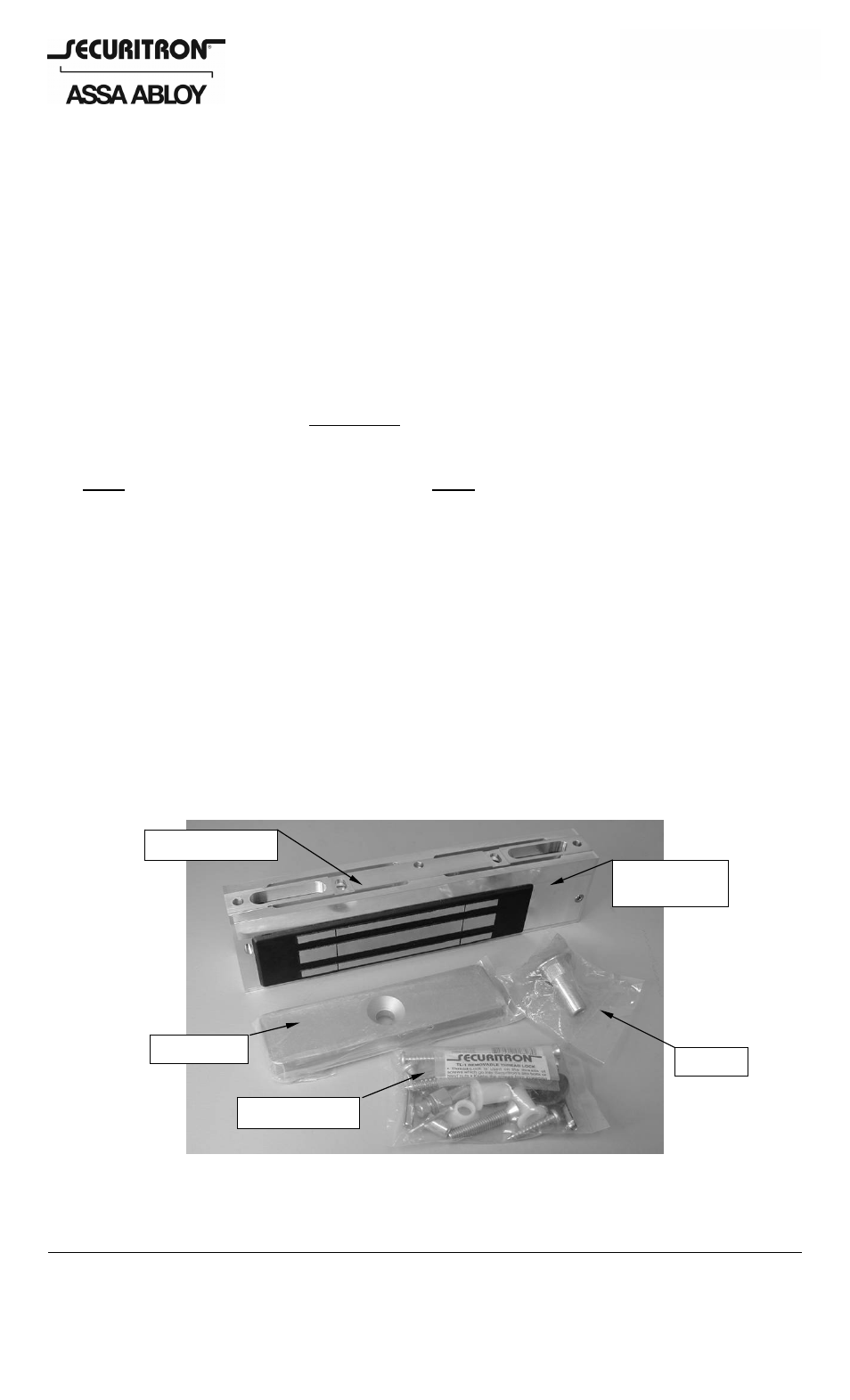

3. PRODUCT OVERVIEW
Upon unpacking this product, an inventory should be made to ensure that all the required
components and hardware have been included. Along with these instructions and the
installation template, the lock assembly (M38 Shown) should include the following items:

Mounting Bracket

Sex Bolt

Hardware Pack

Strike Plate

Magnetic Lock

Housing
