Securitron SAM2-24 User Manual

Page 2

PN# 500-10450

Page 2

Rev. B, 02/12

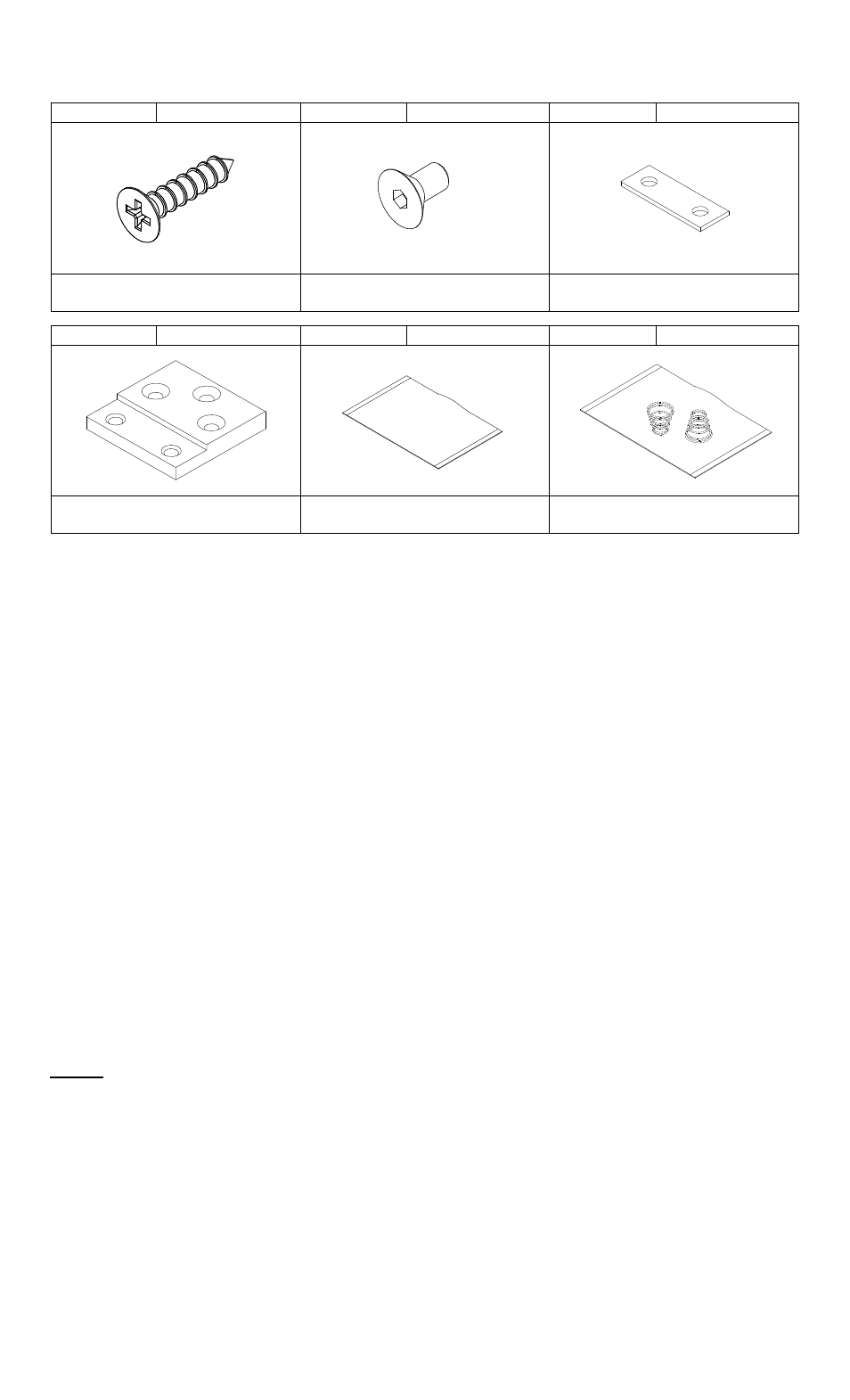

3.1 HARDWARE

10X

20X

Phillips Flat Head

#8 X 3/4” Type “A”

Socket Flat Head

8-32 X 1/2”

Shim Plate

Flush Mount Bracket

Thread Locking Compound

Pack

Floor Install Replacement

Spring Pack (2 Springs)

4 RECOMMENDED TOOLS

Router or Saber Saw

Measuring Instrument (Ruler/Tape Measure)

Hammer Masking

Tape

Chisel

Fish Tape or Lead Wire

Center Punch

Wire Strippers/Cutter

Power Drill

Crimp Wire Connectors

7/64”, 9,64”, 3/16” & 5/16” Drill Bits

Crimp Tool

3/8” Diameter X 82° Countersink Bit

Multimeter

Phillips and Standard Screwdrivers

5 INSTALLATION INSTRUCTIONS
5.1 Pre-Installation Survey
It is recommended that an initial on sight survey be performed. A method of mounting should
be determined and an installation plan should be reviewed as follows:
 Physical strength of mounting areas should be strong enough to meet or exceed the holding

force of the required Magnalock.

 Placement of the Magnalock wiring and protection from potential damage due to intruders or

vandals external attack should be considered during the survey.

 Accessibility should be considered for prevention of any potential safety hazard.
The door and frame areas additionally need to be examined for mortising capabilities, sufficient
size and should be free of any internal obstructions. The top-of-door installation is
recommended as the most suitable location for protection from impact attacks.

NOTE: THE SAM2-24 STRIKE ASSEMBLY IS NOT RECOMMENDED FOR USE IN

ALUMINUM OR STEEL FRAMED DOORS THAT HAVE A CHANNEL RECESS AT THE TOP.
FOR PROPER OPERATION IN HOLLOW METAL DOORS THE STRIKE ASSEMBLY SHOULD
BE MOUNTED IN THE FLUSH MOUNT ARRANGEMENT ONLY!
