FLEX MOUNT KIT INSTALLATION INSTRUCTIONS
FMK-SW (Swing Gates) & FMK-SL (Sliding Gates)
Note: Securitron recommends welding all brackets and hardware after installation to ensure
maximum security.
RECOMMENDED TOOLS
Electric Drill 3/16” Hex Wrench 5/16”, 13/16” & 3/8” Drill Bits
Adjustable Wrench 1/4”-20 Tap 7/16” Socket Wrench
Hammer Welder (optional) Center Punch

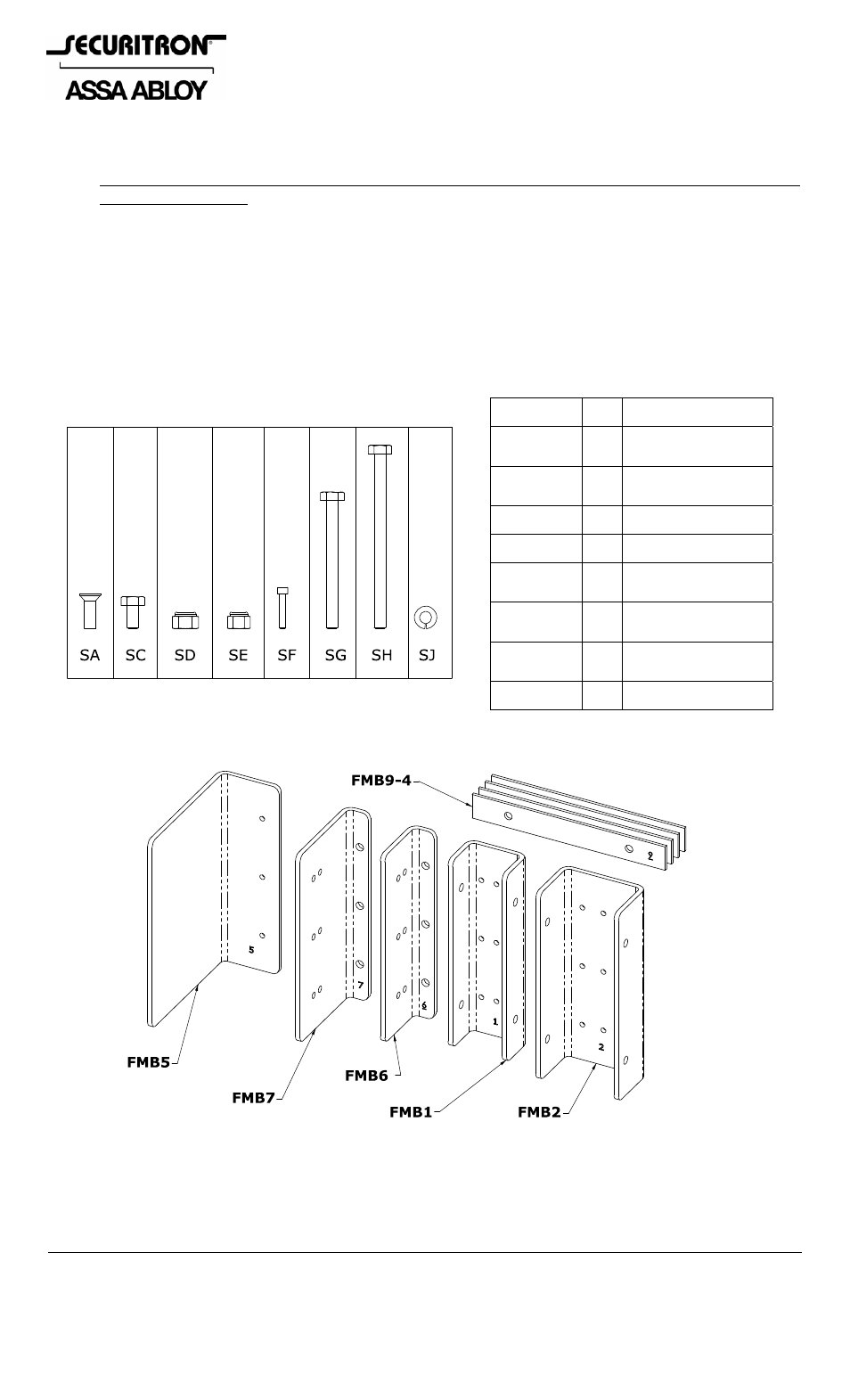

1. PRODUCT OVERVIEW
Upon unpacking this product, an inventory should be made to ensure that all the required
components and hardware have been included. Along with these instructions each product
should include the following items.
FMK-SW - Swing Gate Kit
FASTENER QTY DESCRIPTION
SA 1
5/16-18 x 1-1/4”
FH SCREW
SC 6
1/4-20 x 1/2”
HEX BOLT
SD 1 5/16-18 LOCK NUT
SE 4 1/4-20 LOCK NUT
SF 4
1/4-20 x 1-3/4”
CAP SCREW
SG 2
1/4-20 x 2-3/4”
HEX BOLT
SH 2
1/4-20 x 4”
HEX BOLT
SJ 6 1/4” SPLIT WASHER
