Slide number 6, Front of vehicle, Rail positions – Reese 30126 RAIL KIT User Manual
Page 6

30126N 03/16/11 REV E
PCN15022
©2011 CEQUENT PERFORMANCE PRODUCTS, INC.
PRINTED IN USA
6

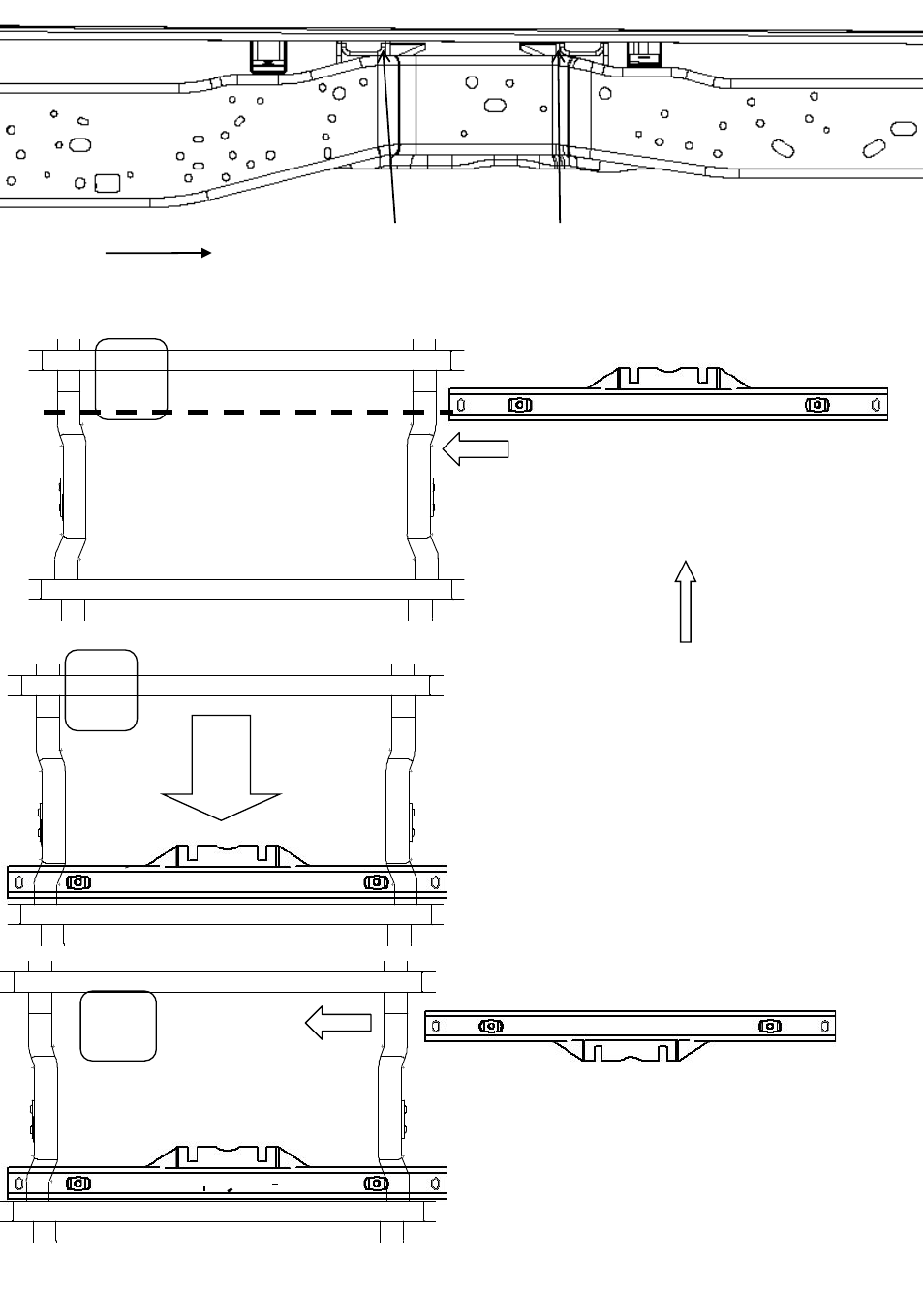

16. Insert rails (#1) as shown in the following steps (
Figures 9 through 11
). Rails should be inserted flat side up.
Step 16A : Insert the first rail from the
passengers side rear wheel well
above the frame. Rest the rail on
both chassis frame rails (
Figure 9
).
Vehicle
Forward
Figure 9
F
r
a
m
e
F
r
a
m
e
Front Hat Channel
Rear Hat Channel
Fuel
Cell
Figure 11
Step 16C : Insert the second rail from
the passengers side rear wheel well
above the frame. Rest the rail on both
chassis frame rails (
Figure 11
).
Step 16B : Slide the rail rearward,
parallel with axle, resting on both
frame rails, and as close as possible
to the rear hat channel (
Figure 10
).
Figure 10
Fuel
Cell
Fuel
Cell
Front
of
vehicle
Figure 8
Rail positions
