Reese 30126 RAIL KIT User Manual

6’ and 8’ beds

background image

30126N 03/16/11 REV E

PCN15022

©2011 CEQUENT PERFORMANCE PRODUCTS, INC.

PRINTED IN USA

INSTALLATION INSTRUCTIONS

MOUNTING KIT

FORD F250/F350/F450

HD/SD

6’ and 8’ Beds

For Customer Support Call 1-888-521-0510



(1) Provide this Manual to end user.

(2) Physically demonstrate procedures in this Manual to end user.

(3) Have end user demonstrate that he/she understands procedures.

(1) Read and follow this Manual every time you use Hitch.

(2) Save this Manual for future reference.

(3) Pass on copies of Manual to any other user or owner of Hitch.

DEALER/INSTALLER:

END USER:

Figure 1

Front of

vehicle

DO NOT EXCEED VEHICLE MANUFACTURER’S RATING FOR FIFTH WHEEL TOWING

OR MAXIMUM GROSS TRAILER WEIGHT OF

25,000lb. / 11,340kg

AND A MAXIMUM

KING PIN WEIGHT OF

6,250lb. / 2,835kg.

*Please read and understand these instructions prior to installation.

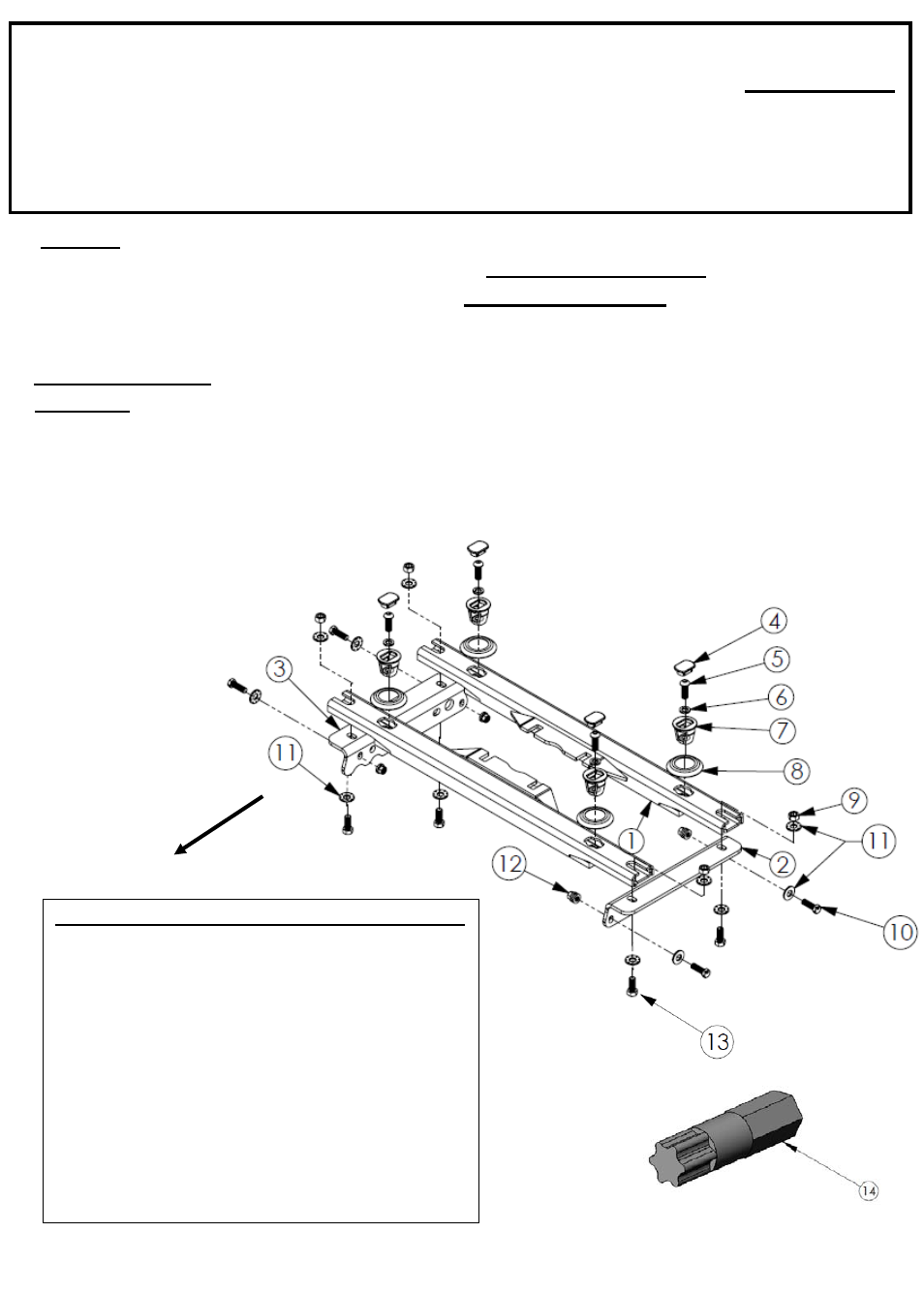

PART NUMBER

30126

PART

QTY.

1.

BASE RAIL

(2)

2.

FRAME BRACKET (DRIVERS SIDE)

(1)

3.

FRAME BRACKET (PASSENGER SIDE)

(1)

4.

PUCK PLUG

(4)

5.

5/8-11 x 1-3/4 BUTTON HEAD SCREW

(4)

6.

5/8 LOCK WASHER

(4)

7.

PUCK

(4)

8.

TRIM RING

(4)

9.

5/8-11 GRADE 8 HEXHEAD NUT

(4)

10. M14 X 1.5 X 45 BOLT CL10.9

(4)

11. 5/8 CONNICAL WASHER

(12)

12. NUT, M14 X 1.5 FLANGE (4)
13. 5/8-11 x 1-3/4 GRADE 8 HEX HEAD BOLT (4)
14. Torx T50 IP BIT (1)
