Fiber Optic Cable Removal/
Replacement
Removal

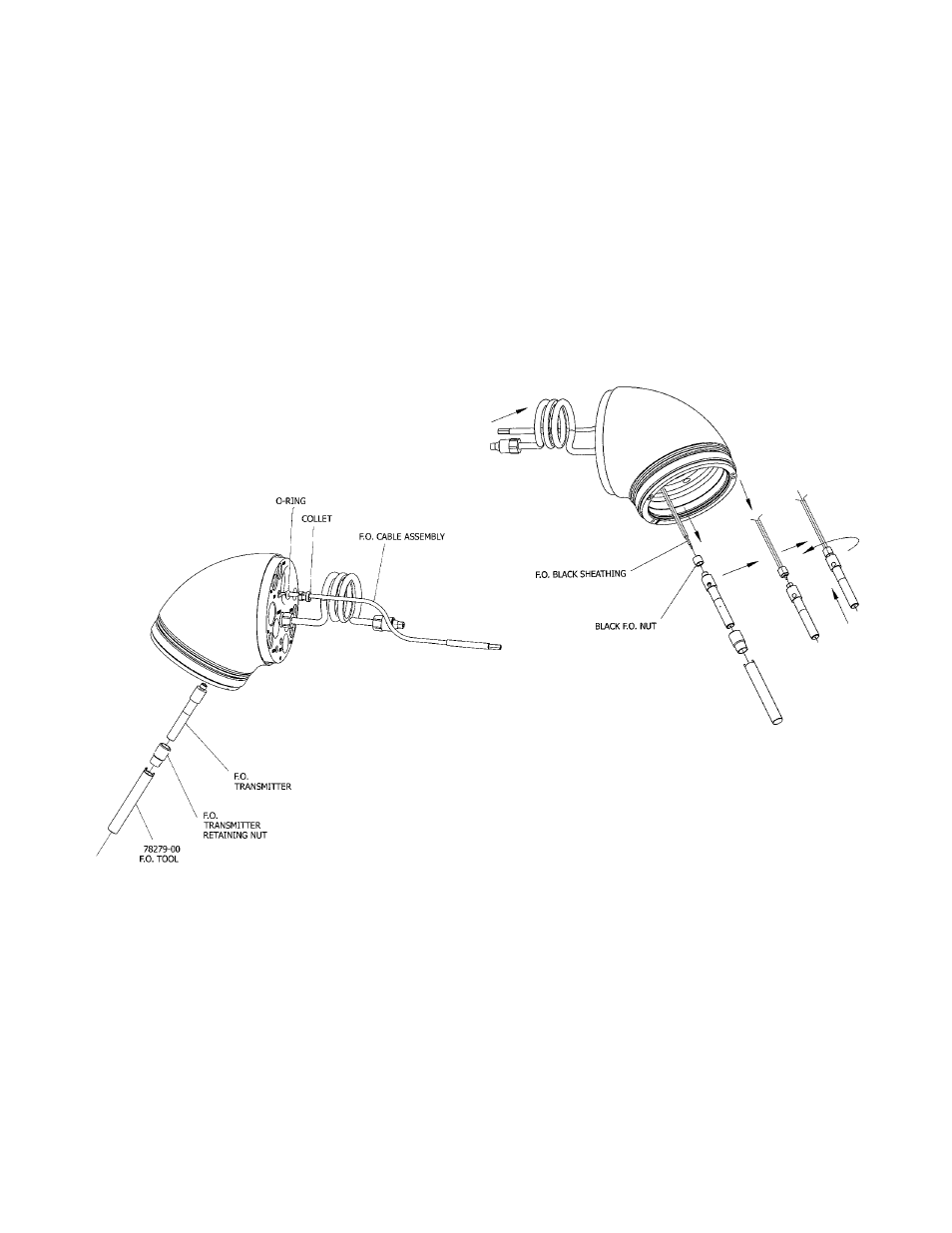

From the turbine side, loosen the Fiber Optic
Transmitter Retaining Nut with the 78279-00 tool.
Grasp the exposed Fiber Optic Transmitter and
pull sharply. This will disengage the transmitter
from the cable assembly. On the back side of the
knuckle assemble, depress the collet and pull out
the fiber Optic Cable Assembly.
Installation
From the back side of the knuckle assembly, slide
the Fiber Optic Cable through the collet and push
forward until the fiber optic cable is extending
out of the knuckle on the turbine side at least 3
inches (75mm). Remove the Black nut from the
transmitter assembly and slide onto the black
portion of the fiber optic cable. Slide the cable
into the transmitter assembly and tighten the
fiber optic nut tightly. Pull slightly to make sure it
is firmly attached. While depressing the collet on
the back side of the knuckle, pull the fiber optic
cable towards the rear of the applicator. Make
sure transmitter is centered in the holes or the
cable may come loose. Continue to pull and push
the transmitter into place until the transmitter is
seated firmly. Re-install the fiber Optic Retaining
Nut with the tool until firmly seated.
