Fluid Tube Removal / Replacement
Removal (Turbine Removed)
Using the fluid tip/tube removal tool (A11229-00),
place the pinned end of the tool towards the fluid
tube retaining nut and engage the pins into the
holes. Turn the tool counter-clockwise to remove
(see “Fluid Tube Removal” figure).

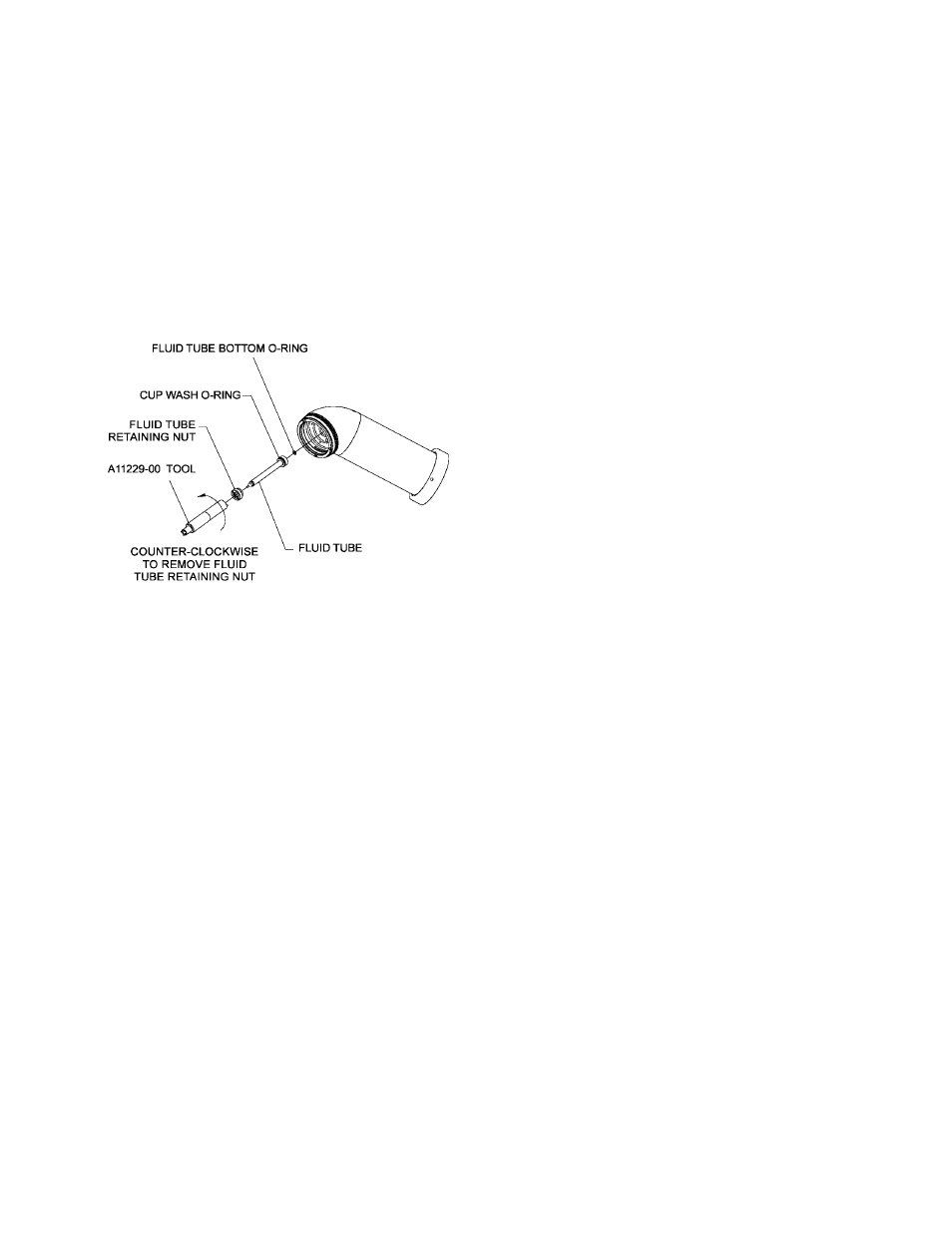

Fluid Tube Removal
Replacement
Lubricate all O-rings with A11545-00 O-ring lubri-
cant. Push the fluid tube into the pocket of the
atomizer body. Seat the tube by pushing while
rocking the tube from side to side. Install the fluid
tube retaining nut over the tube. Tighten the re-
taining nut firmly tight using the removal tool in a
clockwise direction. Tighten to 65-75 lbs0149in
(7.34-8.47 Nm).
Rear Plate / Rear Manifold / Cascade
Removal and Replacement
Removal
Remove the cup wash and the fluid coil fitting from
the rear valve manifold. Both are removed by
turning counter-clockwise. The ferrule(s) should
be retained with the coil and the cup wash line.
Remove the five (5) air bolts using a wide bladed
screwdriver.
Pull both the rear valve manifold and the rear plate
away from the applicator. Loosen the fiber optic
and low voltage cascade connector set screws
about four turns. Push the cascade connector out
of the rear plate towards the front of the applicator,
pull the fiber optic cable out. Both the rear plate
and the rear valve manifold may now be removed.
