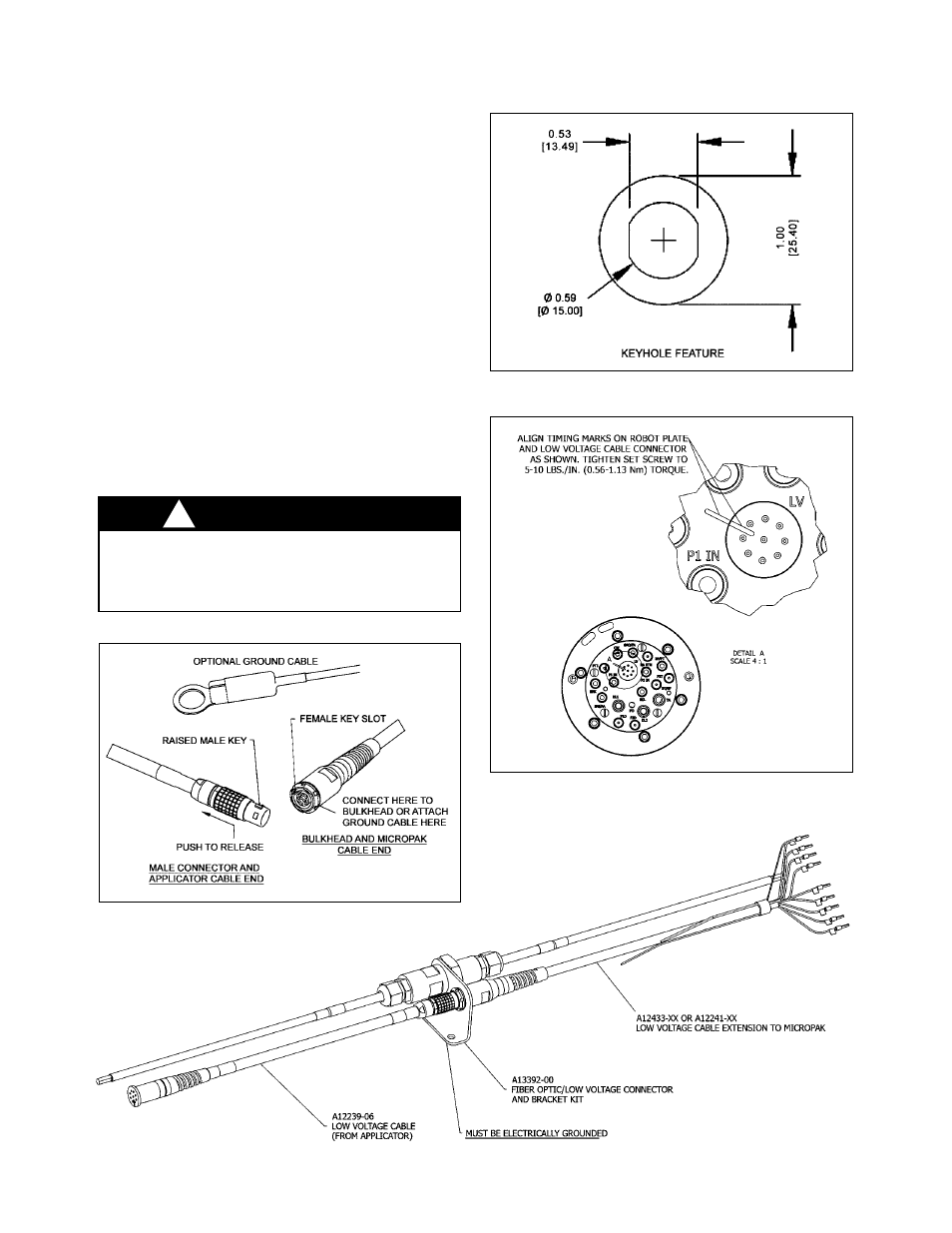

Bulkhead Cut-Out Diagram
Robot Plate
W A R N I N G
!
† Cable connector shell must be electri-
cally grounded. Electrical noise or other in-
terference may result.
(3.18mm) in thickness. The bracket should be
made as in “Low Voltage Cable On Robot” figure
to hold the connector from turning. To mate the
connectors, align the raised key section of the
cable on the applicator end with the key groove
of the cable that goes to the MicroPak. Push the
male end into the mating connector until an au-
dible click is heard. Tug on cable to ensure that
it is locked in place. To remove this section from
the robot plate, remove the applicator. Locate
the set screw holding the flanged plastic 9 pin
connector. Loosen with a 3/32” hex key wrench.
Pull the cable out from the robot plate end. Install
new cable In reverse direction, align the 9 pin
connector with the alignment mark on the robot
plate face and tighten set screw. Torque 5-10
lbs•in (0.56-1.13 Nm).
Quick-Disconnect Cables
RMA-560 Single/Dual Purge Direct Charge - Operation
Ransburg
LN-9278-13 41
