Fluid connections, Typical installation, Ransburg – Ransburg RMA-560 Single_Dual Purge Direct A13364 User Manual

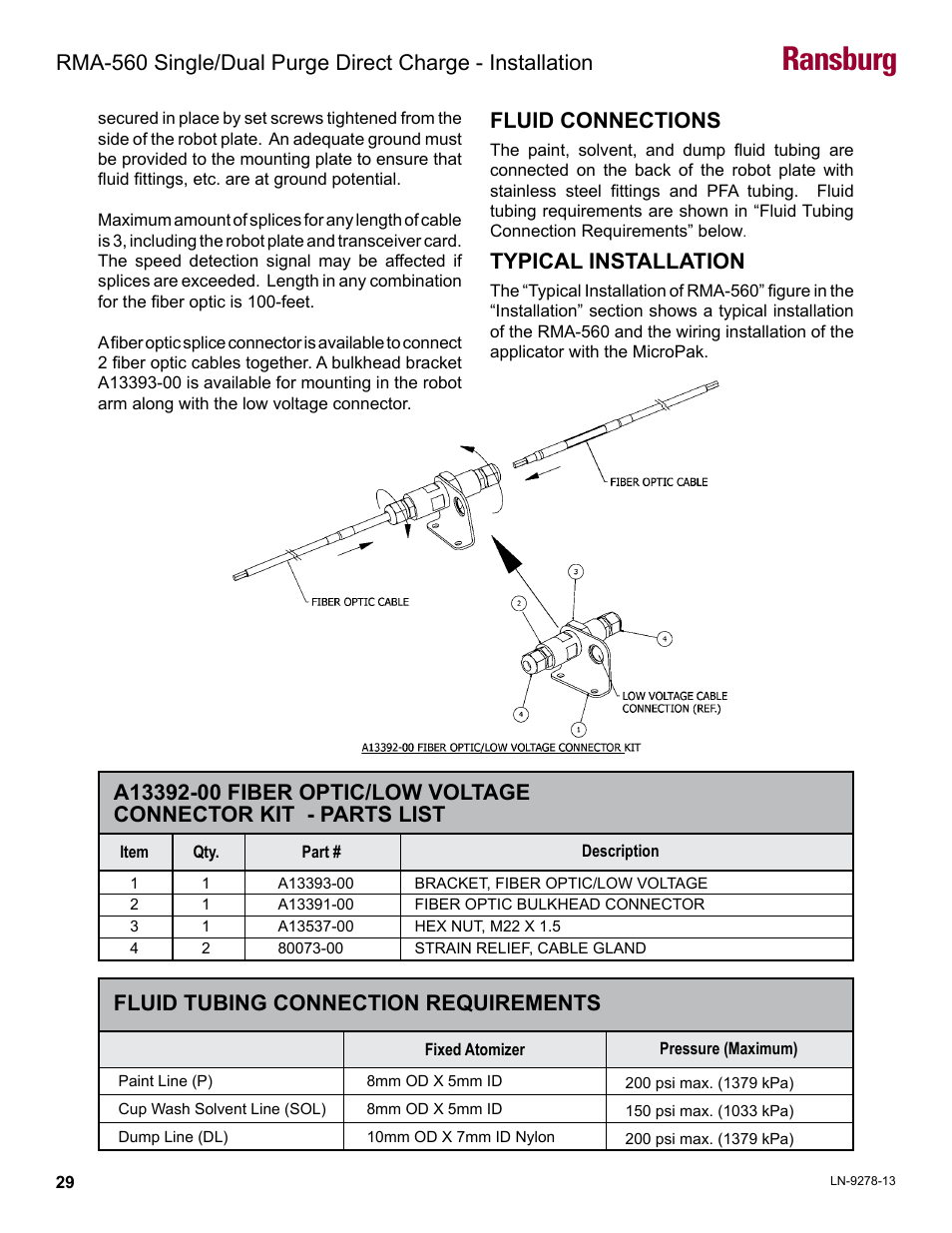

Page 32: Fluid tubing connection requirements
