Chapter 2 Installation Communications Connections
PowerSmart+ Advanced Power Quality Meter 27
Communications Connections
Several communication options are available for the PowerSmart+ Advanced:
COM1 (check the label on the back of your meter):
RS-232/RS-422/RS-485
56K Dial-up modem
Ethernet 10/100BaseT
COM2:
RS-422/RS-485
The RS-232/RS-422/RS-485 port is a standard port for COM1. Other options are
ordered separately. Connections to the Ethernet RJ45 connector and to the
telephone RJ11 connector are made through a cable adaptor provided with your
meter (if ordered).
A full description of the communication protocols is found in the PowerSmart+
Advanced PQM protocol guide provided with your meter.

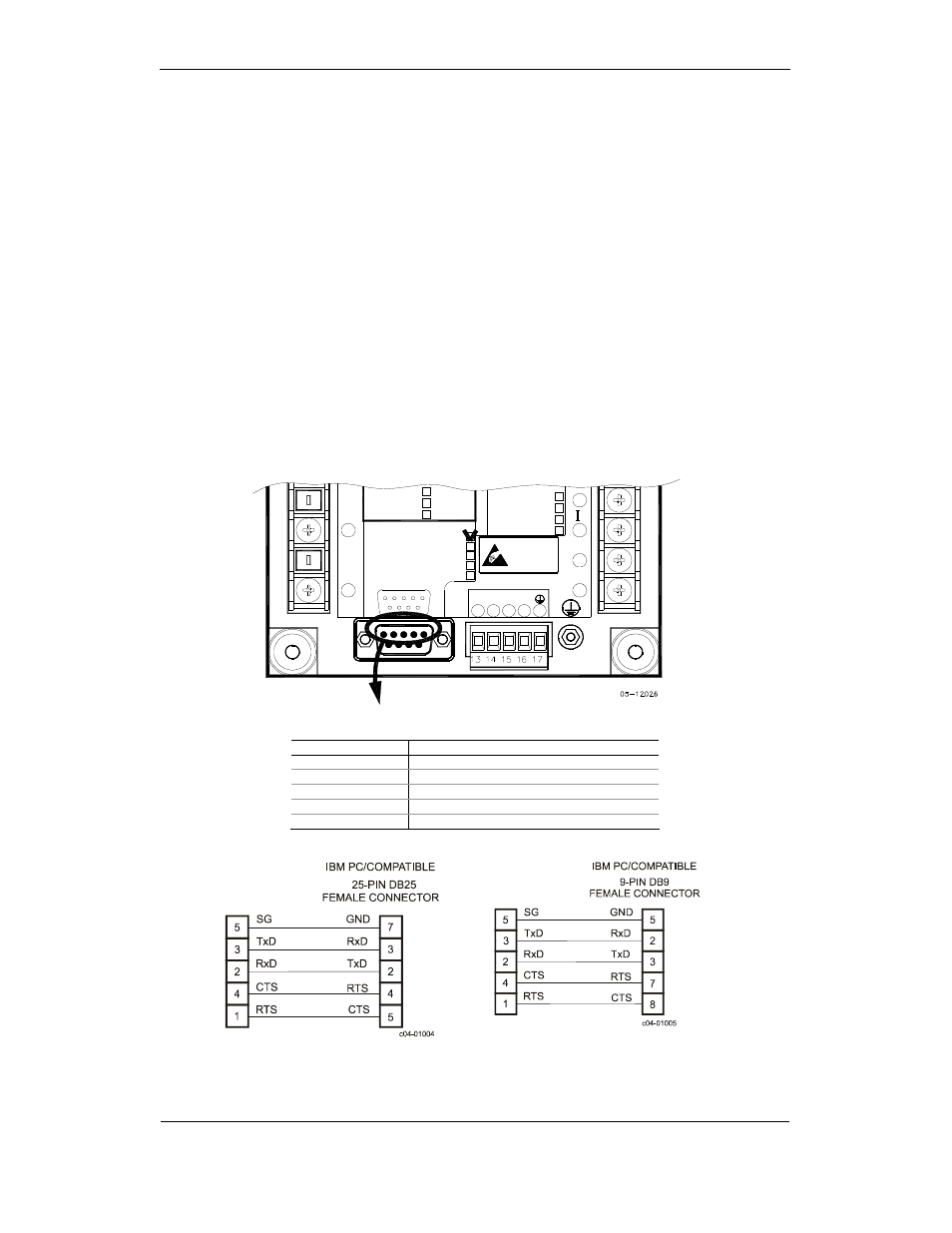

COM1 RS COM1 RS COM1 RS COM1 RS----232 Connection 232 Connection 232 Connection 232 Connection
