S O F T W A R E V I E W I N G R E C O R D E D F I L E S
118 PowerSmart+ Advanced Power Quality Meter

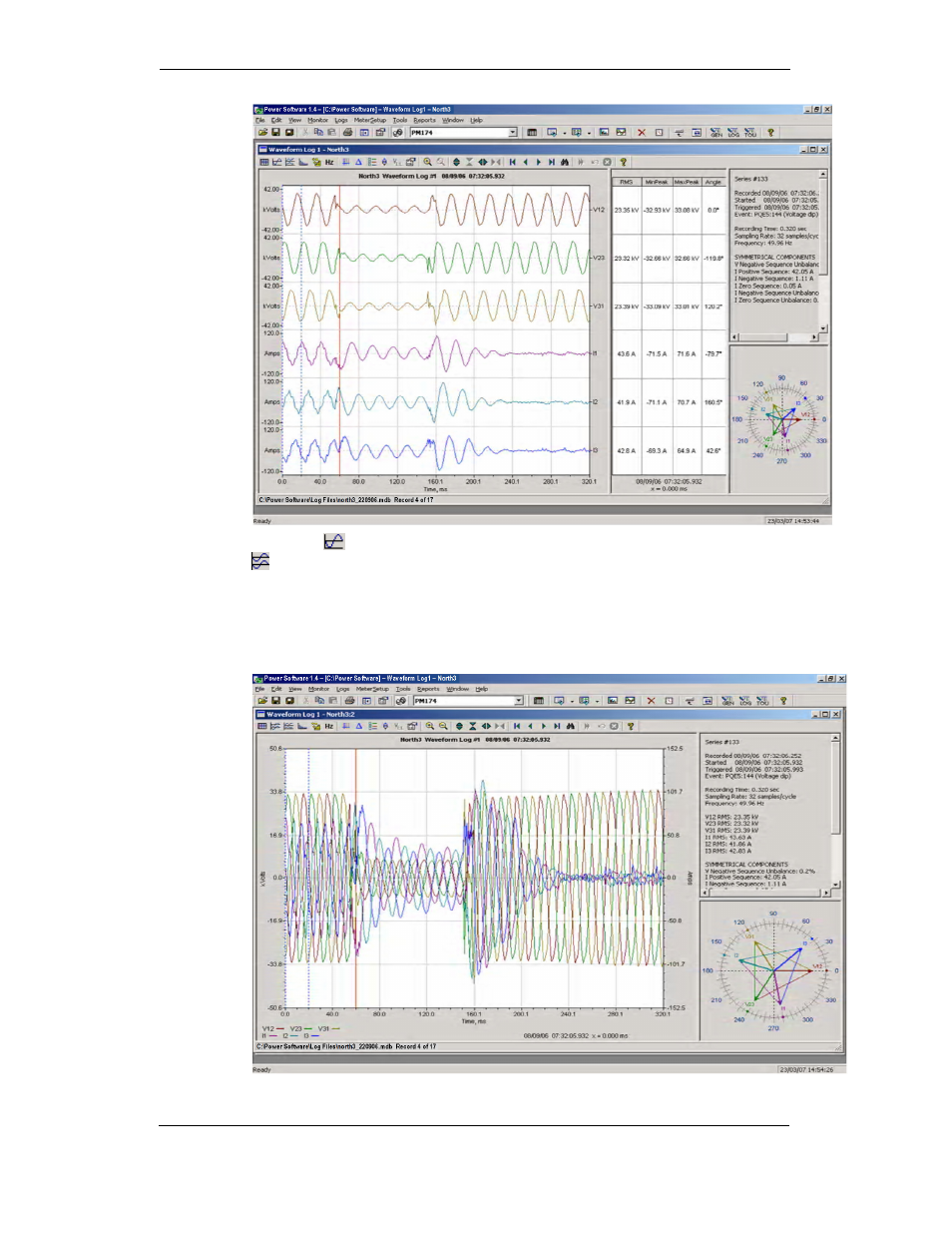

Click on the button on the local toolbar to view overlapped waveforms, and click on the
button to view non-overlapped waveforms.
Waveform data is recorded in series that may contain many cycles of the sampled
waveform. A waveform window displays up to 128 waveform cycles. If the waveform
contains more cycles, the scroll bar appears under the waveform pane allowing you to
scroll through the entire waveform.
