Remote Relay Control Remote Relay Control Remote Relay Control Remote Relay Control
Power Software allows you to send a command to any relay in your device or
release a latched relay, except of the relays that are linked to an internal pulse
source. These relays cannot be operated outside of the device.

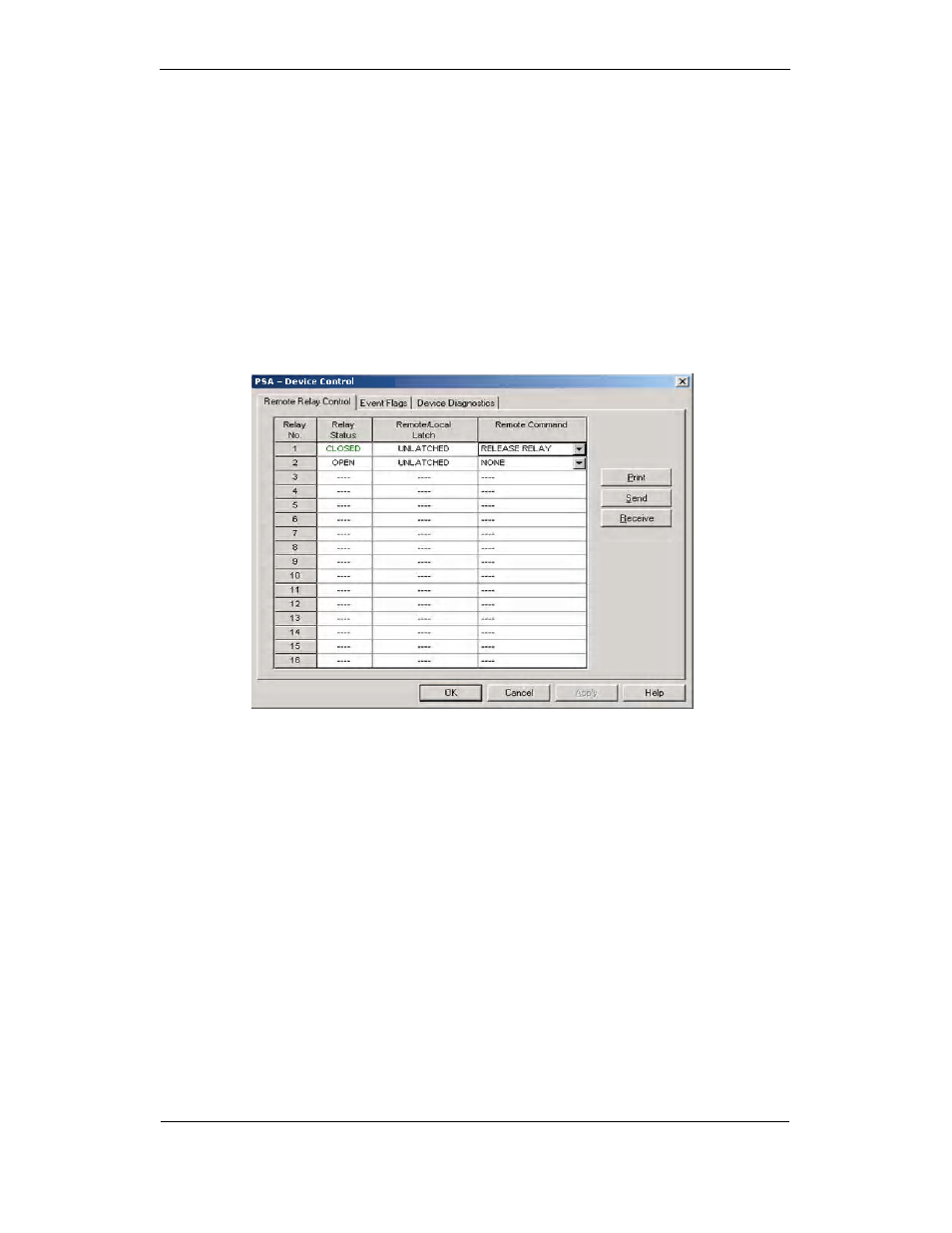

To enter the Remote Relay Control dialog, check the On-line button on the Power
Software toolbar, select Device Control from the Monitor menu, and then click on
the Remote Relay Control tab.
To send a remote command to the relay:
From the “Relay Command” box for the relay, select the desired command:
OPERATE – to operate a relay
RELEASE - to remove your remote command, or to release a latched relay
Click on Send.
Event Flags Event Flags Event Flags Event Flags
The PowerSmart+ Advanced PQM provides 8 common event flags that are intended
for use as temporary event storage and can be tested and operated from the control
setpoints. You can transfer an event to the setpoint and trigger its operation
remotely by changing the event status through Power Software.
To enter the Event Flags dialog, check the On-line button on the Power Software
toolbar, select Device Control from the Monitor menu, and then click on the Event
Flags tab.
To change the status of an event flag:
From the “Status” box, select the desired flag status.
Click on Send.
