Chapter 4 Power
S O F T W A R E V I E W I N G R E C O R D E D F I L E S
PowerSmart+ Advanced Power Quality Meter 117

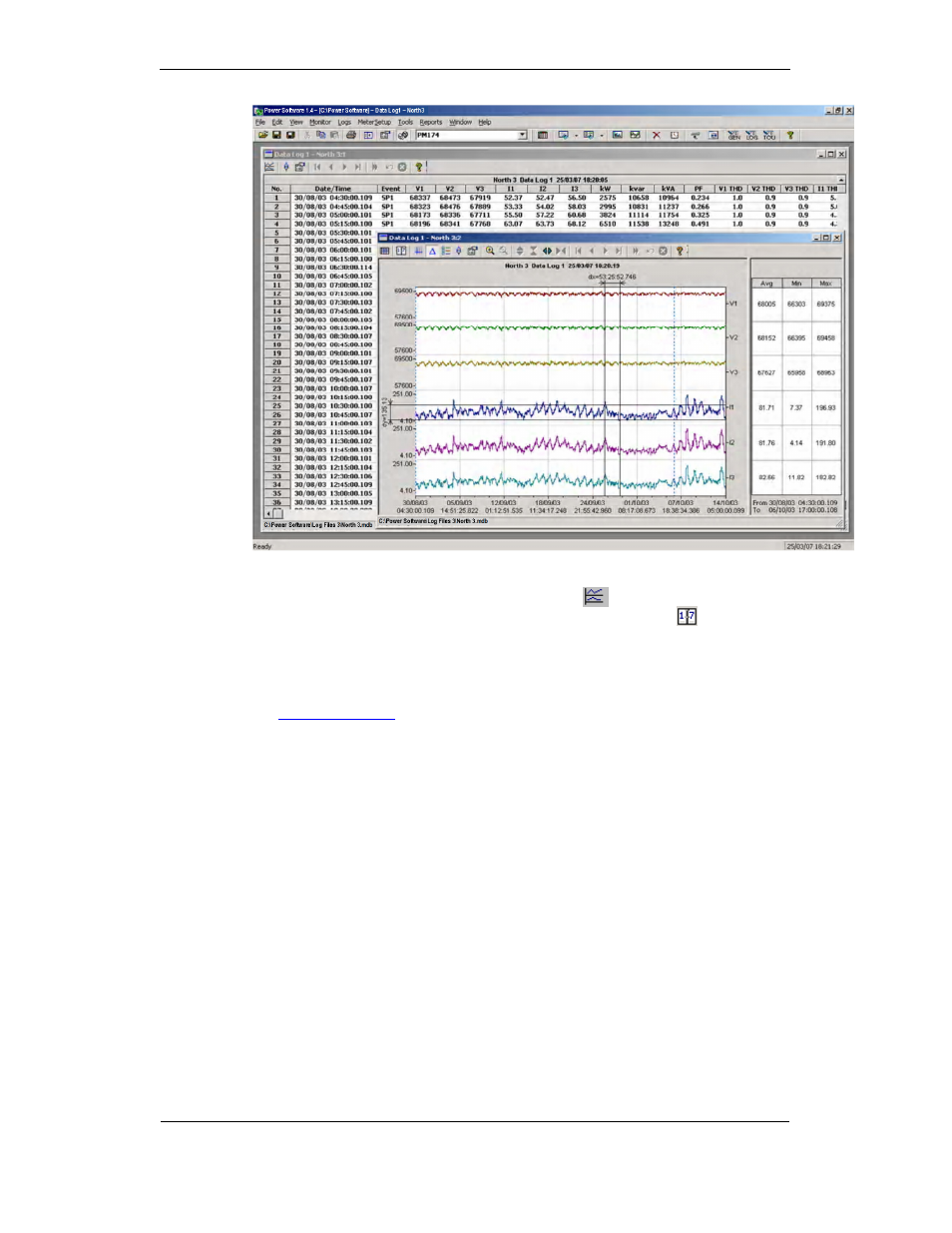

Viewing Data Trend
To view data in a graphical form, click on the Data Trend
button on the local toolbar.
To change the time range for your graph, click on the Time Range button , and then
select the desired date and time range.
To select desired data channels for your trend, click on the trend window with the right
mouse button, select “Channels”, check the channels you want displayed, and then click
OK.
See Viewing Waveforms for information on customizing the trend view and on the available
graphics options.
Viewing Waveforms Viewing Waveforms Viewing Waveforms Viewing Waveforms
When you open a new file, Power Software shows you a waveform graph with non-
overlapped waveforms. Each waveform window has a local toolbar from where you can
open another window to examine the waveform in a different view. When you move to
another waveform record, all waveform views are updated simultaneously to reflect the
changes.
