Viewing Statistics
Page 4-33
Viewing Packet Statistics (Table Format)
To view packet statistics in a table format:
1
Select a port for which statistics are to be gathered by
clicking on it once.
▲
Important:
Statistics can be viewed at the port-
level only.
2
Click
PktTable.

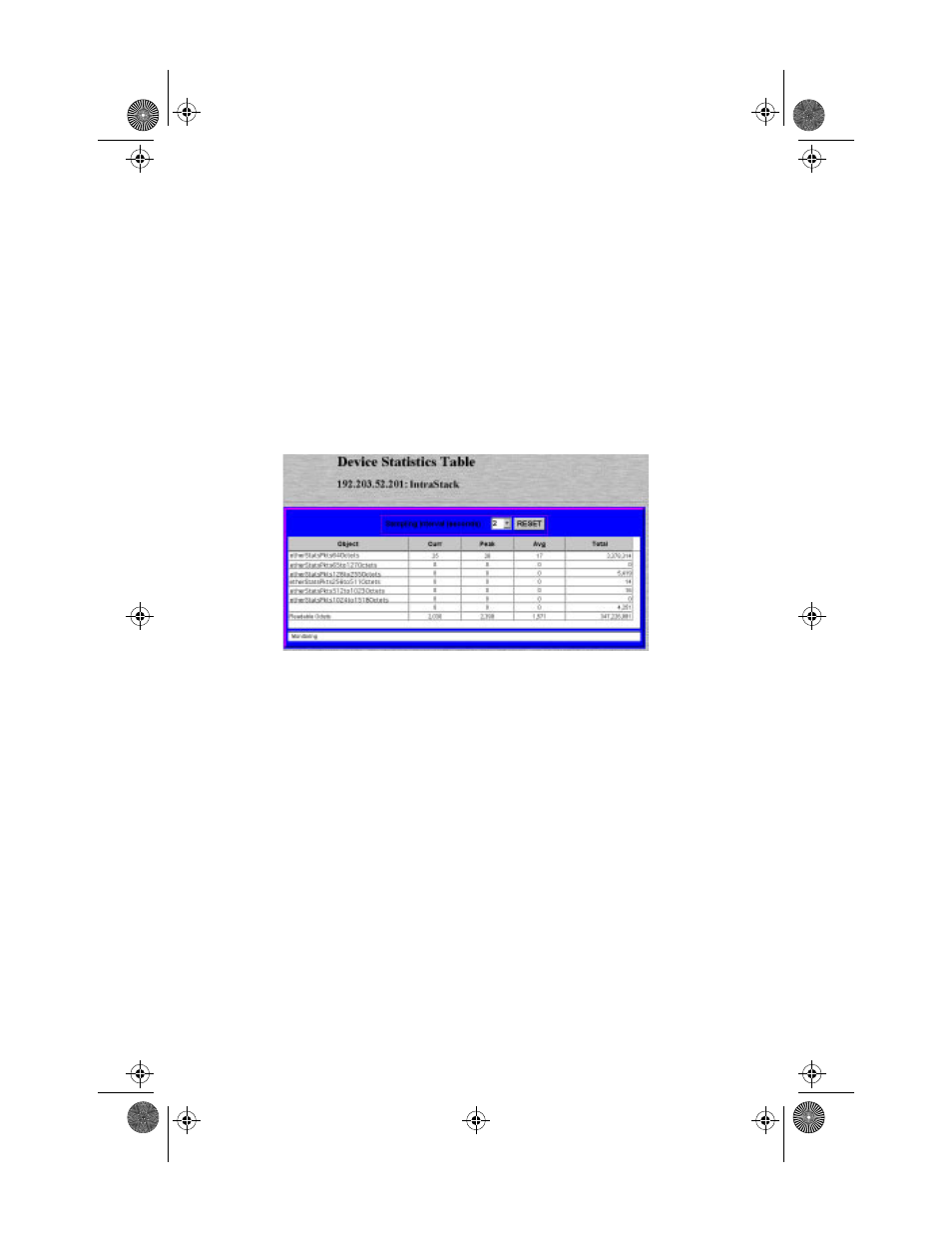

Packet statistics appear for the selected port, similar to Fig-
ure 4-20.
Figure 4-20
Packet Statistics (table format)
For a description of each object, see “Objects” on
page 5-30.
3
Open the
Sampling Interval drop-down menu and
select the number of seconds to poll for statistics.
Statistics are automatically gathered at the selected interval
in the following columns:
❏
Curr — (current) the number of occurrences each
second.
❏
Peak — the largest number of occurrences since
opening or resetting the screen.
❏
Avg — (average) the average number of occurrences
since opening or resetting the screen.
❏
Total — the total number of occurrences since open-
ing or resetting the screen.
4
Click Reset to reset the counters to zero.
