Asante Technologies 6000 Series - Manual (Page 49)

Configuring the Spanning Tree Protocol
Page 4-27

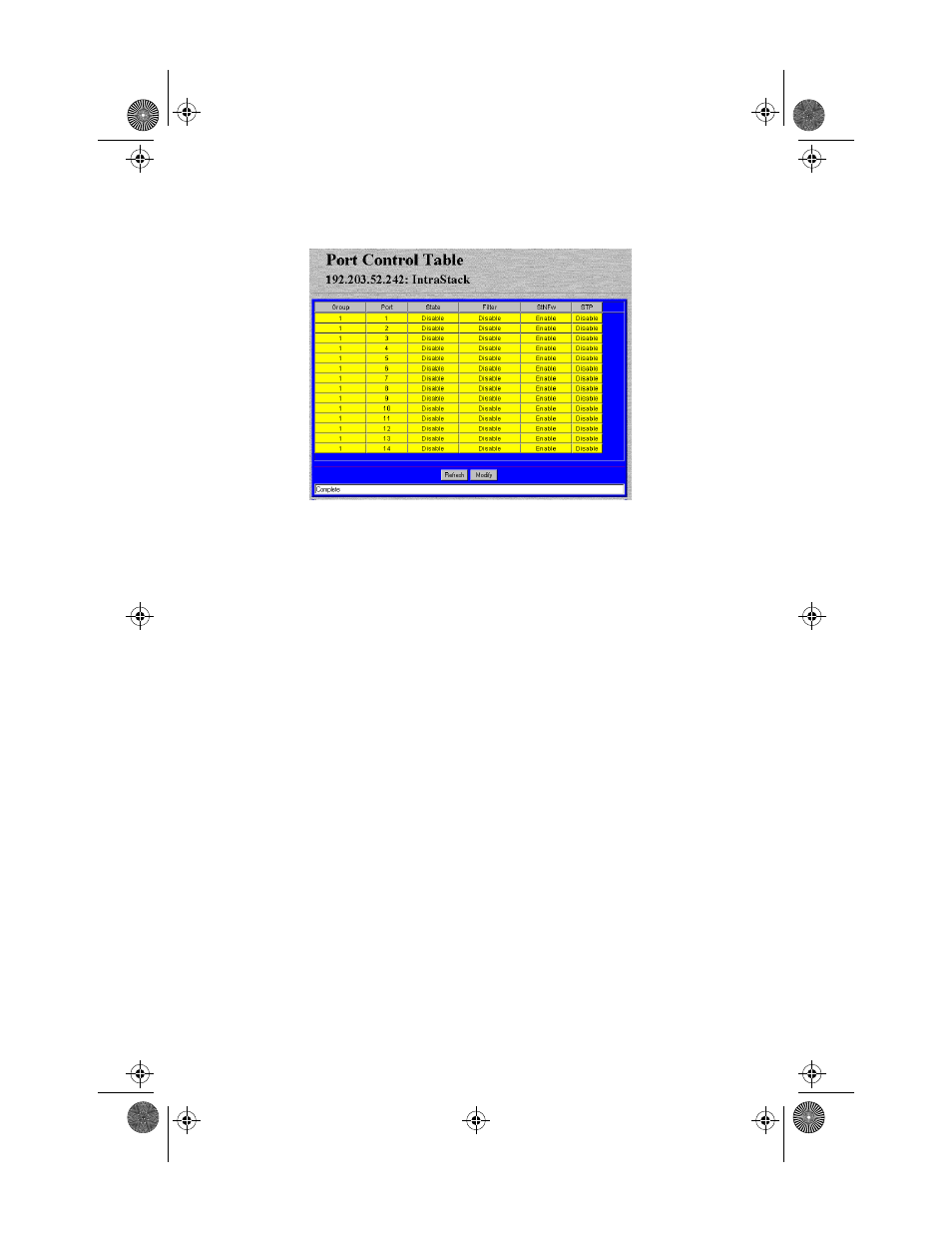

Figure 4-16 Port Control table
2
Select the port you want to disable or enable Span-
ning Tree on by clicking once on its row.
3
Click Modify.
The “Modify Dialog” box appears.
4
Open the STP drop-down menu and select Disable
(to disable Spanning Tree on the port) or Enable (to
enable Spanning Tree on the port).
5
Click Apply.
Spanning Tree is disabled (or enabled) on the selected port.
Book Page 27 Thursday, September 18, 1997 4:28 PM
