Management
Page 4-16
Managing Trap Receivers
Trap receivers are the network management stations designated to
receive traps from the IntraStack when they occur.
▲ Important: A maximum of four trap receivers is
allowed.
This section describes how to add and delete a trap receiver.
To add a trap receiver entry:
1
Do not select any item on the Device Page’s front-panel
image. (This selects the entire device.)
2
Click TrapRecv.
The Trap Receiver table appears, similar to Figure 4-12.

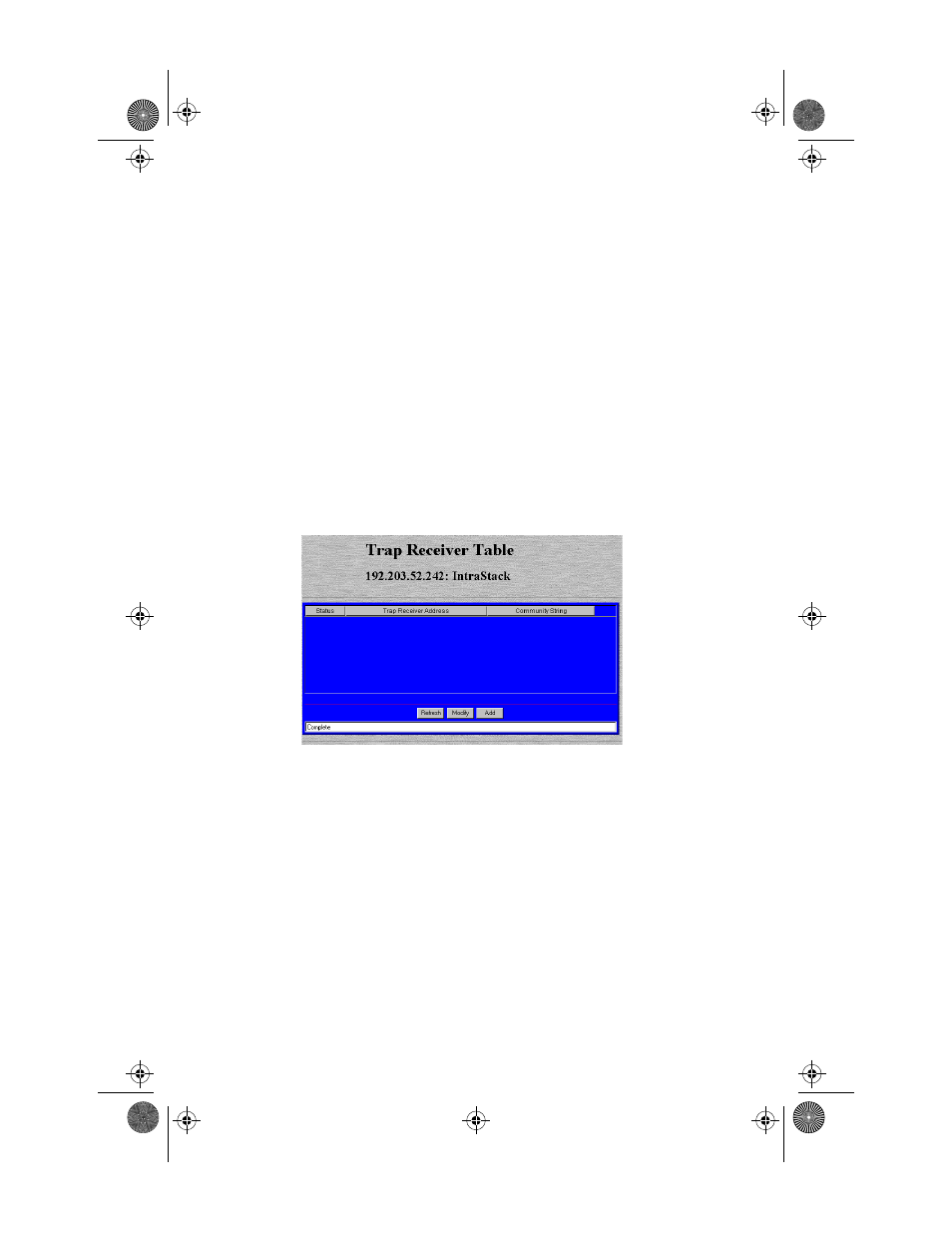

Figure 4-12 Trap Receiver table
∆
Note: For a description of each field, see “Trap
Recv” on page 5-22.
If there are no entries, the table is blank.
3
Click Add.
The Add Dialog box appears.
4
Open the Status drop-down menu and select valid.
5
Type the IP address of the management station that is
to receive traps in the
Trap Receiver Address field.
▲
Important: Do NOT type an IP address of
0.0.0.0.
