Configuring IP Information
Page 4-5
Configuring IP Information
To configure and/or manage an IntraStack over the network, the IntraSt-
ack 6014DSB needs to be properly configured with IP information (such
as the device’s IP address, subnet mask, and default gateway address).
This information is initially set-up in the IntraStack 6014DSB via the
unit’s console port; however, some information can be modified using
IntraSpection.
To configure the IntraStack 6014DSB’s IP information:
1
Do not select any item on the Device Page’s front-panel
image. (This selects the entire device.)
2
Click
IPAgent.
The IP Agent Protocol Group table appears, similar to Fig-
ure 4-4.

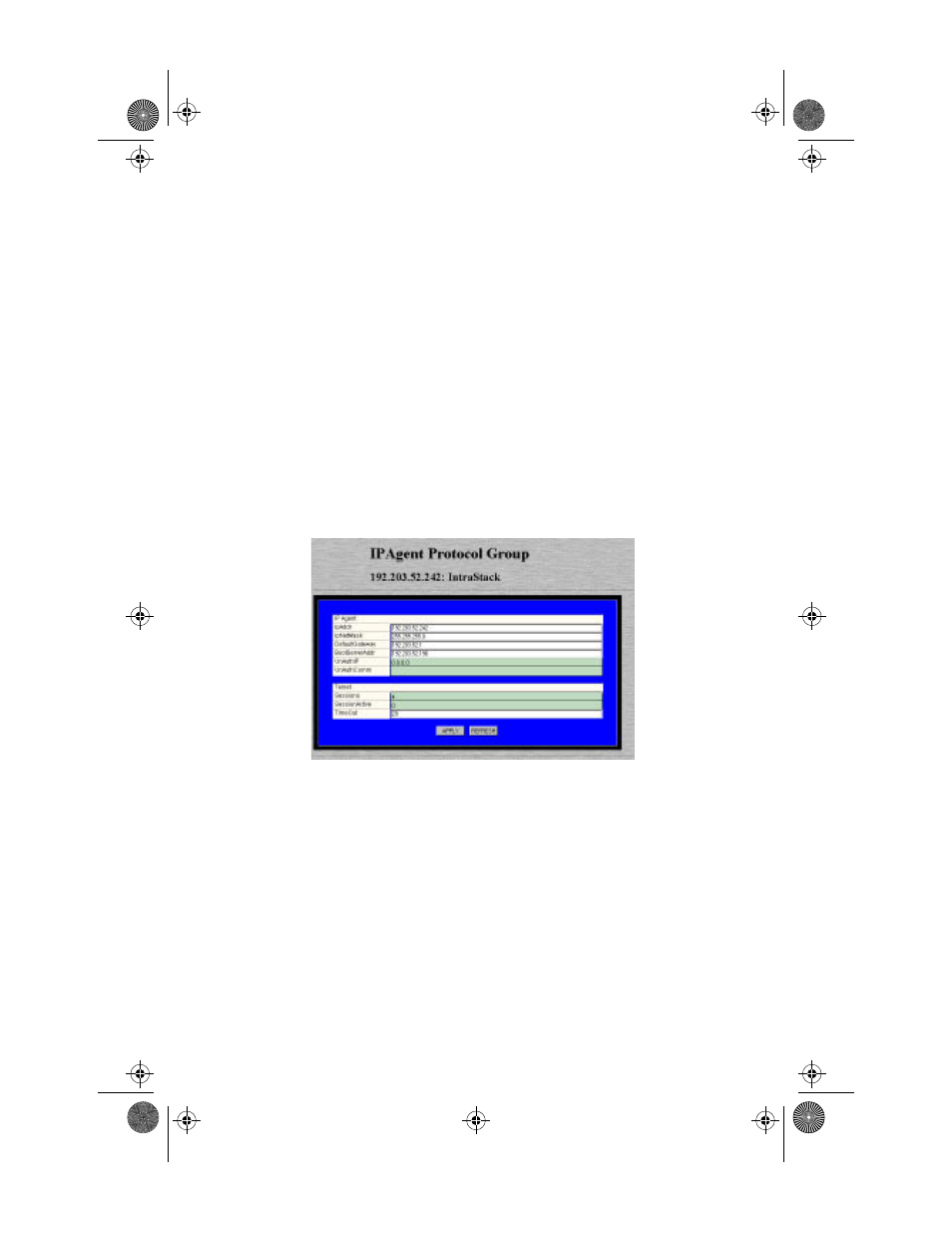

Figure 4-4
IP Agent Protocol Group table
3
Click once in the IP Agent field to be edited.
▲
Important:
Only those fields that are colored
white can be edited.
For a description of each field, see “IP Agent “ on page 5-7.
4
Type the new information.
5
Click
Apply.
The IntraStack’s IP information is configured. Click
Refresh to view updated information.
