Management
Page 4-30
Viewing Statistics
There are two groups of statistics with the IntraStack 6000 Series Per-
sonality Module:
❏
Counter Statistics (such as broadcast packets, frag-
ments, and collisions)
❏ Packet Statistics
Both groups of statistics can be viewed in two different formats: table or
graph.
▲
Important: Statistics are available at the port-level
only.
This section describes how to view counter and packet statistics in both
table and graph formats.
Viewing Counter Statistics (Table Format)
To view counter statistics in a table format:
1
Select a port for which statistics are to be gathered by
clicking on it once..
▲ Important: Statistics can be viewed at the port-
level only.
2
Click Table.
Counter statistics appear for the selected port, similar to
Figure 4-18.

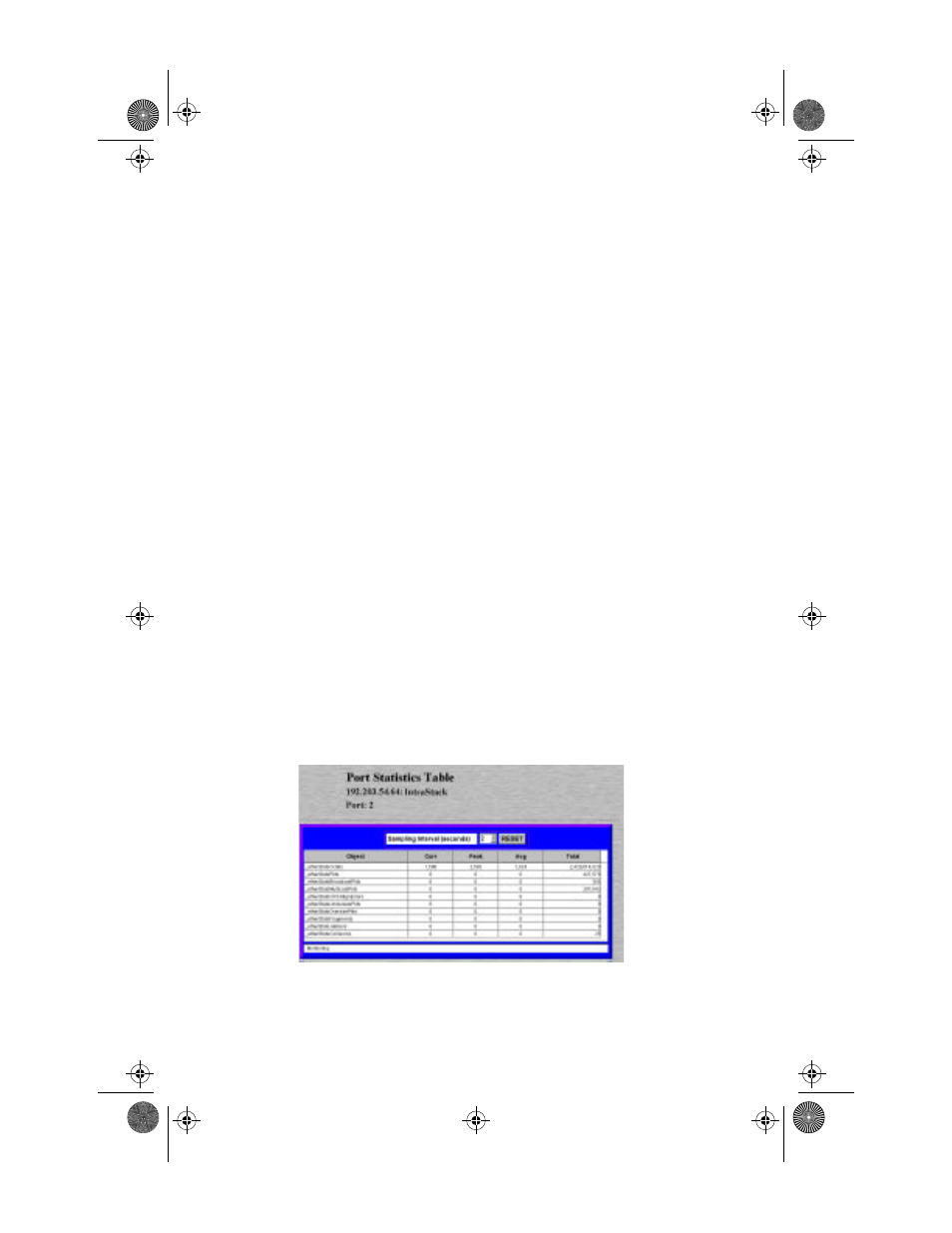

Figure 4-18 Counter Statistics (table format)
For a description of each object, see “Objects” on page 5-
27.
