Training Manual
MOD 30ML Diagnostics Lab
4 - 10

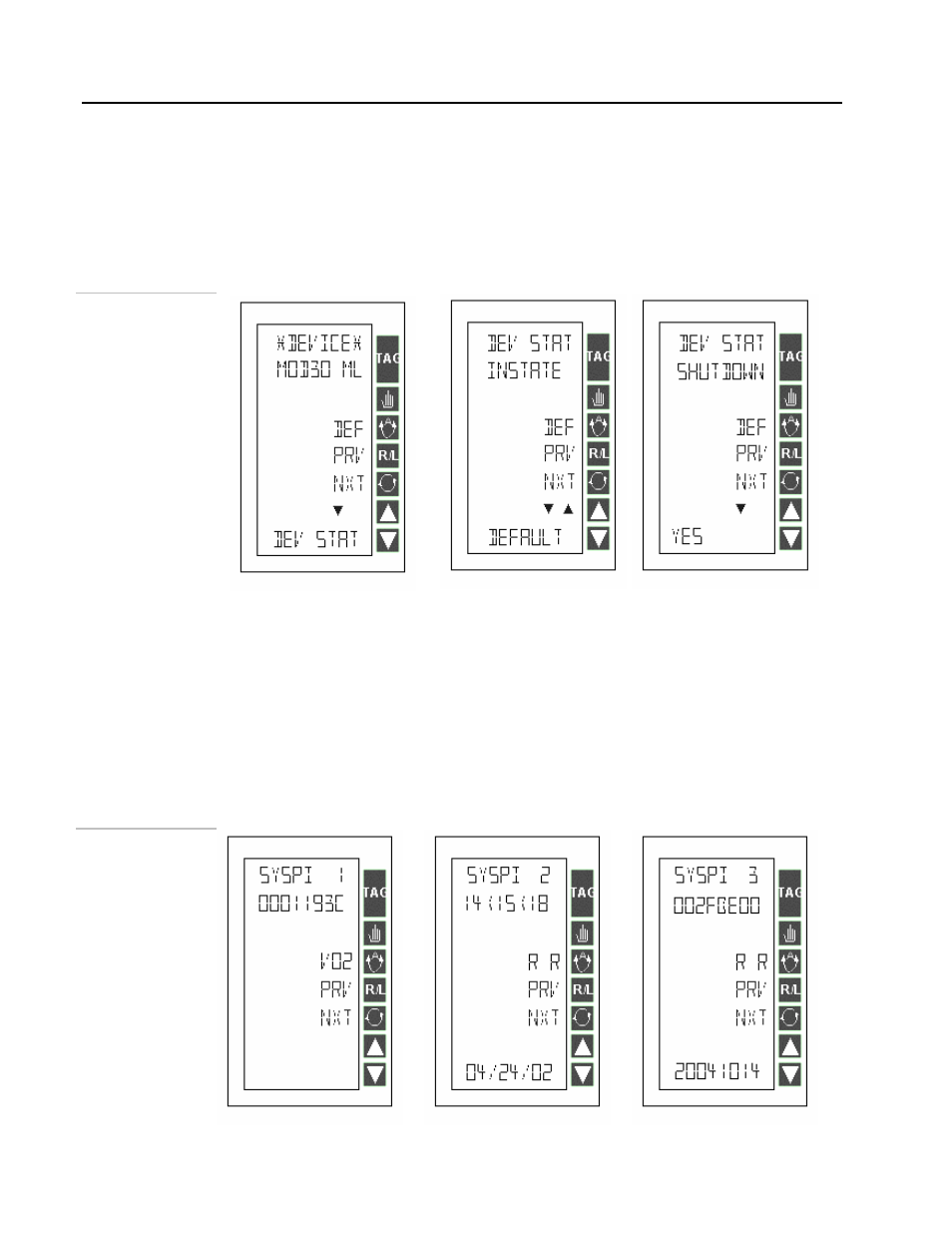

3 Press the TAG button after viewing
and acknowledging the alarms. The instrument will display the DEVICE display.
Line 6 will show DEV STAT. See the middle
picture in the next figure.
4 Press the DOWN arrow to enter the
DEV STAT menu. The first page in this menu shows the Instrument’s
state as shown in the last picture in the next figure.
The device state is DEFAULT after a SHUTDOWN.
Figure 4 .9.
5 Press the NXT to view the
SHUTDOWN page. Line 2 will display SHUTDOWN and line 6 will display
YES
. This indicates that a Shutdown condition
exists. See the above figure.
6 Press the DOWN arrow to view
details of the shut down.
Record this shutdown information on
the form at the end of this chapter. The Shutdown information is provided in the next 4
pages (displays).
Page 1 of the SHUTDOWN info as shown in the
next figure.
Figure 4 .10.
