1 MOD 30ML Front Face Familiarization
Lab
1.1 Foreword
Many processes involve flow control loops, whether they are in the food, pharmaceutical,
chemical, pulp & paper, mining or virtually any of the industries served by MODCELL
Multi-loop Processors. This lab is designed to help you learn the basic features of the
Application Builder, as well as how to easily demonstrate configuration of a PID loop.
1.2 Objectives
In this lab we will download a simple PID control database from a memory module to the
MOD 30ML controller and get familiarized with the controller’s front face.

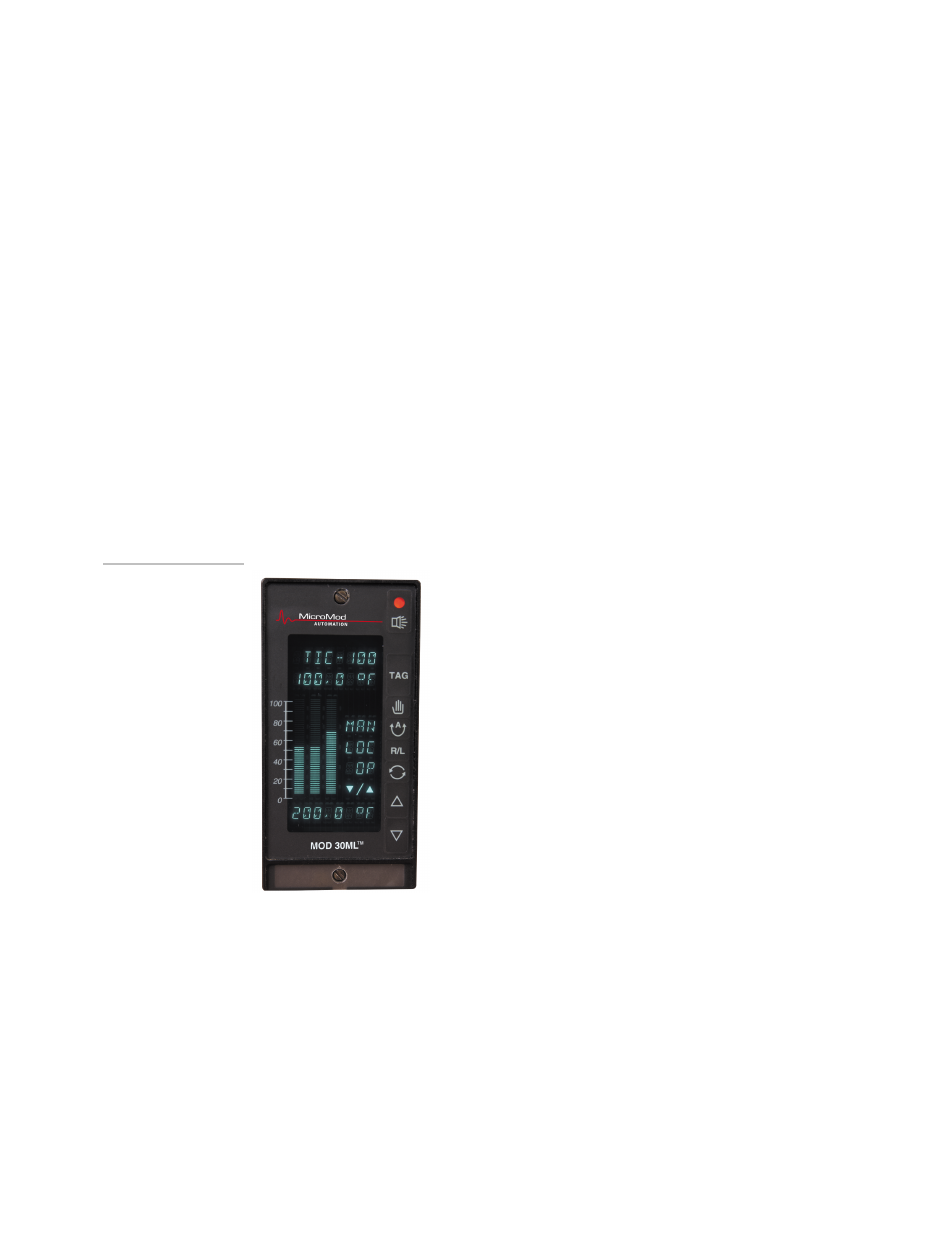

Figure 1 .1.
MOD 30ML Front
Face
After completing this lab, you should know how to download a database from a memory
module to a MOD 30ML controller and operate standard PID control loop from the front
face.
1.3 Equipment Required
You need the following equipment for this lab:
1. 1 x MOD30ML
