Training Manual
Single Loop Template Lab
3 - 15
3.3.8 Single Loop PID control template setup:
When you loaded defaults, you automatically created a “blank” loop tag which was given
the name CTAG01. We will now edit this loop.

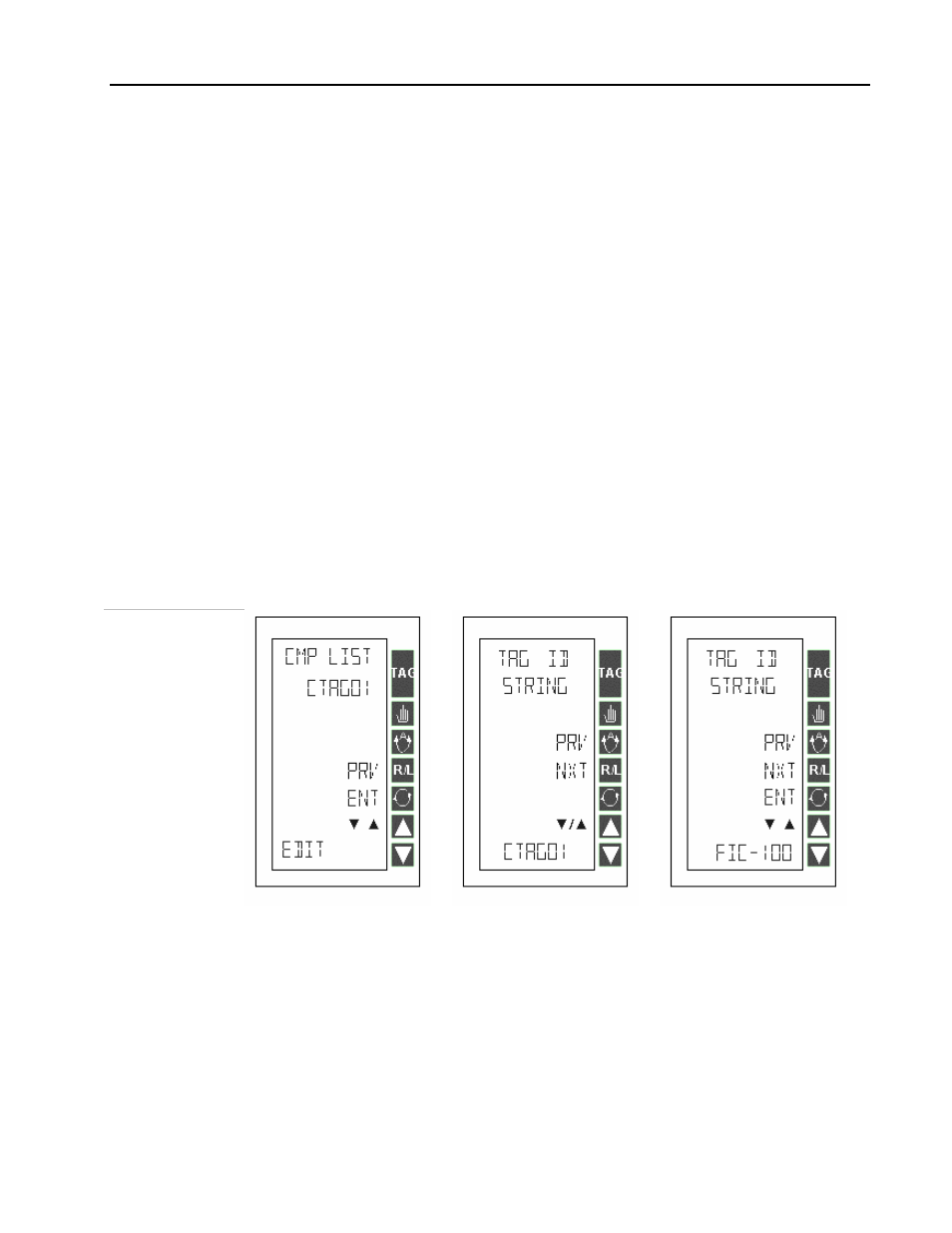

1 Press UP arrow twice to select EDIT on
line 6 and press ENT
TAG ID STRING
on lines 1 and 2. CTAG01 on
line 6.
2 Press UP arrow to change tag
characters. While display is flashing,
press UP until F is displayed DO NOT PRESS ENTER
3 Press NXT
.
4 Press DOWN until the I is displayed as
the second character
5 Press NXT
6 Use the arrow keys to make the third
character display a C.
7 Press NXT
Figure 3 .14.
8 Continue on with this sequence until you
have FIC-100 displayed, then press
ENT. Pressing ENT will enter the new tag name in the
database
9 Press NXT
FIC-100
is displayed on line 1. SNGLLOOP is
displayed on line 6. We will accept SINGLELOOP
as our controller type for this lab.
10 Press NXT
SCAN GRP 1
will be displayed on lines 2 and 6.
This is the scan group to which this loop will be
