Training Manual
MOD 30ML Diagnostics Lab
4 - 5

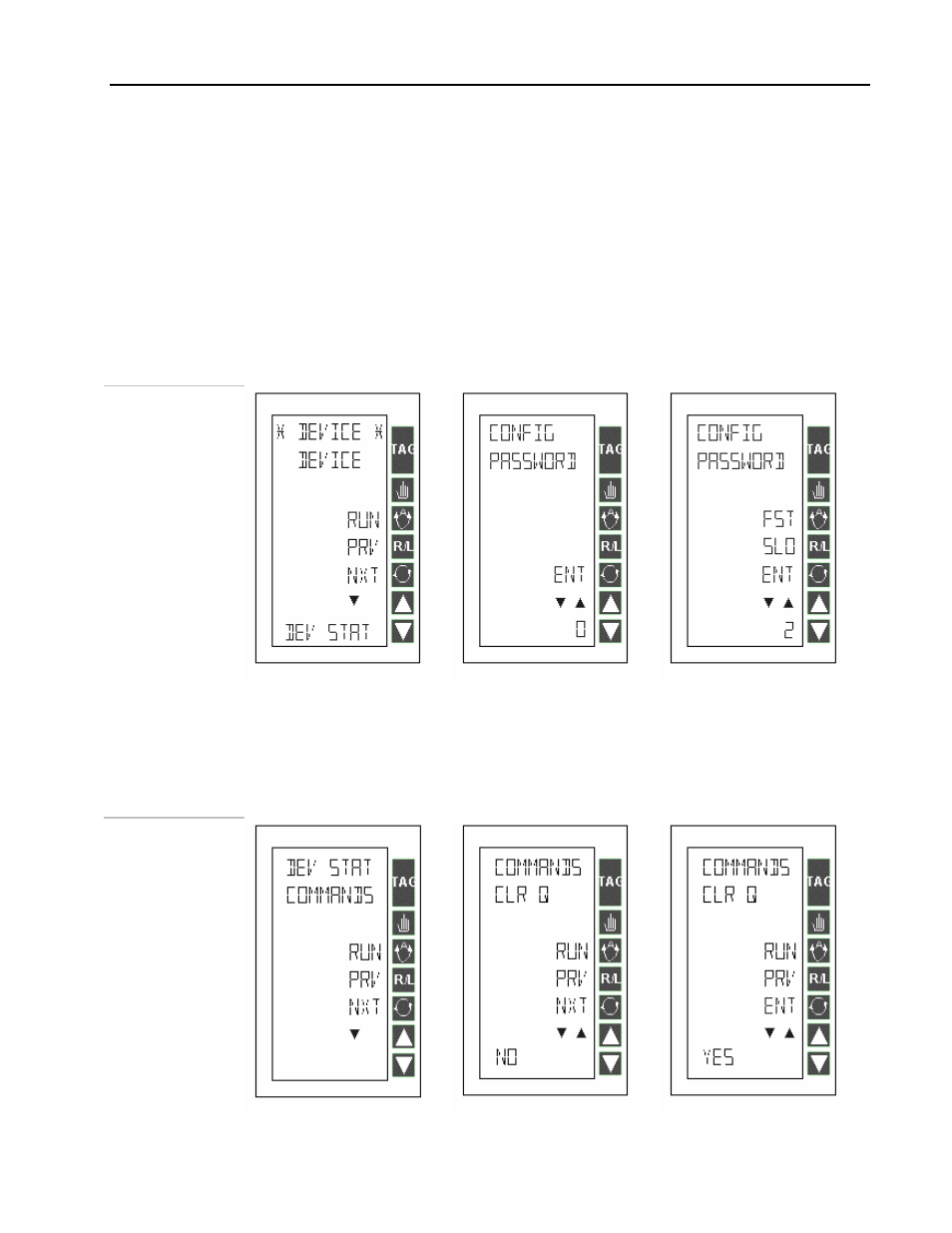

2 Press DOWN key once. If
PASSWORD
is not displayed on line 2,
go to step 5. Otherwise continue
with Step 3.
3 Use UP key three times to select the
PASSWORD and then use ENT to
enter. See the next set of figures Lines 1 and 2 will display CURRENT LEVEL and
Line 6 will display CONFIG indicating that the
controller is in configuration mode.
4 Press
ENT
again to enter
Configuration mode.
Lines 1 and 2 will display DEV STATE and
INSTATE
(Instrument state). Line 6 will display RUN
indicating that the controller is running a valid
database.
Figure 4 .4.
5 Press the NXT key until COMMANDS
is displayed on line 2. You will be in DEV STAT menu mow. See the
sequence of figures below:
You can issue commands to the controller from
this menu.
Figure 4 .5.
