4 run the batch – Micromod MOD: 30ML Controller Operation and Maintenance Training Manual User Manual
Page 19
Training Manual
MOD 30ML Operation Lab 2
2 - 7

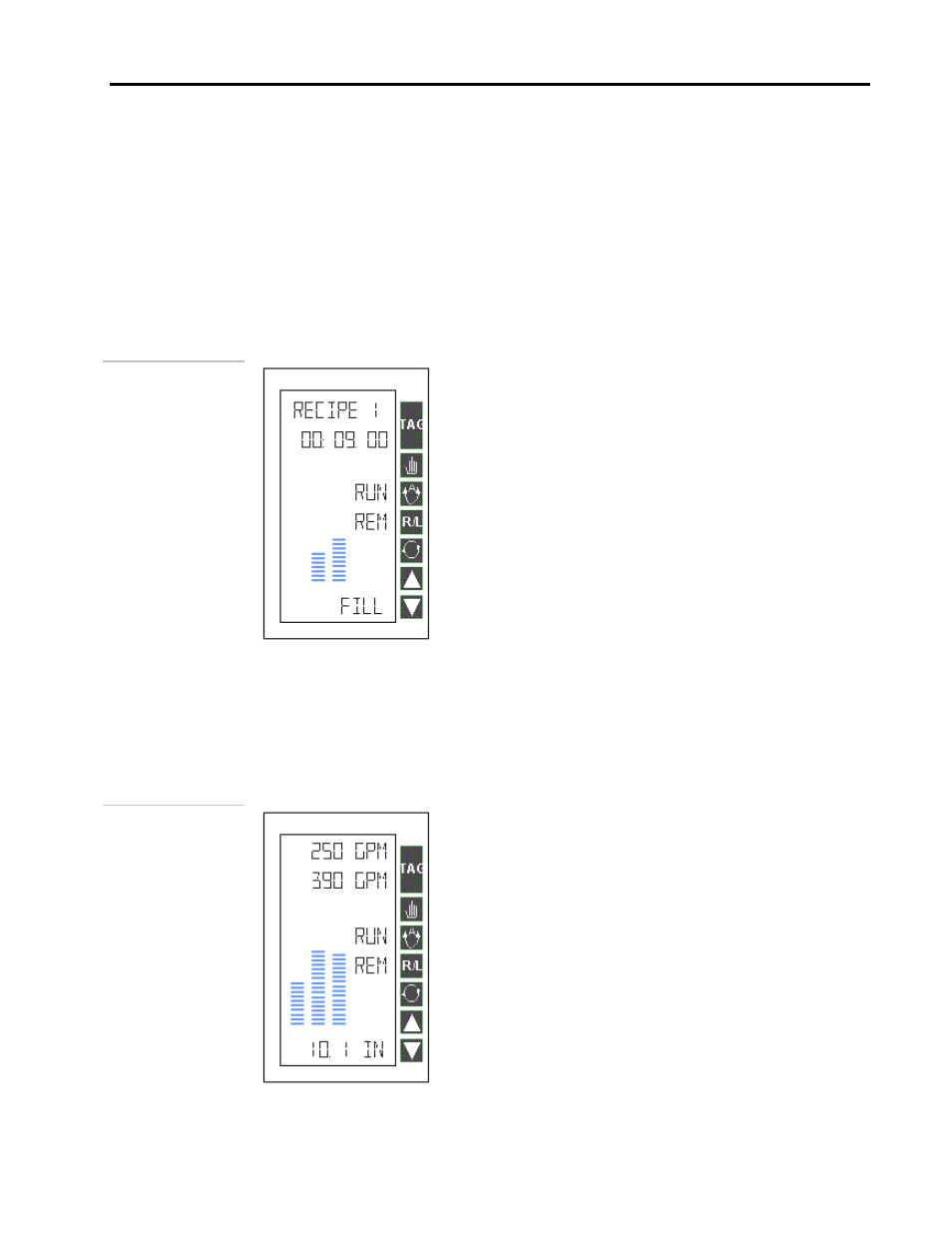

2.3.4 Run the Batch:
5
Press the TAG key to return to main
Batch display
Press AUTO key to start the batch
See the next figure.
Batch status changes to RUN
Setpoint status changes to REMOTE
Step indication on Line 6 changes to START and
then to FILL.
Figure 2 .6.
Batch main display
6
Scroll to fill display
See the next figure:
Fill A and Fill B flow rates displayed on lines 1 and
2, left and middle bar
Reactor level displayed on Line 6 and right bar
Figure 2 .7.
Batch Flow/Level
display
