Training Manual

Single Loop Template Lab

3 - 11

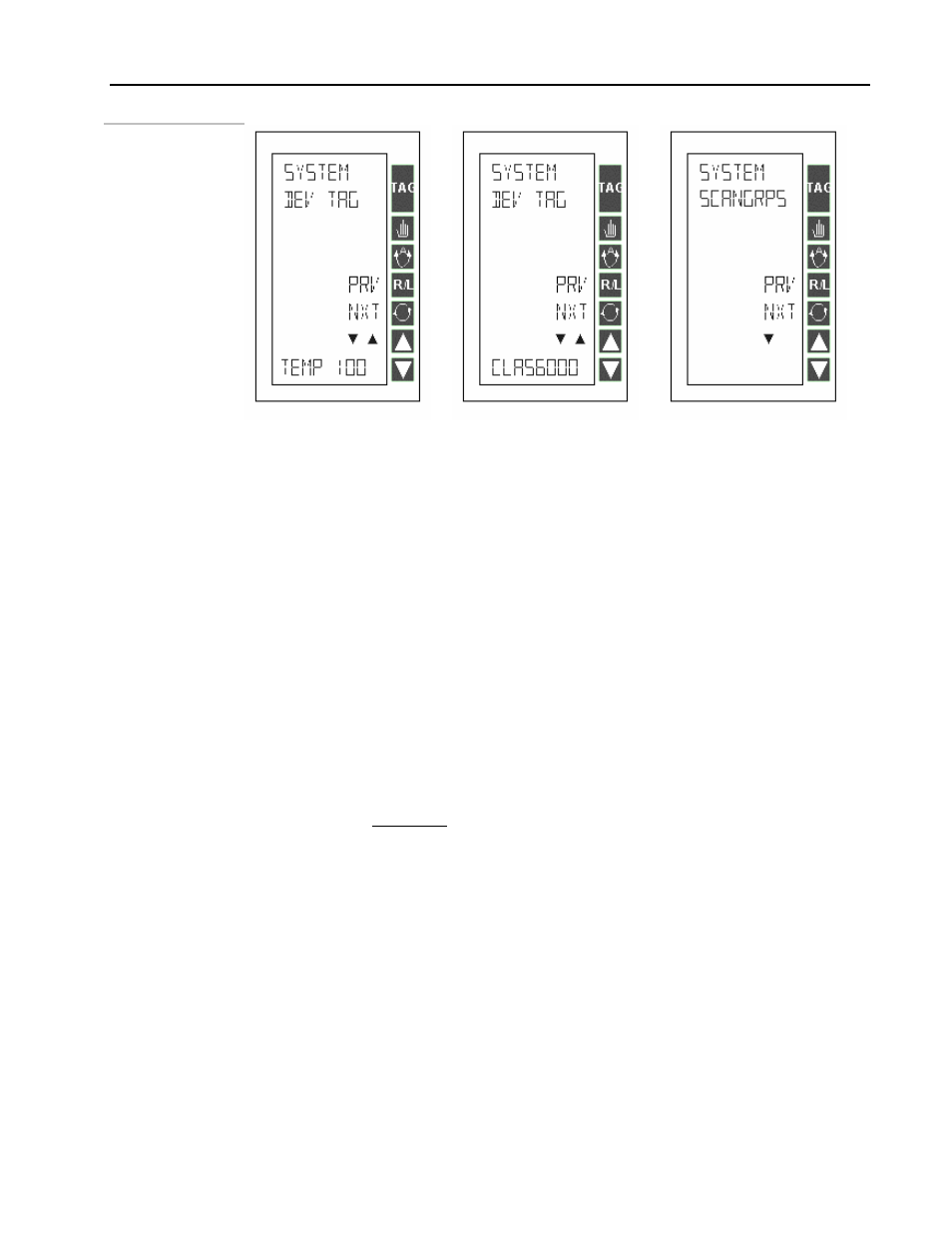

Figure 3 .11.


.

7

Press NXT to access System Scan
Groups.

Scan groups defined update intervals for
loops.

8 Press

DOWN

SYSTEM SCANGRPS

should be displayed on

lines 1 and 2. See the figure above.

The arrow key will change the Scan Group
time by 50 mSec steps. Scan groups 1
through 5 are user defined intervals for loops

Leave at 0:00.100. The fastest group has
the highest priority. The lower numbered
group has a higher priority if the interval is
the same

9 Press

NXT

SCAN GROUP 2

will be displayed on lines 1

and 2.

10

Press UP to select 0:00.300

All loops included in Scan Group 2 will
execute every 300 milliseconds

11 Press

ENT

12

Press NXT until SYSTEM is displayed in
line 1, Lines 2 and 6 are blank and the
UP arrow is on.

13

Press UP

System (Tasks Exit)

14

Press NXT

SYSTEM PASWORDS

on Lines 1 and 2.
