Training Manual
Single Loop Template Lab
3 - 13
Next, we will change some of the system alarm settings.
1 Press DOWN
DIAGNSTC RATE
is displayed on lines 1 and 2.
FAST = off 100mSec, on 300 mSec.
SLOW = off 250mSec, on 750mSec.
We will accept the FAST rate.
Alarm indication rates apply to light, display
and beeper. Alarms are: unacknowledged
diagnostics, high or low process and deviation
conditions, and input quality
2 Press NXT
DIAGNSTC FLASH
is OFF.
OFF = flashing is disabled.
ENABLE = flash display (LED always flashes
for diagnostic).
3
Press NXT.
DIAGNSTC BEEP
is OFF
OFF = beeping is disabled.
ENABLE = beep for diagnostic.
4 Press NXT
5 Set
MINIMUM LOW PRI
to 5 and press
ENT.
All process alarms with priority >= this value (2
- 255) are considered LOW priority for display
purposes.
6 Press NXT
HIGH PRI RATE
is FAST.
FAST = off 100mSec, on 300 mSec
SLOW = off 250mSec, on 750mSec
7 Press NXT
8 Set
HIGH PRI FLASH
to ENABLE and
press ENT
OFF = flashing is disabled
ENABLE = flash display on alarm

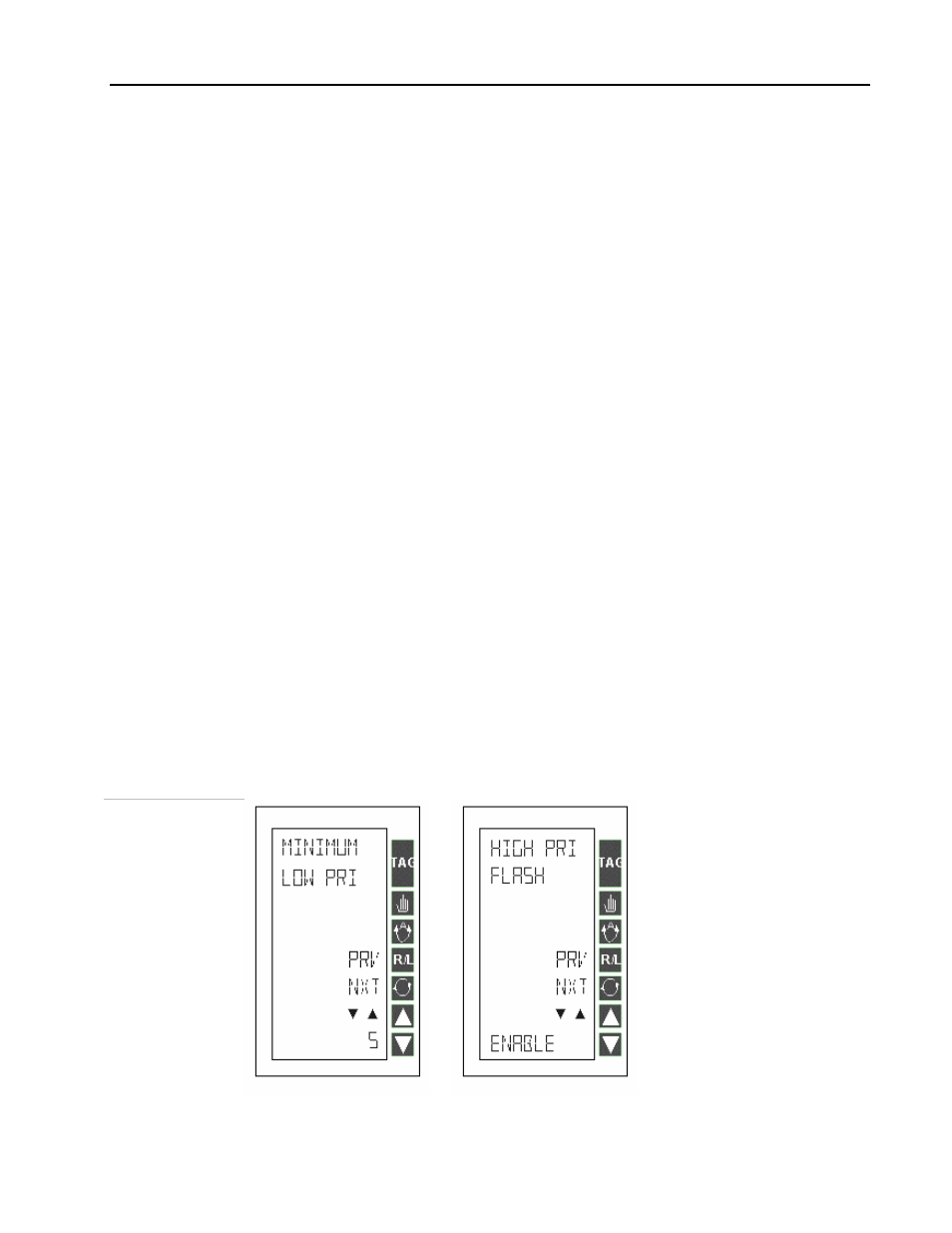

Figure 3 .13.
