Training Manual
Single Loop Template Lab
3 - 10

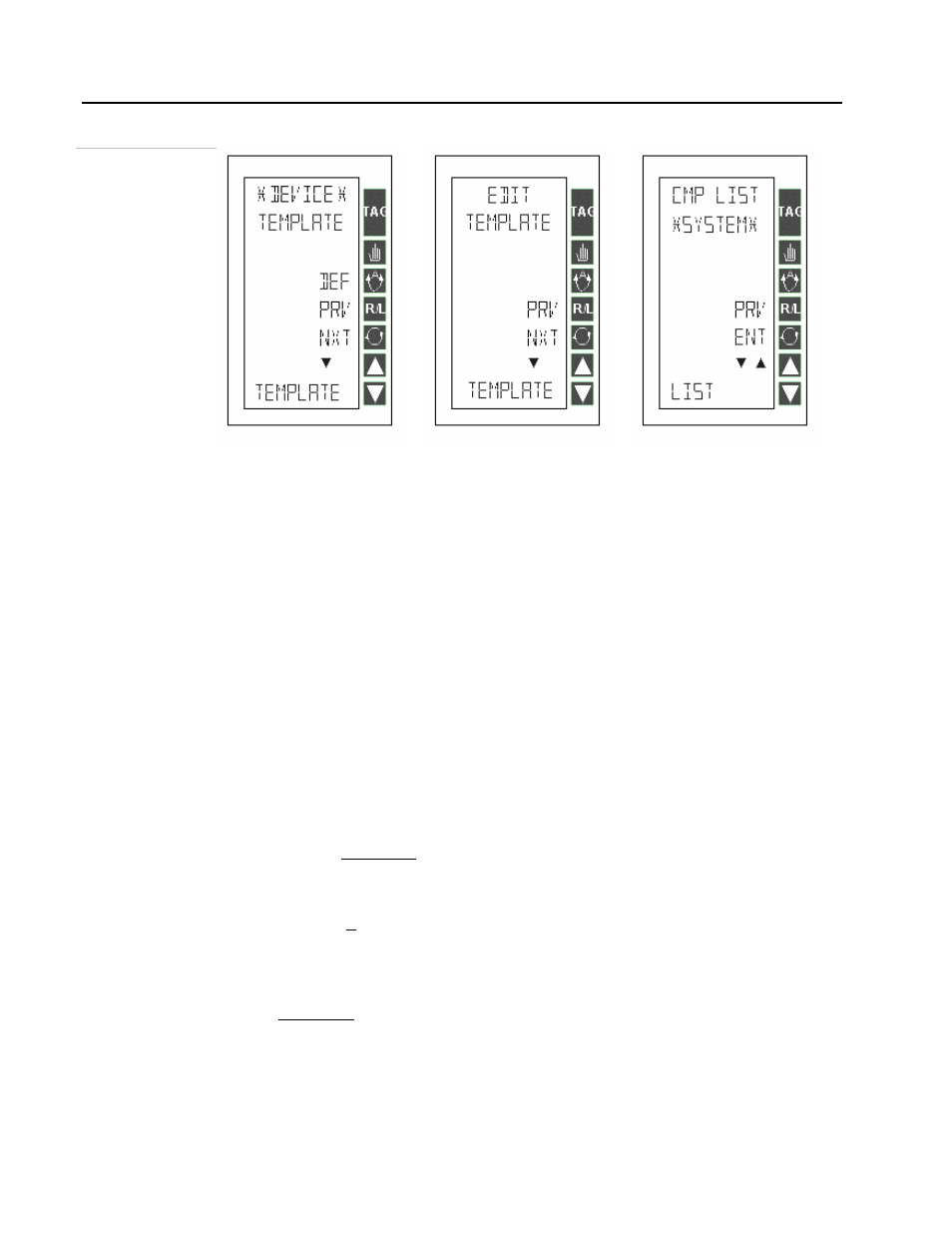

Figure 3 .10.
3.3.7 System Compound – Edit System Template:
We will change the System tag name and the system scan group 2 scan interval in this
section.
1 Use the Arrow keys to scroll through
INSERT
, EDIT, and LIST. DO NOT
PRESS ENTER
INSERT is used to add a user compound after
system compound.
LIST allows you to use the NXT key to scroll
through any configured Loop Compounds, or tags
EDIT allows you to access the compound to
change parameters
2 When
EDIT
is displayed on line 6,
press ENT
We will now edit the system compound to
establish some global parameters. SYSTEM DEV
TAG
should be displayed on lines 1 and 2. TEMP
100
, the default device tag, should be displayed
on Line 6 as shown in the next figure.
3 Use the following procedure to
change the Tag to CLAS6000:
Modify device tag using standard set of
characters. This tag identifies instrument itself, not
the individual loops in the instrument
4 Use the arrow keys to make the first
character display a C
5 Press NXT to access the second
character
Continue on with this sequence until
you have CLAS6000 displayed See the next figure.
6 Press ENT
