Micromod MOD: MODCELL Multiloop Processor 2002N Model C and Associated Hardware User Manual
Page 48
MODCELL Multiloop Processor
ELECTRICAL CONNECTIONS
3.6.3 2007A Nonisolated Digital Output (DOM)
Make nonisolated digital output connections as shown in Figure 3-12. Output
specifications are:
DIGITAL OUTPUTS (NONISOLATED)
Output voltage range
+5 to +24 VDC
Max Output current
100 mA DC
Response time
100 usec

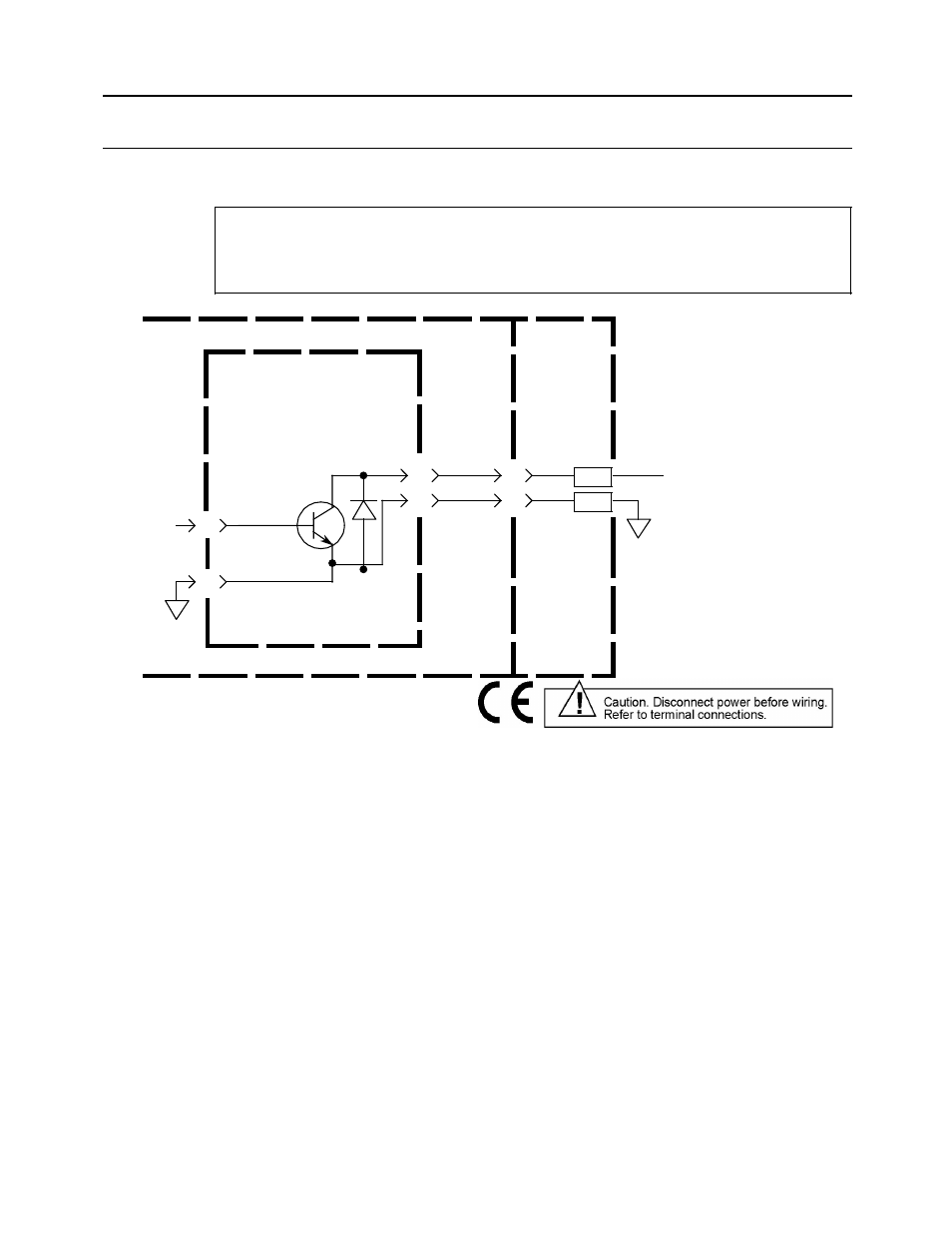

Figure 3-1
1
. Typical Output Circuit for 2007A Nonisolated Digital Output Module
S9
Output Load
TTL or 24V, 100 mA dc Max.
BASE INSTRUMENT
UPPER
TERMINAL
HOUSING
2007A NONISOLATED
DIGITAL OUTPUT MODULE
(Module Location 9)
From Micro-
processor
1
2
1
2
5
4
4
2
