MODCELL Multiloop Processor
PRODUCT DESCRIPTION

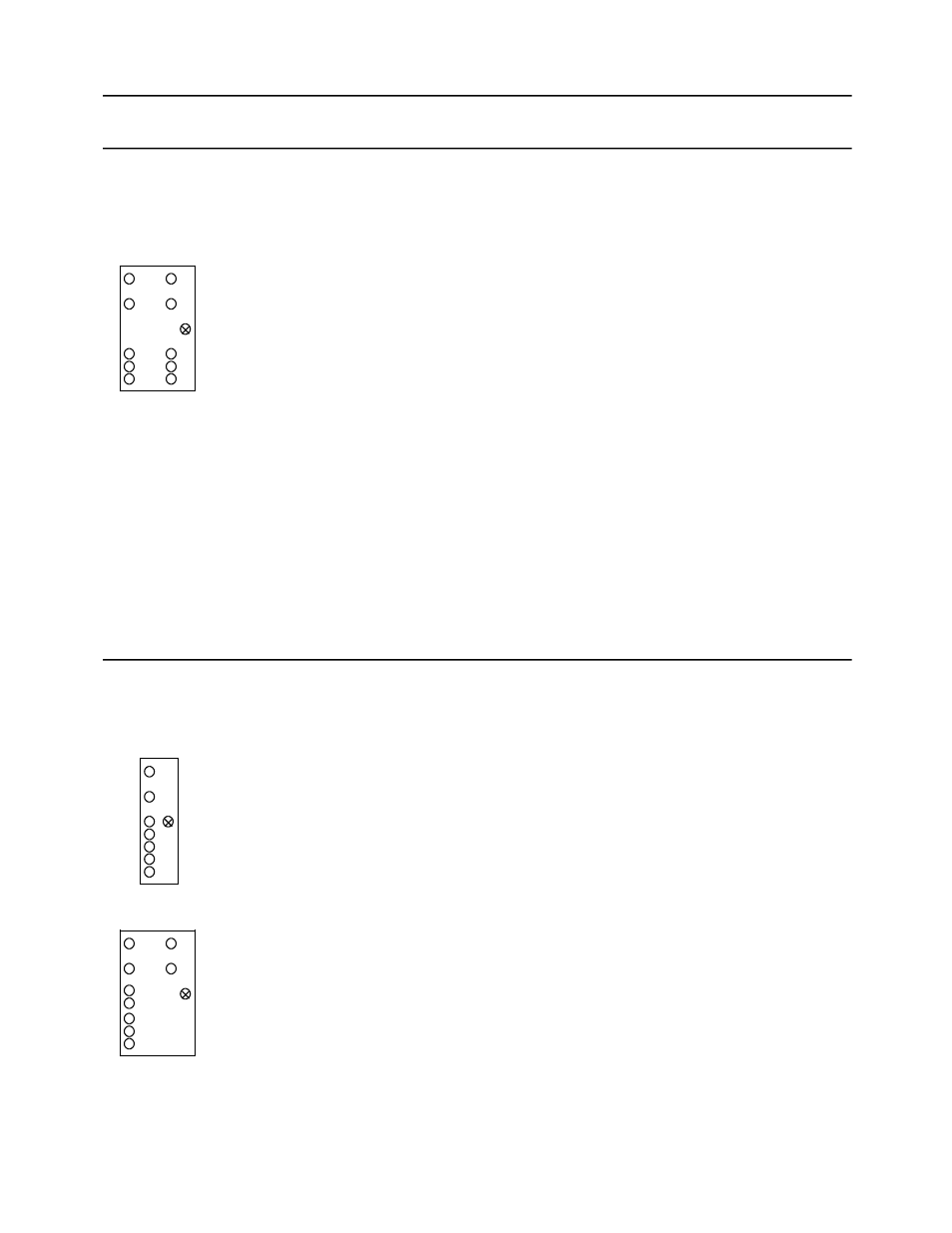

1.4.10 2011A Mechanical Relay Output Module
The Mechanical Relay Output Module may have dual SPST relays or a Form C relay.
This module uses the Dual Digital Output Module (DDOM) Block for configuration of dual
SPST output parameters or the Wide Digital Output Module (WDOM) Block for
configuration of Form C output parameters.
DDOM
WDOM
Catalog Number Description for 2011A
BASE NUMBER
2011A Mechanical Relay Output Module
UNUSED Z Unused Character
ELECTRICAL CODE 10 General Purpose, standard
15
16
17
14
13
3
4
5
2
1
TYPE
10 Dual SPST, NO/NO
11 Dual SPST, NC/NC
12 Dual SPST, NO/NC
20 Form C
UNUSED 0 Unused Character
MODEL A Design Level
Sample Number 2011AZ10100A
1.4.11 2009A RTD Input Module
The RTD Input Module is available in two basic forms, 2-wire 0 to 4000 ohm (single wide)
and 3-wire 0 to 400 ohm (double wide). RTD sensors use the Wide Resistance Input
Module (WRIM) Block for configuration of 3-wire input parameters and the Resistance
Input Module (RIM) Block for configuration of 2-wire input parameters.
RIM
Catalog Number Description for 2009A
BASE NUMBER
2009A RTD Input Module
UNUSED Z Unused Character
ELECTRICAL CODE 10 General Purpose, standard
6
7
3
4
5
2
1
REF. RESISTANCE 1 100 Ohm (3-wire 0 to 400 only)
WRIM 2 1000 Ohm (2-wire 0 to 4000 only)
CONNECTION 2 2 Wire (0 to 4000 Ohm)
3 3 Wire (0 to 400 Ohm)
4 2 Wire CJC Sensor (1000 ohm Pt RTD)
UNUSED 0 Unused Character
14
13
6
7
3
4
5
2
1
MODEL A 1st Design Level
B 2nd Design Level
Sample Number 2009AZ10130B
