Table 4-3. Analog Input (ANI) Module
Purpose: This module is used to configure the voltage/current input signals (e.g., 0-5 volts
[0-20 mA], 1-5 volts [4-20 mA]) and how the input signals are interpreted (linear or square root
representation, with or without smoothing ). It is also used to configure the vertical axis range
(zero and span) on the display.
Title Symbol ANI Data-
point
De-
fault
Attribute
Tag Name AITAG0
AITAG1 ANI0
ANI1 A224
A225 ANI-0
ANI-1 It is an assignable 10 character name for the
analog input.
Engineering
Units AIEU0
AIEU1 ANI0
ANI1 A298
A299 PER-
CENT
(BOTH) It is assignable for units of measure the ANI
represents (e.g., GPM for gallons/minute).
WD = Watchdog

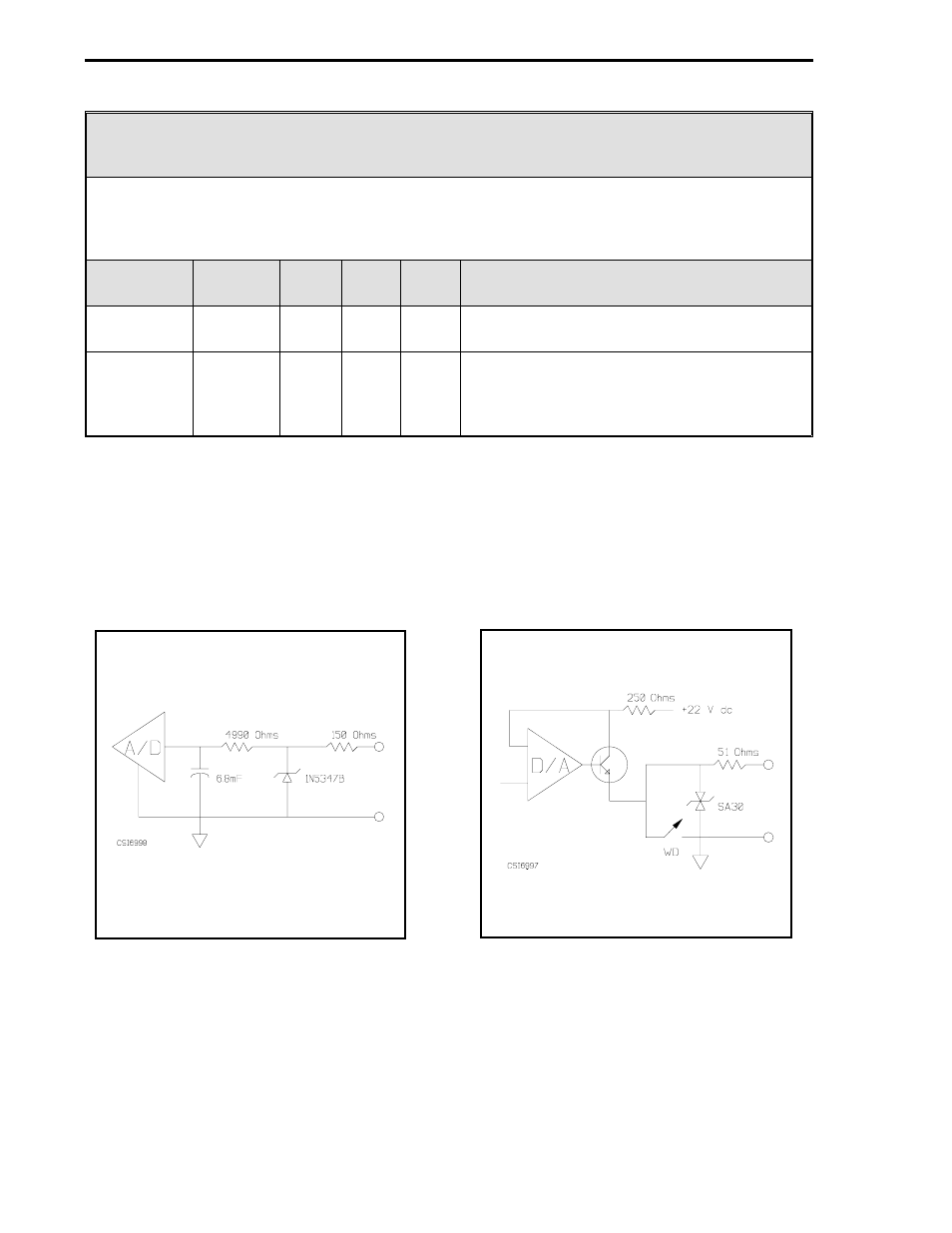

Figure 4-1. ANI0&1 Figure 4-2. ANO0&1
Note: These figures are graphical representations of the signal conditioning that occurs on the in-
strument main board. They are provided for reference purposes only.
53ML5100 Manual Loading Station
4-4
