NOTE: The Luminex

®

FLEXMAP 3D

®

Probe Height Adjustment Tool is to be

used for 384 well mylar bottom and 384 well filter bottom plates only.

To calibrate the probe correctly, perform the following steps:

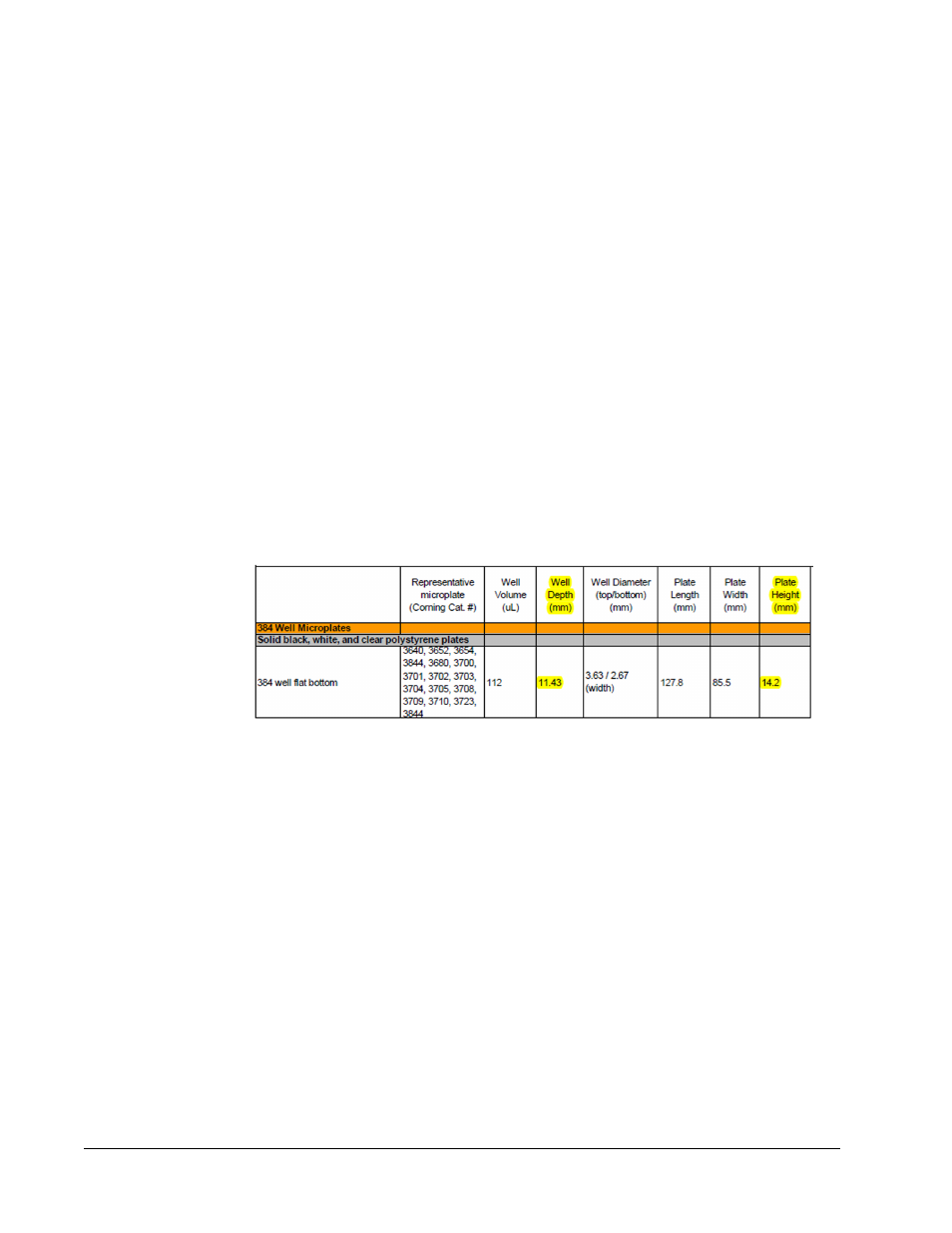

1. Using data sheet for the plate you intend to calibrate the probe to, subtract the "well

depth" from the "plate height" as shown in the example below:

Plate Height: 14.2mm - Well Depth: 11.43mm = 2.77mm (2.8mm)

Example 1: 2.8mm or well C7 on the probe height adjustment tool for this example.

Appendix D: FLEXMAP 3D

®

Probe Height

Adjustment Tool

67
