4. Check both of the fuses in the cartridge for damage. A fuse can display physical
evidence of damage, for example, broken wire or blackened glass; if it displays no
physical evidence, test it for continuity with a voltmeter.
5. Replace damaged fuses with the type specified on the sticker to the right of the power
input module.
6. Replace the red cartridge.
7. Shut the module door.
8. Plug in the power cord and turn on the FLEXMAP 3D ® instrument.
NOTE: If your FLEXMAP 3D ® instrument is not on a swivel base and it
requires moving in order for you to access the back of the
instrument, use the software to re-calibrate and re-verify the
instrument after it is restored to its original location.

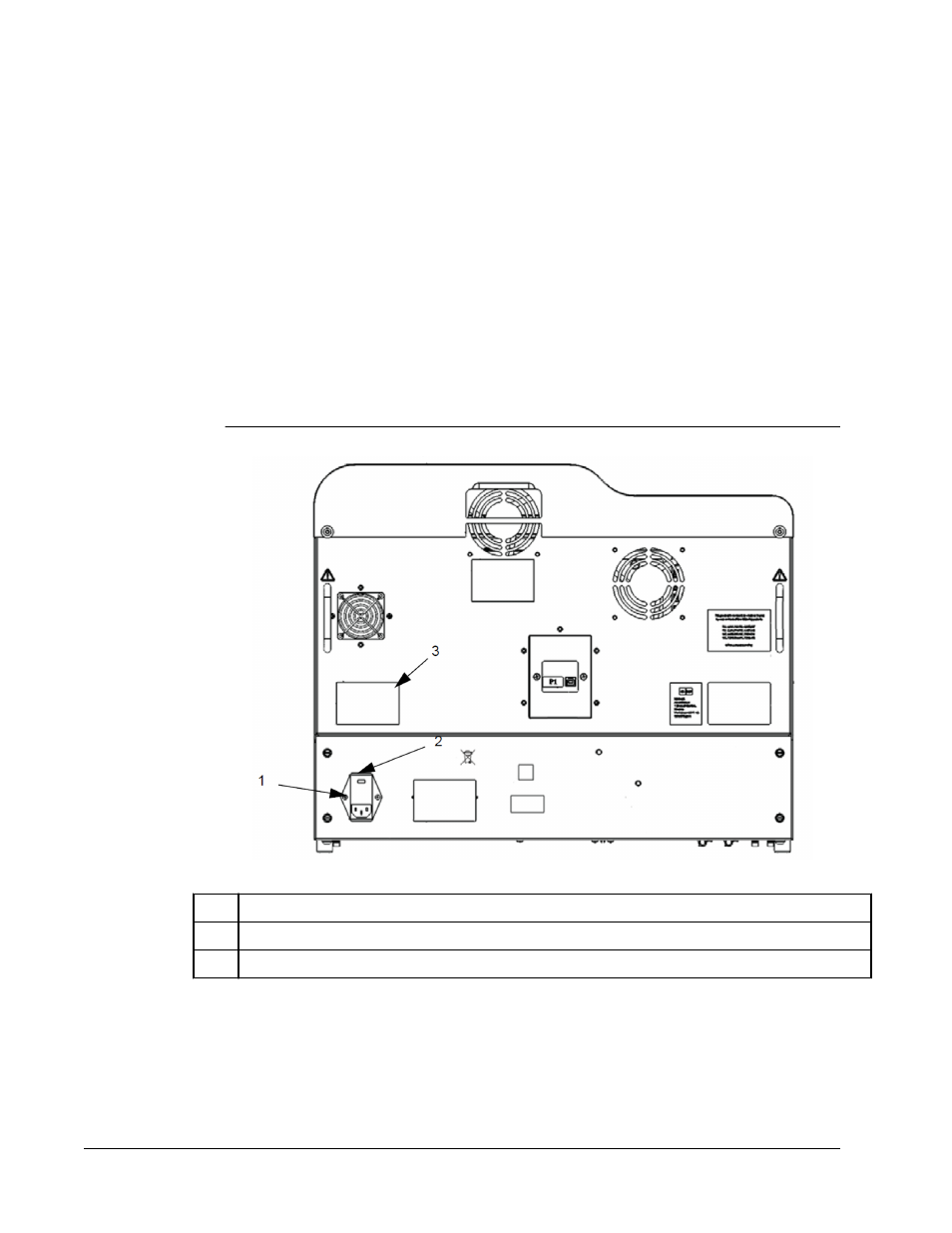

FIGURE 21. Back of the FLEXMAP 3D ® Instrument
1 Power Module
2 Location to insert screwdriver to open module door, as referenced in Step 2
3 Fuse Information
Maintenance Logs
Use the Maintenance Logs (located in Appendix E) to record maintenance information. Fill in
the dates in the first line of the table. The first table includes a sufficient number of columns
for one week (7 days). The second table includes a sufficient number of columns for monthly
Luminex ® FLEXMAP 3D ® Hardware User Manual
40
For research use only. Not for use
in diagnostic procedures.
