SP3850 Flow Computer

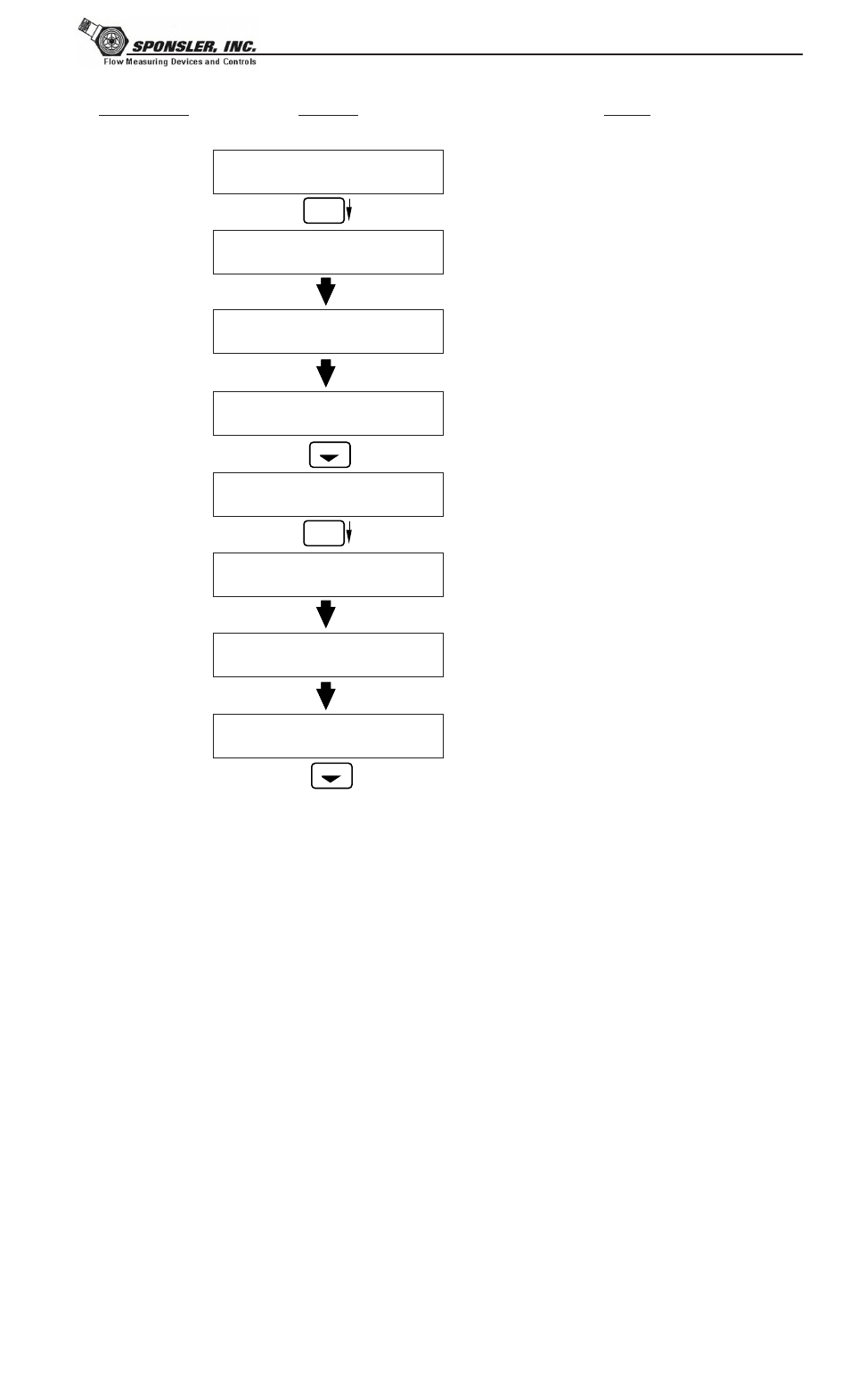

Sub-menus Display Notes
8.2.8
Calibrate Aux2: 0mA
Submenu Group
8.2.9
Calibrate Aux2:
20mA
Submenu Group
Calibrate Aux2: 0mA
Iin=TB1-8 GND=TB1-4
Calibrate Aux2: 0mA
0 CALIBRATING ——
Calibrate Aux2: 0mA
*** DONE ***
Calibrate Aux2: 0mA
Iin=TB1-8 GND=TB1-4
Calibrate Aux2: 20mA
Iin=TB1-8 GND=TB1-4
Calibrate Aux2: 20mA
0 CALIBRATING ——
Calibrate Aux2: 20mA
*** DONE ***
Calibrate Aux2: 20mA
Iin=TB1-8 GND=TB1-4
Advance to
Cal Therm: 100 Ohms
To Calibrate: Connect Current Source (+)
TB1-8, (-) TB1-4. Input 0mA and press Enter.
This message is displayed during calibration.
This message is displayed when the 0mA
calibration is finished.
The display will automatically return to the
Calibrate Aux2 0mA submenu. Press the
Down arrow key to advance to the AUX2
20mA calibration.
To Calibrate: Connect Current Source (+)
TB1-8, (-) TB1-4. Input 20mA and press
Enter.
This message is displayed during calibration.
This message is displayed when the 20mA
calibration is finished.
The display will automatically return to the
Calibrate Aux2 20mA submenu. Press the
Down arrow key to advance to the thermistor
100
Ω calibration.
ENTER
STOP
ENTER
STOP
