Page 46

Sponsler, Inc.

Model T675 Flow Totalizer

Technical Information

Pg. 43

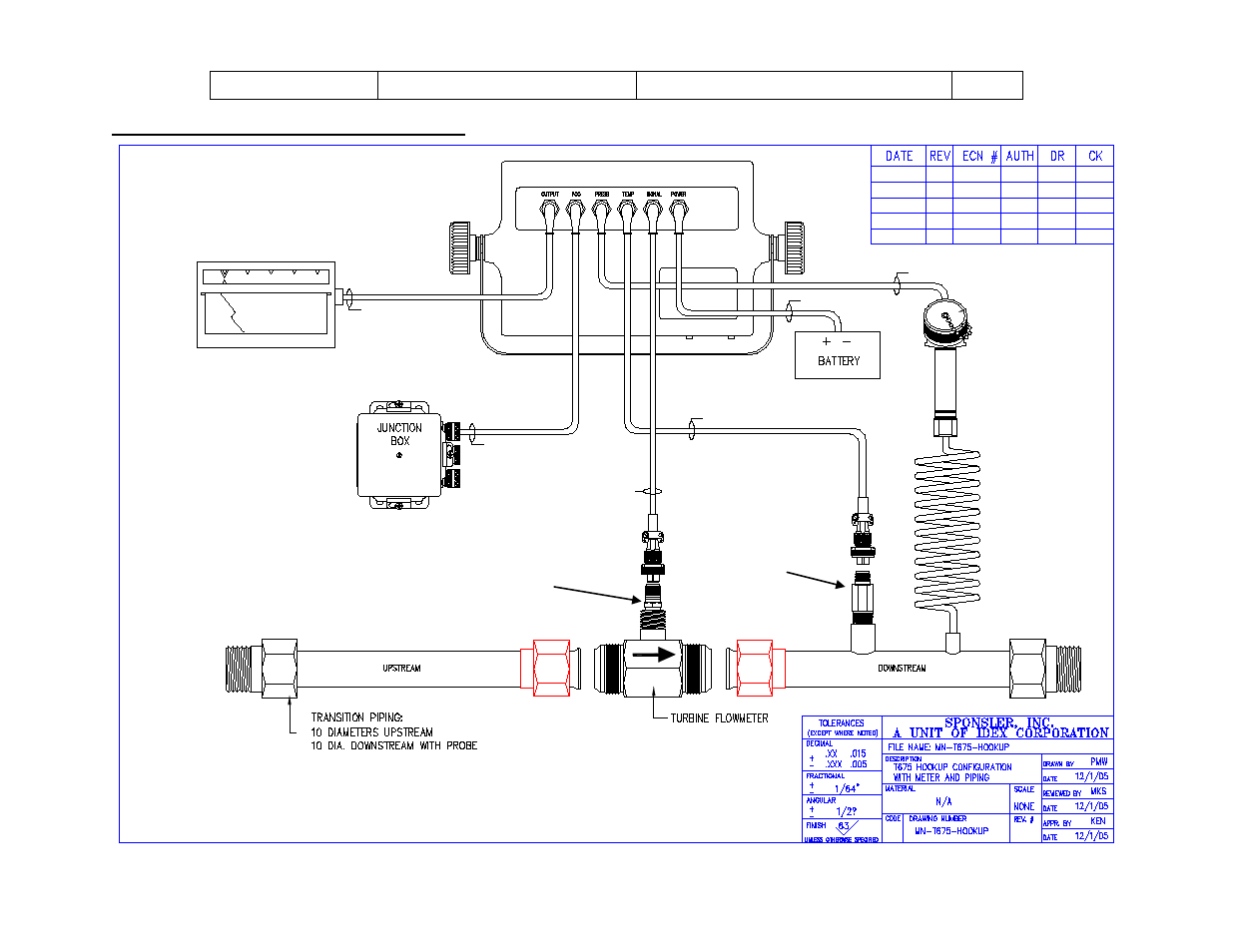

5.4.3 Delivery Components Interconnect Wiring:

T675 HOOKUP CONFIGURATION
WITH METER & PIPING

OPTIONAL PRINTER

R-3F-T8M-G-6S-16

P-T-T4F-G-3S-16

I-T-T5FW-G-5S-16*

D-9F-T5MWZ-G-4S-16 *

PCO-T-T8F-G-6S-16

S-2F-T5M-G-5S-16

or S-2F2F-T5M-G-5S-16

for dual Coil Connection

PTB Compliant Units use dual coil connections.
*OUTPUT only available on –RS2 models, Pressure input for reference only and is not used.

Pickup Coil(s)

Temperature Probe
