Sponsler, Inc. Model T675 Flow Totalizer Technical Information Pg. 42

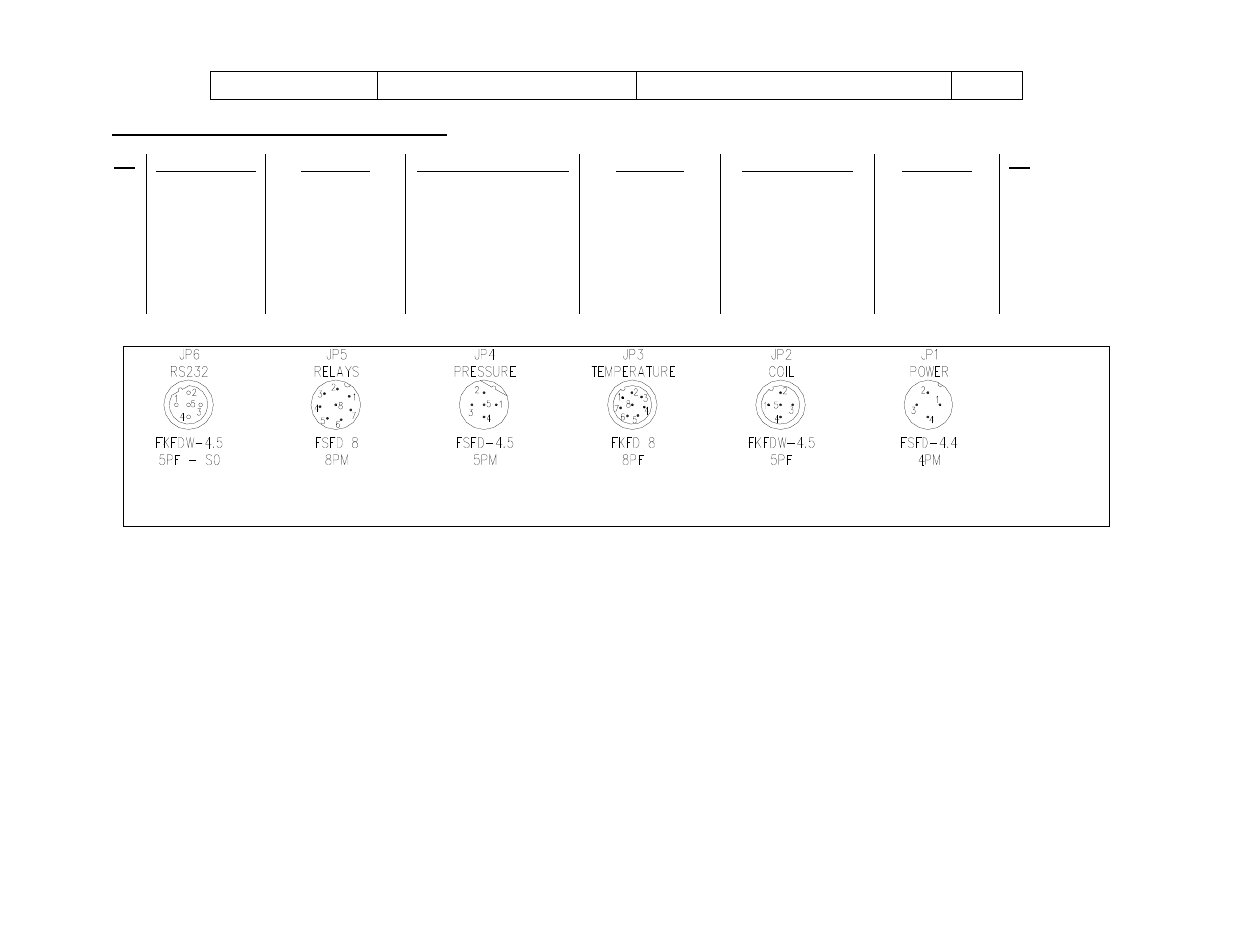

5.4.2 Rear Panel Connector Pin Assignments:
PIN WASW 4.5T-8 WKC6T-8 WWAKW 4.5T-8/618* WSC6T-8 WS4.5T-8/S653 WK4.2T-8 PIN
1 BRN-CTS BRN-PUMP N/C BRN-PCL +IN BRN-RTD S -IN BRN-COIL 1+ BRN-BATT+ 1
2 WHI-RTS WHI-PUMP C WHI-PCL –IN WHI-EXEC –OUT WHI-COIL 1- ----- 2
3 BLU-RX BLU-PUMP N/O BLU-GND BLU-EXEC +OUT BLU-COIL 2+ BLU-BATT- 3
4 BLK-TX BLK-ALARM N/C BLK-4-20MA - BLK-RTD S +IN BLK-COIL 2- ----- 4
5 GRY-GND GRY-ALARM C GRY-4-20MA + GRY-TCL –IN SHD-GND 5
6 PNK-ALARM N/O PNK-TCL +IN 6
7 ----- ----- 7
8 ----- ----- 8
*Connections for reference only: Pressure input not used. 4-20mA output not CE compliant.
