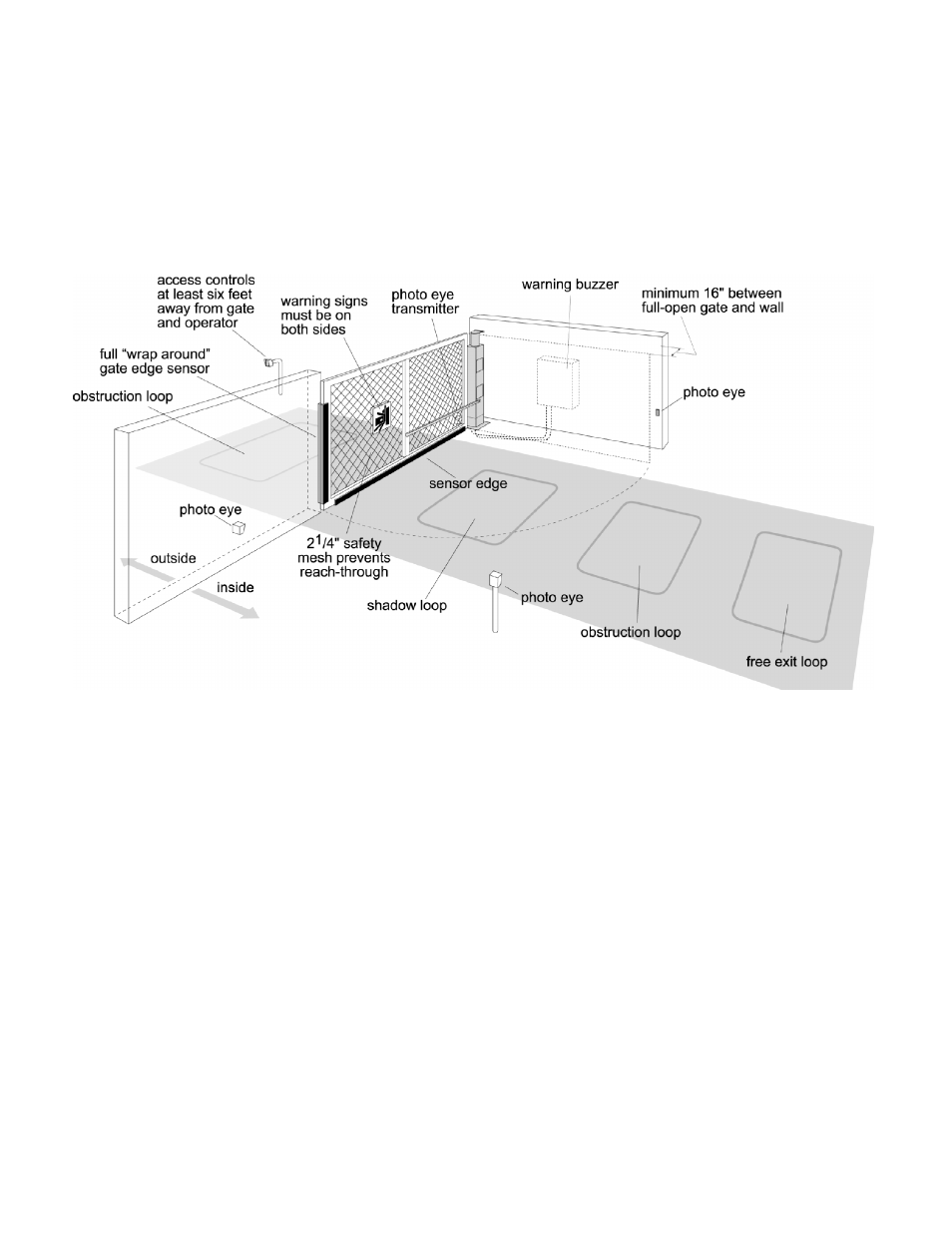

Entrapment Protection Device Schematic for Swing Gates
This schematic view is not meant to recommend the only way to set up your configuration, but to
point out the various elements of a proper automatic vehicular gate installation. The gate
operator itself is only the one component in the total system. Always install a separate
pedestrian gate.
