English 91
USC 5000/7000

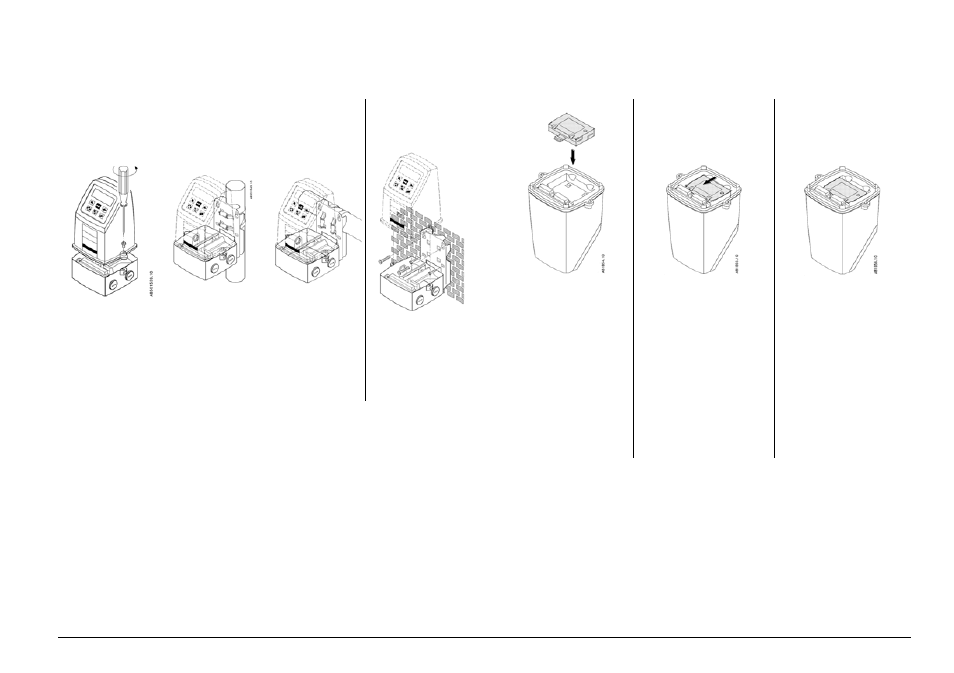

Figure 7 USC installation
Optional additional module for USC 7000
Figure 8 Optional additional module for USC 7000
Installation on a handrail
Installation on a
concrete wall
Attach the holder with help from two hose clamps
of stainless steel to a vertical or horizontal pipe. Attach the holder
with help of four
screws (maximum
8 mm or 5/16")
directly to a
concrete wall.
Unpack the additional
module and insert it into
the bottom of the signal
converter.
Push the additional
module as far possible
forward.
Make sure during this that
it does not touch the PC
board and the connectors. The additional module is
now installed and the
signal converter can be
inserted into the
terminal housing. The
connection with the
operating menu and the
electrical in- and outputs
is automatically
established as soon as
the
power is switched on.
