Assembly of the individual parts

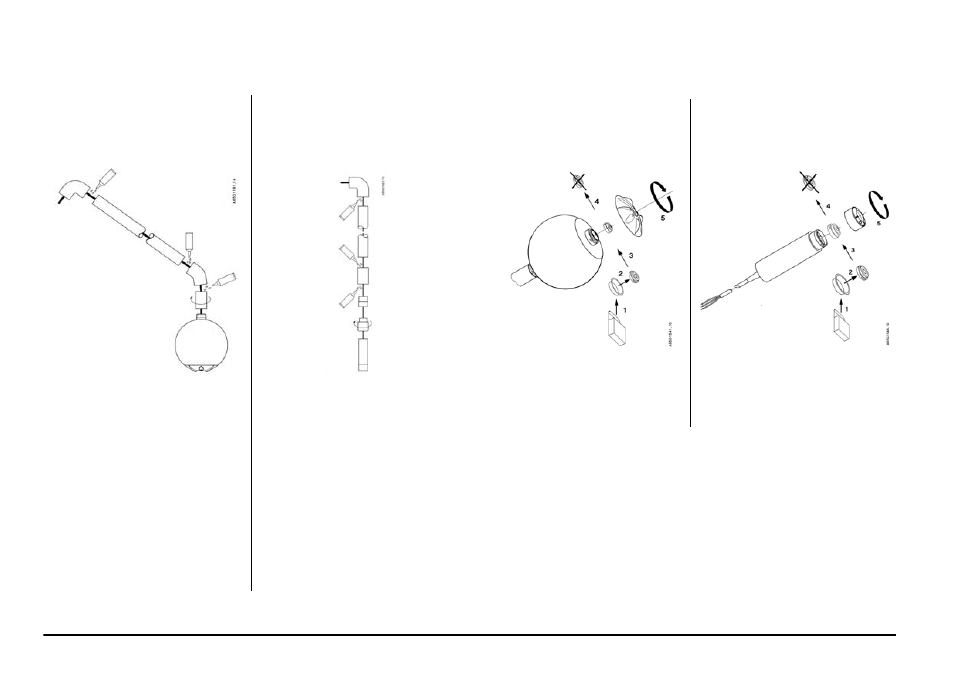

Figure 5 Assembly of the individual parts
OXY 4100 and OXY 4150/3150
Figure 6 Assembly and replacement of the sensor
Float ball assembly
Assemble the individual parts as shown
below. Probe assembly
Assemble the individual parts as shown
below.
A OXY 4100; with 1 1/4" G pipe thread A OXY 4150/3150; with 1 1/4" G
pipe thread
B is supplied together with the
transmitter B adapter (085G3325) or universal
screw connection (081B0028)
C 45° elbow piece of PVC or ABS;
inner diameter: 50 mm or 1 1/2" C is supplied together with the
transmitter
D pipe piece of PVC or ABS; 50 mm or
1 1/2" D connecting piece of PVC or ABS; inner
diameter: 50 mm or 1 1/2"
E 90° elbow piece of PVC or ABS; inner
diameter: 50 mm or 1 1/2" E pipe piece of PVC or ABS;
inner diameter: 50 mm or 1 1/2"
Q PVC or ABS adhesive F 90° elbow piece of PVC or ABS; inner
diameter: 50 mm or 1 1/2"
Q PVC or ABS adhesive
C, D, E and Q: Not included in the delivery scope
A
B
C
D
E
Q
Q
Q
A
B
C
D
E
F
Q
Q
Q
OXY 4100
Assembly and replacement of the
sensor OXY 1100 OXY 4150/3150
Assembly and replacement of the
sensor OXY 1100
Insert the sensor into the float ball.
5: Turn the screw cap round so far until
you hear a clear click. Insert the sensor into the probe.
5: Turn the screw cap round so far until
you hear a clear click.
