6 2250 Hydrostatic Level Sensor

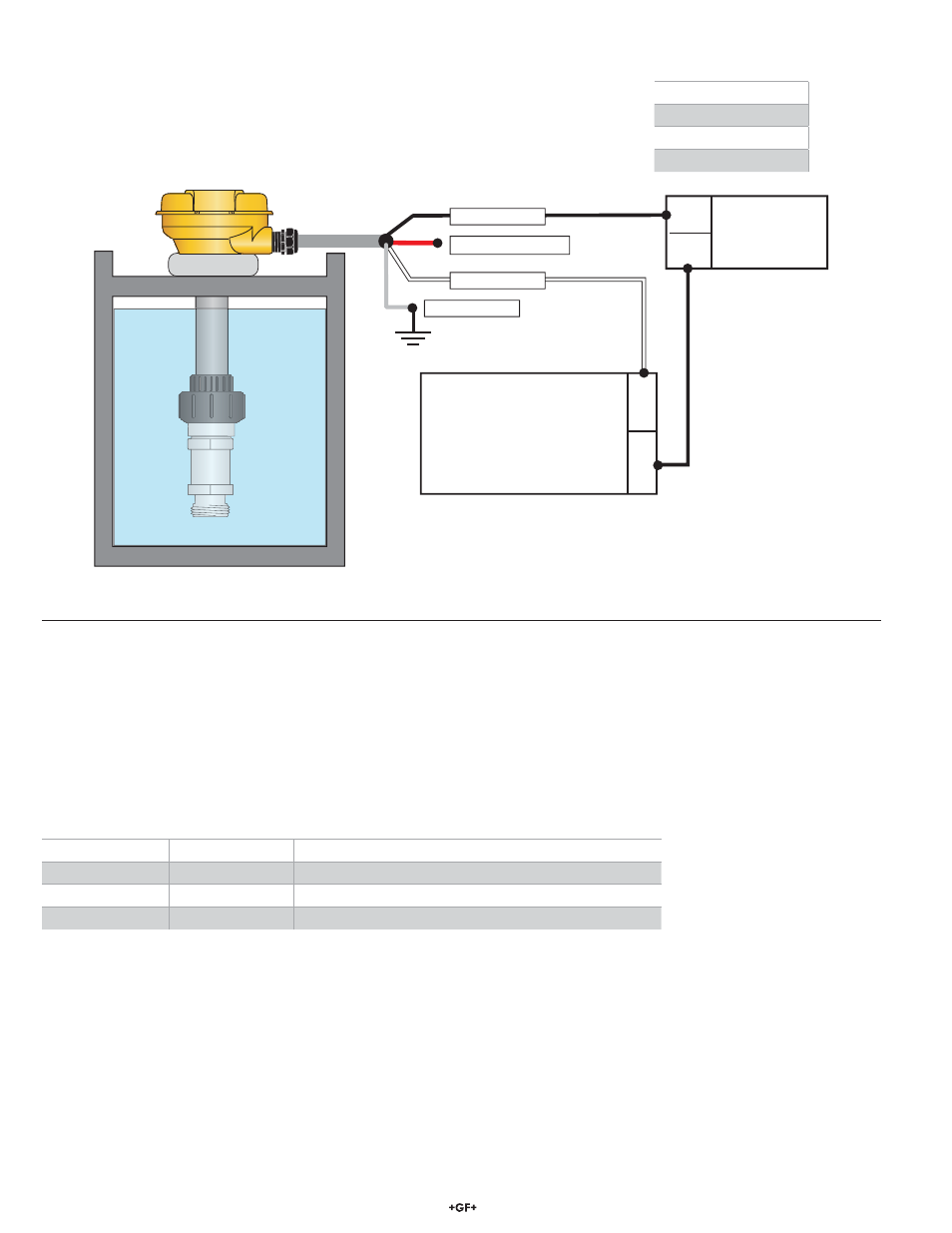

4 to 20 mA Loop Wiring
• The 3-2250-21X-X models provide a 4 to 20 mA loop output when powered with 24 VDC.
• Connecting the SHIELD to a direct Earth ground may reduce electrical noise interference.
4 to 20 mA Span
The 2250 is available in two factory-set span ranges:
• Models numbers ending with "U" or "U-1" have a factory span of 0 to 10 psig.
• Model numbers ending in "L" or "L-1" are spanned for 0 to 50 psig.
The chart below lists the factory span of all available models.
The level ranges in meters and feet are based on the mass of water.
+
-
+
-
Power Supply
DC 12 - 24 V
Black (Loop +)
White (Loop -)
Cable shield
Red (no connection)
Optional Earth ground
‡ Programmable Logic
Controller (PLC)
‡ 4-20 mA Loop Monitor
‡ Chart Recorder
‡ Datalogger
Mfr. Part No. Code 4 to 20 mA Span
3-2250-21U 159 001 248 0 to 0.7 bar (0 to 10 psig) 0 m to 7 m (0 ft to 23.09 ft)
3-2250-21L 159 001 247 0 to 3.4 bar (0 to 50 psig) 0 m to 34 m (0 ft to 115.5 ft)
3-2250-21U-1 159 001 482 0 to 0.7 bar (0 to 10 psig) 0 m to 7 m (0 ft to 23.09 ft)
3-2250-21L-1 159 001 483 0 to 3.4 bar (0 to 50 psig) 0 m to 34 m (0 ft to 115.5 ft)
4 to 20 mA Sensors
3-2250-21U
3-2250-21L
3-2250-21U-1
3-2250-21L-1
