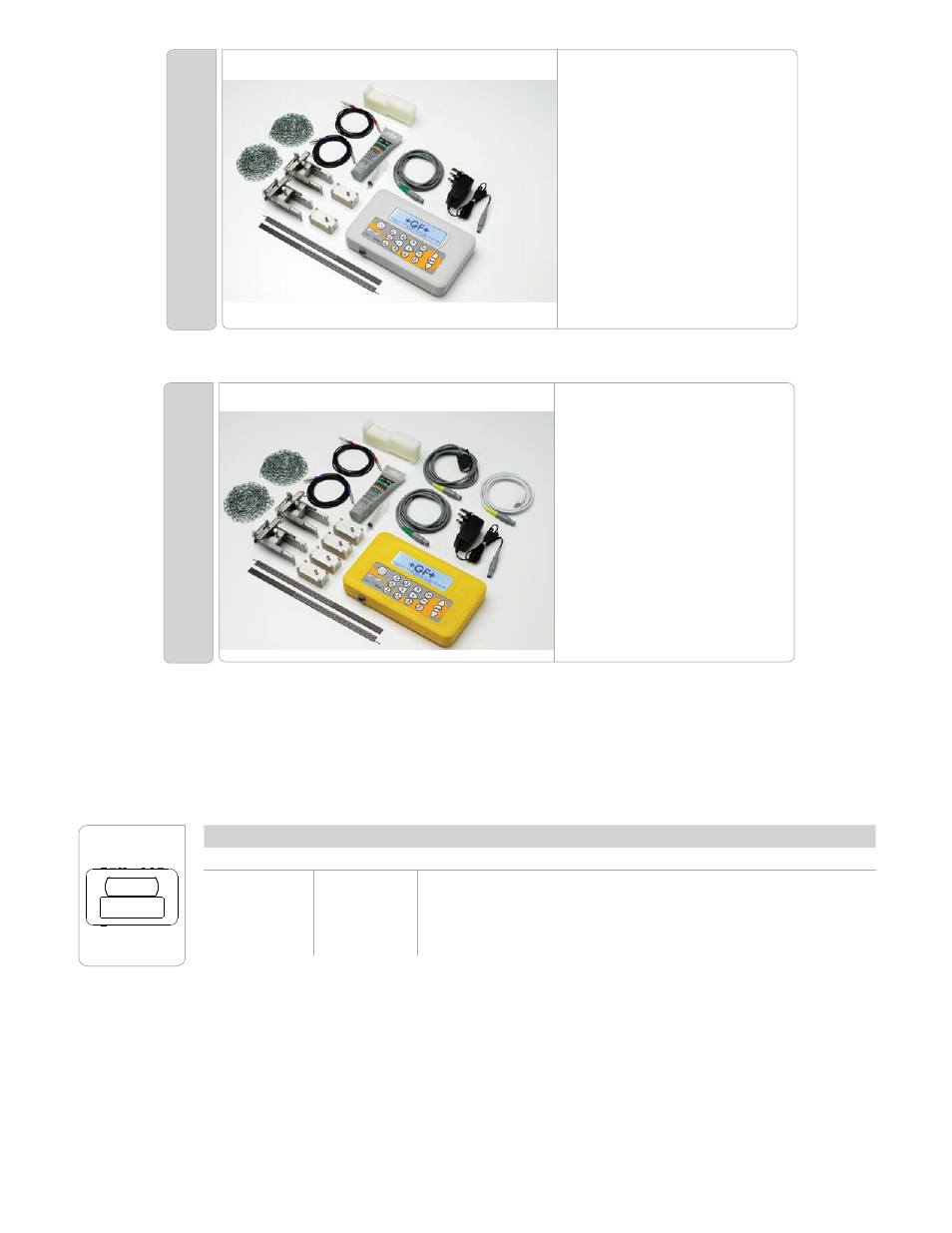

The Portaflow 330 equipment is supplied in a rugged IP67 carrying case fitted with a foam insert to give added
protection for transportation.
Sys
tem Ov
erview
330 Portable Ultrasonic Flowmeter
(1) Portaflow 330 instrument with backlit
graphic display
(2) Ruled separation bar
(3) Transducers ‘A-ST’ x2 for use with pipes
ranging 13mm – 114mm
(4) Transducers ‘B-ST’ x2 for use with pipes
ranging 115mm – 2000mm
(5) Guide Rail
(6) Chains x2 3.3 m long (10.8 ft)
(7) Transducer cables (x2) 2 metres long
(8) Test block
(9) Acoustic couplant)
(10) Output cable
(11) RS-232 cable
(12) USB cable
(13) Power supply
(14) Manual (not shown)
(12)
(11)
(13)
(10)
(8)
(9)
(2)
(6)
(7)
(5)
(1)
(3/4)
Ordering Information
Mfr. Part No. Code Description
Standard
PF 220 A
159 300 002 Portaflow PF220, for pipe OD 13 - 114 mm
PF 220 B 159 300 003 Portaflow PF220, type A transducers for pipe OD 115 - 1000 mm
PF 330 A+B 159 300 001 Portaflow PF330, type A and B transducers for pipe OD 13 - 2000 mm,
data logger
The Portaflow 220 equipment is supplied in a Polypropylene carrying case fitted with a foam insert to give added
protection for transportation.
Sys
tem Ov
erview
220 Portable Ultrasonic Flowmeter
1 - Portaflow 220 instrument
2 - Ruled separation bar
3 - Transducers ‘A-ST’ x2 for use with pipes
ranging 13mm – 114mm, or ‘B-ST’ x2
4 - Guide rail
5 - Chains x2 - 0.5 m long (1.65 ft) for A-ST, or
3.3 m long (10.8 ft) for B-ST type
transducers
6 - Transducer cables (x2) 2 metres long
7 - Test block
8 - Acoustic couplant
9 - Output cable
10 - Power supply
11 - Manual (not shown)
(1)
(10) (9)
(7)
(6)
(5)
(4)
(2)
(3)
(8)
