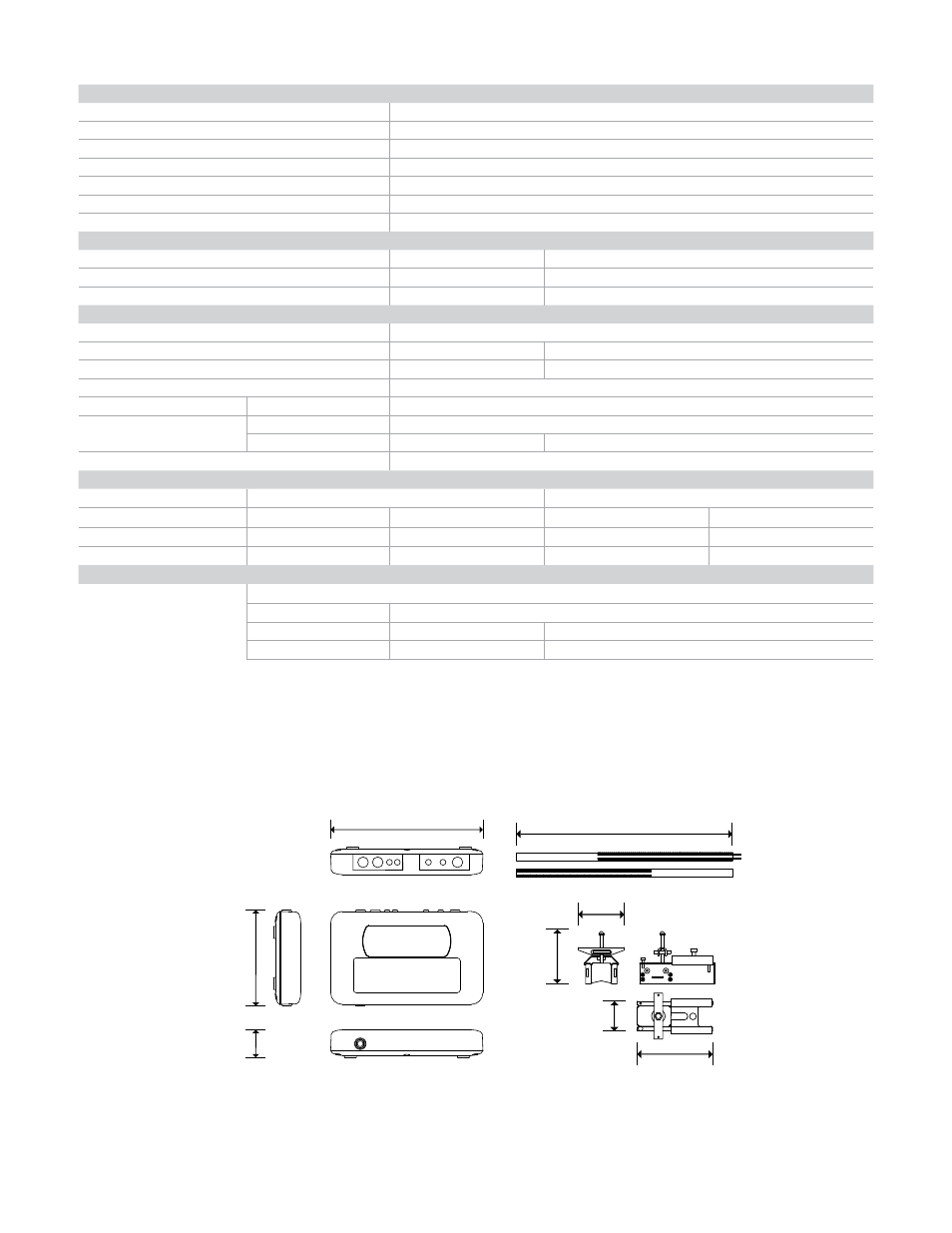

Specifications (continued)
75 mm
(2.95 in.)
264 mm (10.39 in.) 320 mm (12.59 in.)
68 mm (2.67 in.)
46.5 mm
(1.83 in.)
110 mm
(4.33 in.)
50 mm
(1.96 in.)
168 mm
(6.61 in.)
Data Logger (PF330 only)
Data Logged
Log application details, flow rate, total flow, unit, time stamp
Number of Data Points 198 k
Number of Data Sites 20
Number of Data Points per Site No limit (max. 198k)
Programmable Logging Interval 5 s - 1 h
Start / Stop Manually or timer controlled
Data Download Via RS-232 / USB interface
Transducer Sets
Type A
Type PF220 & PF330 13 - 114 mm pipe O.D. (2MHz)
Type B Type PF220 115 - 1000 mm pipe O.D. (1MHz)
Type PF330 115 - 2000 mm pipe O.D. (1MHz)
Enclosure and Display
Material
ABS
Dimensions 264 x 168 x 50 mm 10.4 x 6.6 x 2.0 inch
Weight 1.1 kg (incl. battery) 2.45 lb
Keypad 16 key tactile feedback membrane keypad
Display Type 240 x 64 pixel graphic display, high contrast black-on-white, with backlight
Viewing angle Min. 30°, typically 40°
Active area 127 x 34 mm 5 x 1.3 inch
IP Rating IP 54
Shipping Weight
PF330 PF220
Box dimensions 420 x 390 x 220 mm 16.5 x 15.4 x 8.7 inch 510 x 140 x 440 mm 20 x 5.5 x 17.3 inch
Weight 7.5 kg 16.5 lb 6 kg 13.2 lb
Volumetric Weight 5.7 kg 12.5 lb 5.2 kg 11.5 lb
Standards and Approvals
CE, RoHS compliant
Safety
BS EN 61010
EMC BS EN 61326 - 1:2006 BS EN 61326-2-3:2006
Power Supply EN61204 - 3 UL, CUL, TUV, CB, CE
Dimensions
