Exercise 4: Pasting a Rendered Image Into the Drawing
After you have rendered a 3D image you can paste it onto the drawing.
-----------------------------------------------------------------------------------------------------
Proceed as follows:
1. Render an image.
2. Click on Image in the top left-hand corner and then on Paste.
3. Name the file and where the image is to be saved.
4. Click on Save.
5. Close down the image. A 3D color image automatically appears next to the drawing.

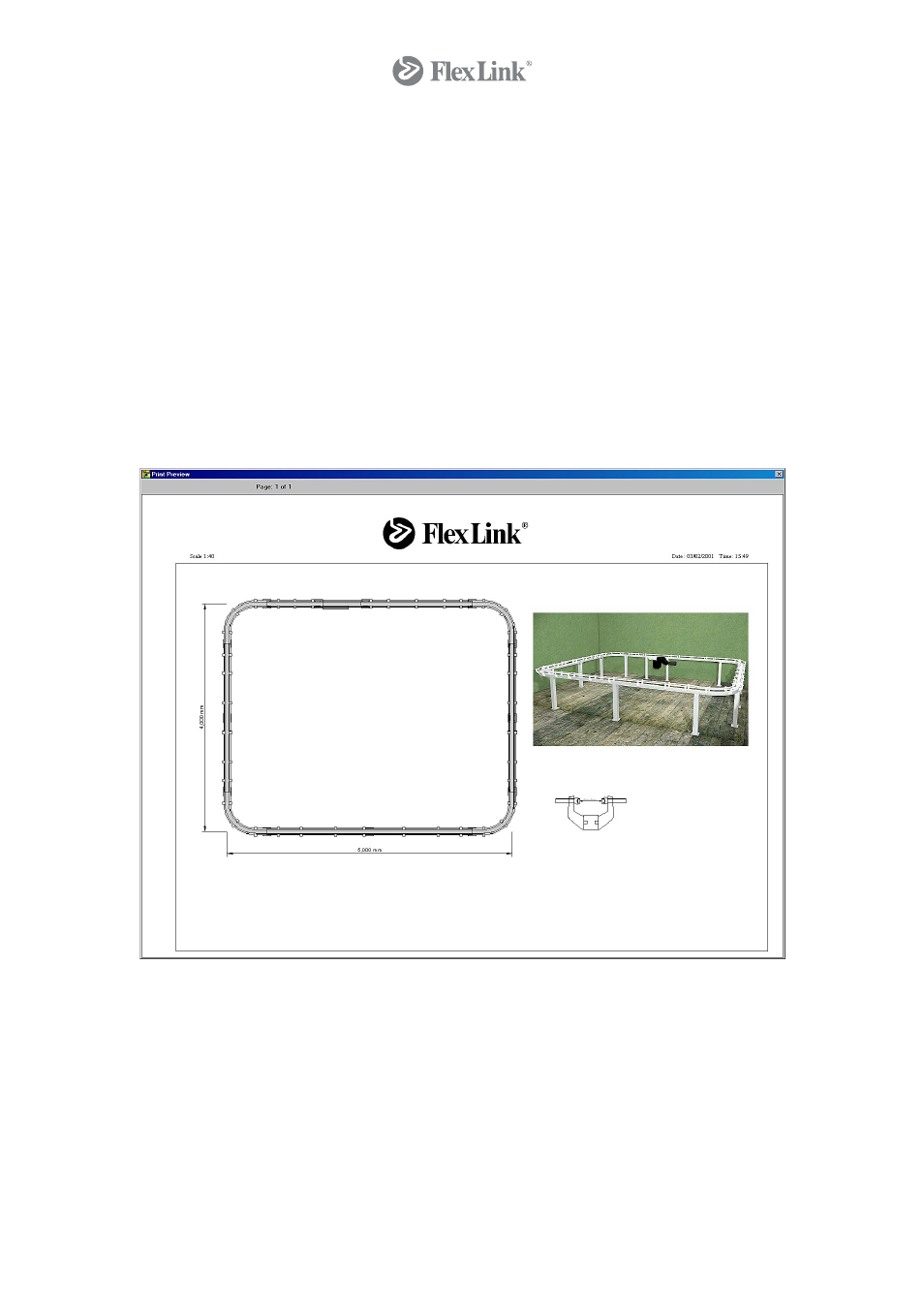

Print preview of drawing with pasted image.
