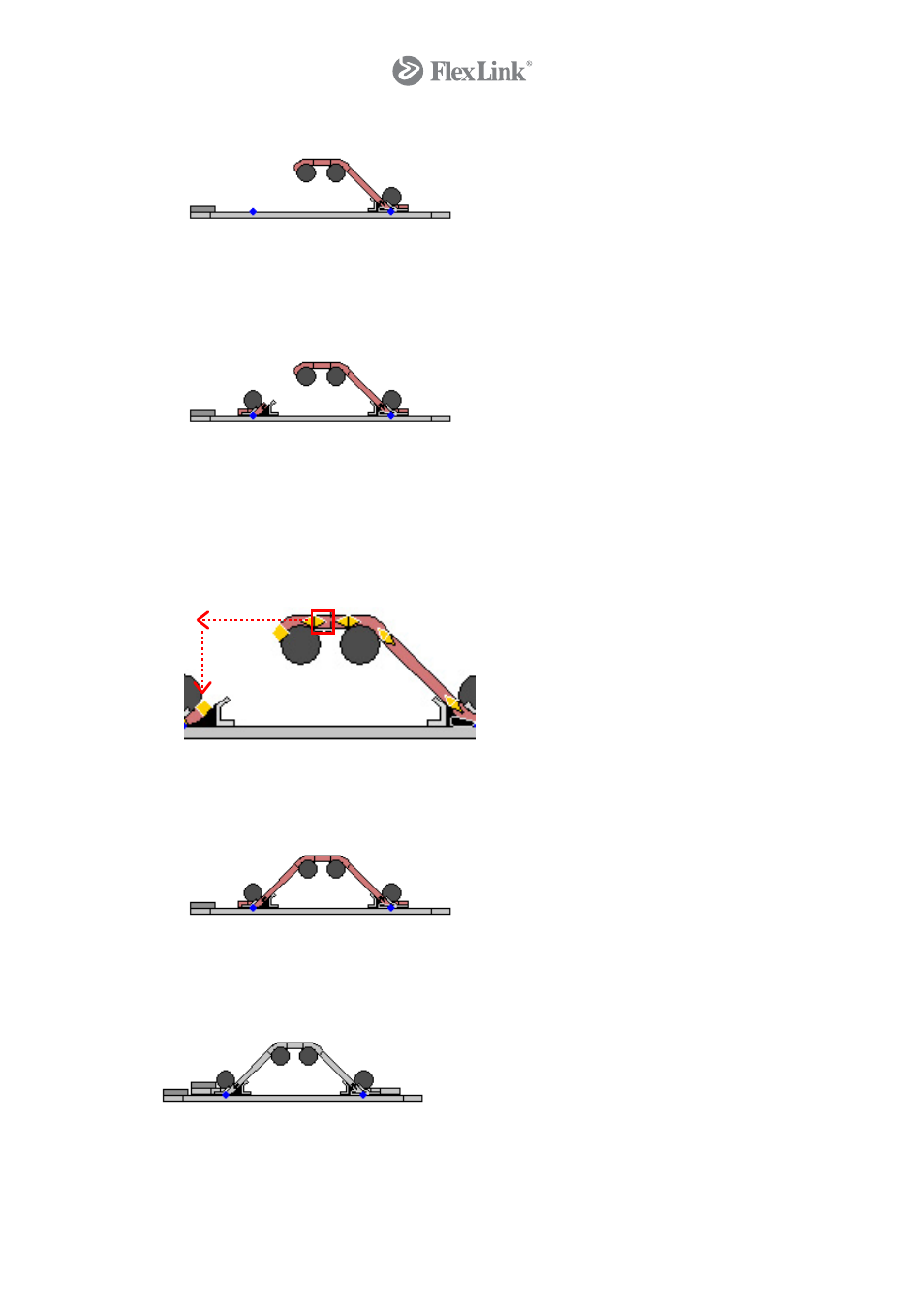

10. Select the Merge component. Move the mouse pointer close to the second reference
point and point with the arrow exactly to the blue point and click. Determine a 45-
degree angle by moving the mouse pointer in a horizontal direction towards the idler.
11. To close the system, you need to adjust the length of the beam placed between the
two upper wheel bends. Configura will help you find the right length. Select the
system, so that the yellow snap points are shown. Stretch the middle beam by clicking
and dragging the yellow triangle next to the wheel bend (marked with a red square on
image below). First drag the beam horizontally and then vertically towards the merge
(see arrows on image below). The beam length will now be adjusted automatically.
Release the mouse button.
12. Select a final beam, snap it to the wheel bend and click. Move the mouse pointer to the
merge component until the two components snap and click again.
13. Add a drive unit and an idler to the subordinated conveyor. The system is now
complete.
14. Finally, add the pallets.
