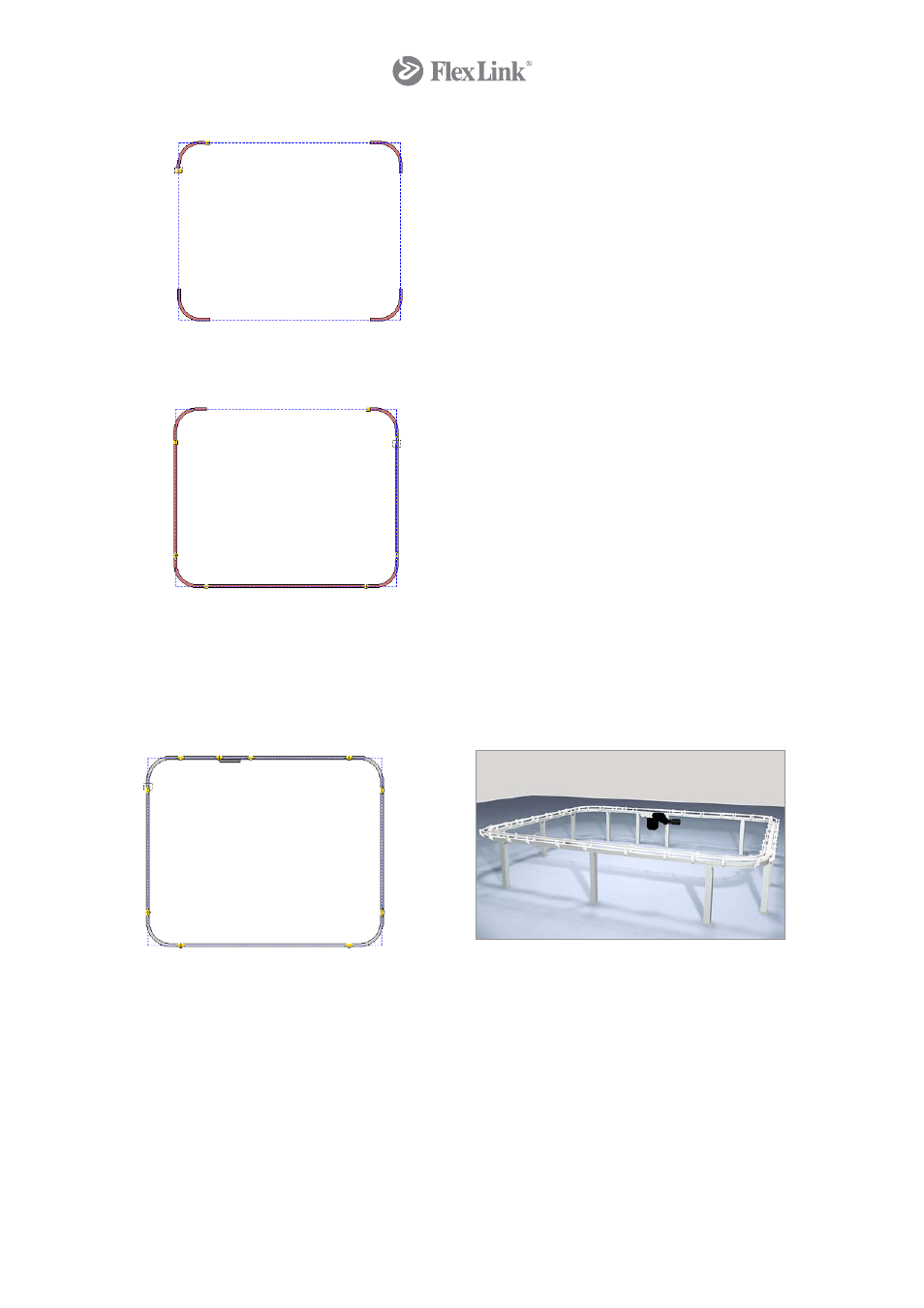

8. Now add Beams to the left, bottom and right side.
9. Add a beam in the upper left corner. Select a Catenary drive unit, 20 (m/min)
under Drive Unit - Type/Speed and place it to the right of the beam you just added.
Finally add a beam that covers the space to the right of the drive unit. Your system
turns gray, and is now completed. Add support and guide rails using the automatic
features as in Exercise 1 and render an image.
Layout in 2D Result in 3D
33
