EM Modules

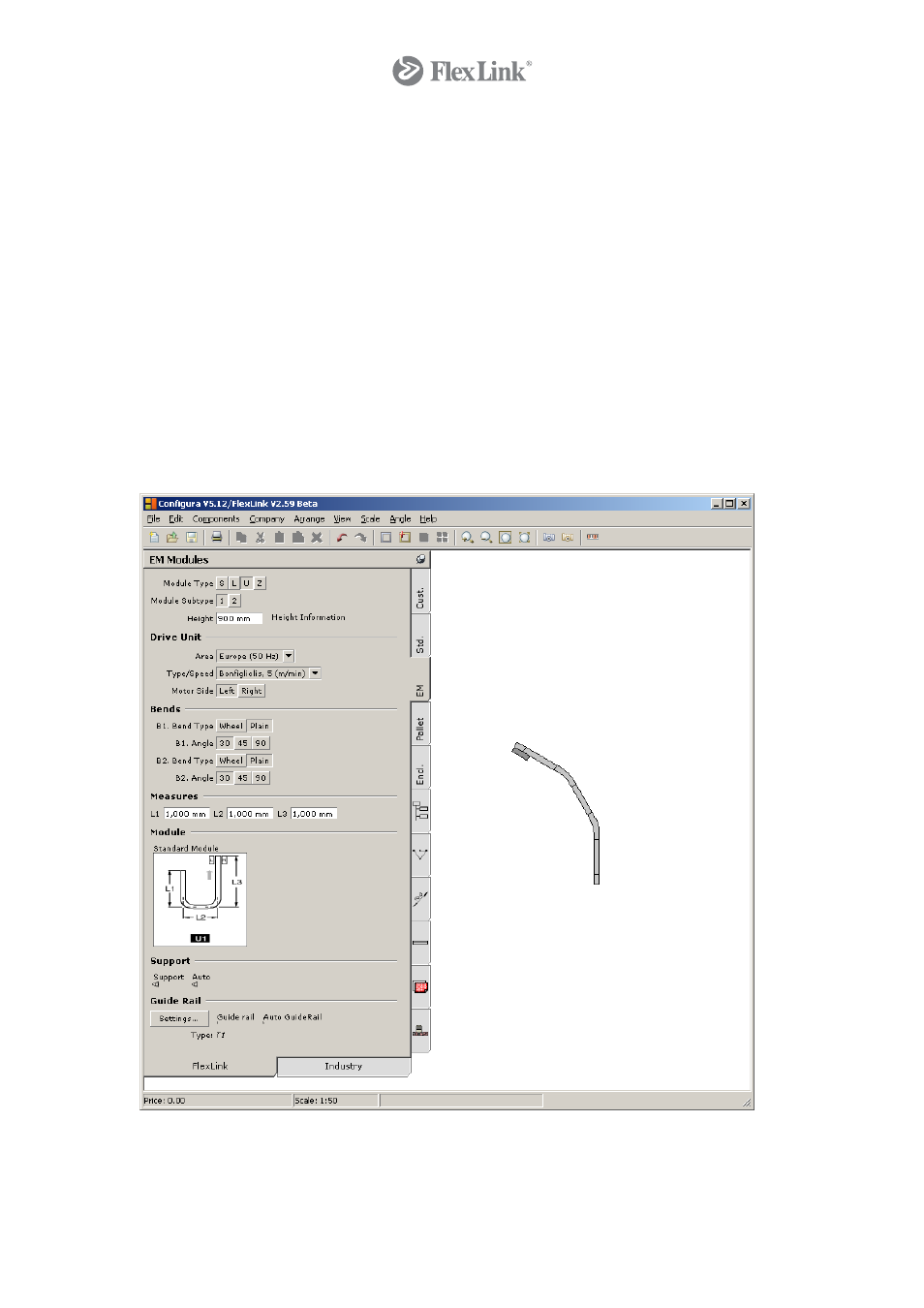

The EM Modules tab contains Flexlink’s EM conveyor systems. The layout and the settings
on the tab are similar to the Customized Conveyor tab. Apart from the module settings
made at the top, the tab is divided into six different sections: Drive Unit, Bends,
Measures, Module, Support and Guide Rail.
Instead of customizing the conveyor system from the start, here you pick a module from a
library with the most common standard conveyor modules (S, L, U and Z) for the EM
conveyor system.
To build an EM conveyor system, proceed as follows:
1. Select a module type at the top.
2. Do your pre-sets.
3. Move down to the Module heading. A picture of the selected conveyor system is
shown.
4. Click the picture and move the mouse pointer to the drawing area.
5. Click to position the conveyor.
6. Add support and guide rails.
Note:
When selecting Module Type or Subtype, the picture is updated directly. However, other
changes, such as Motor Side, Bend Type, are not visible until the module is actually
placed on the drawing surface. At this stage, supports and guide rails should be put out in
the usual way.
