Rigging and Lifting Procedures
Rigging
Each module should be lifted using lift straps threaded through the steel base cutouts and a spreader bar .
Note: If no spreader bar is used, damage to the module may occur.

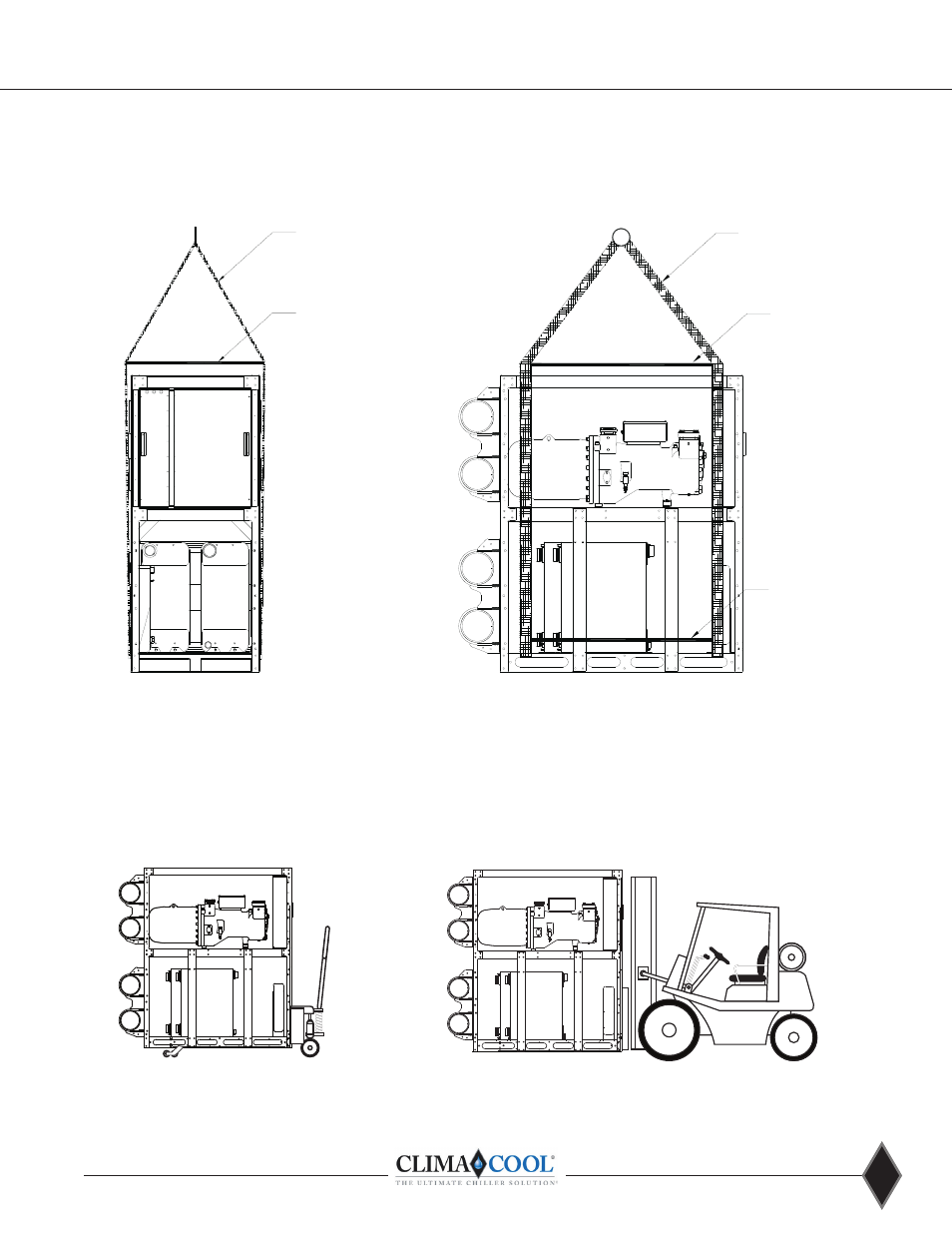

Figure 1 Figure 2
Figure 3
Lifting Strap Lifting Strap
Spreader Bar Spreader Bar
Spreader Bar
Lifting and Transporting Modules
Pallet jacks or forklifts are required for lifting and transporting the module . Each module has base cutouts provided
for ease of maneuverability . 60” forks are recommended to prevent damage to chiller base .
