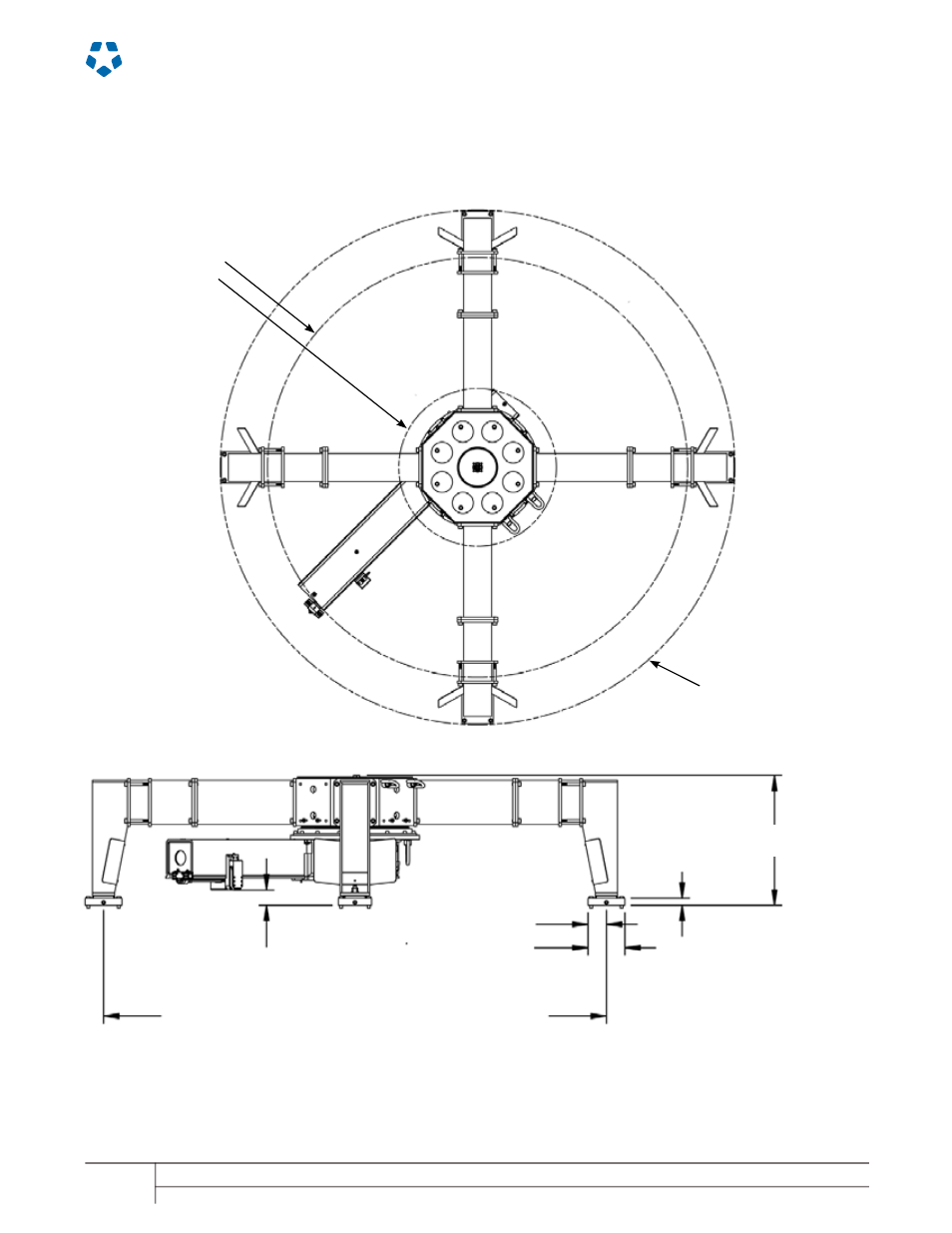

OperatiOnal DimensiOns

Dimensions in Inch (mm)

OD Chuck Assembly

Dim B

Dim B:

With tool head fully retracted

Turning arm, single point mach only:

4.2 (106.7)

Milling & turning arm:

4.2 (106.7)

(either milling or single point machining)
Milling & turning arm, grinding:

4.1 (104.1)

136.4 (3464.6) max, (89.8 (2280.9) min)

5.0 (127.0)

10.0 (254.0)

35.2 (894.1) for single-point machining

39.1 (993.1) for milling

1.9 (48.3)

Machining Diameter:

Max: Ø120.0 (3048.0)

Min: Ш45.0 (1143.0)

Ш147.0 (3733.8) clearance at

maximum machining
